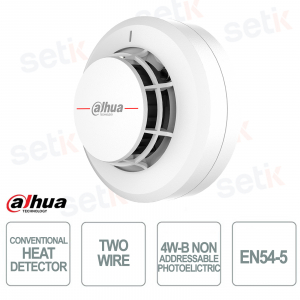

HY-C136 Conventional EN54-5 4W-B 2-Wire Heat Detector - Dahua

HY-C136 Conventional EN54-5 4W-B 2-Wire Heat Detector - Dahua

 
-56%

HY-C136 - The conventional heat detector is designed to ensure reliable fire detection thanks to the highly sensitive A2R thermal sensor, capable of monitoring abnormal temperature changes and quickly triggering the alarm. The 2-wire, non-polarity 4W-B technology simplifies installation and improves compatibility with conventional fire control panels and remote LED indicators. Featuring a non-addressable plug-and-play structure, it offers immediate configuration and simplified maintenance, while the acid- and corrosion-resistant materials ensure a long life. Compliant with the EN54-5 standard, it is ideal for hotels, offices, schools, warehouses and industrial environments. Dahua

Technical Data Sheet

Artikel-Nr.: HY-C136

Marke: Dahua

EAN: 6939554929830

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

HY-C136 | TRADITIONAL HEAT DETECTOR

Dahua

The Dahua HY-C136 conventional heat detector is designed to provide reliable fire protection thanks to the highly sensitive A2R thermal sensor, capable of rapidly detecting abnormal temperature increases and promptly triggering the alarm. The 2-wire, non-polarity 4W-B technology simplifies wiring and ensures compatibility with conventional fire alarm control panels and remote LED indicators. Featuring a non-addressable plug-and-play structure, it offers immediate installation and simplified maintenance, while the acid- and corrosion-resistant materials ensure high durability. Compliant with the EN54-5 standard, it is ideal for hotels, offices, schools, libraries, warehouses and industrial environments.

Main specifications:

- 4W-B photoelectric thermal detector with high sensitivity A2R sensor

- 2-wire technology without polarity for quick and easy installation

- Compatibility with LED remote indicators and conventional control units

- Non-addressable plug-and-play design for instant setup

- Dynamic temperature sensing from 1 to 30 K/min for effective fire response

- Acid and corrosion resistant materials for long operating life

- EN54-5 compliant certified for professional fire protection systems

Further details

✅ Thermal detector:
Conventional 4W-B thermal detector designed to constantly monitor temperature changes and quickly detect the beginnings of fires thanks to the highly sensitive A2R thermal sensor.
✅ 2-wire technology:
2-wire, polarity-free technology simplifies wiring and speeds up installation, ensuring greater convenience and compatibility with modern conventional fire alarm systems.
✅ Compatibility:
Compatibility with conventional fire control panels and remote LED indicators for seamless integration into security systems for residential, commercial and industrial environments.
✅ Plug-and-play structure:
Non-addressable plug-and-play design ideal for quick installations and immediate configurations without the need for address coding, simplifying system maintenance and management.
✅ EN54-5 compliant:
EN54-5 compliant certified to European fire safety standards, ensuring operational reliability, high performance and continuous protection in any professional environment.

Technical data sheet

HY-C136
Technical Specification
Protection Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Remote Indicator Support
Working Principle Heat detection
Sensor Class A2R
Fixed Detection Threshold 62°C ± 3°C (144°F ± 37.4°F)
Dynamic Detection 1 to 30 K min-1
Alarm mode Indicator light alarm
Operating Voltage DC 24V
Operating Current Static current: ≤ 55μA
Alarm current: ≤ 25mA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 102 g (0.22 lb)
Installation Ceiling Mount
Certification EN 54-5
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
