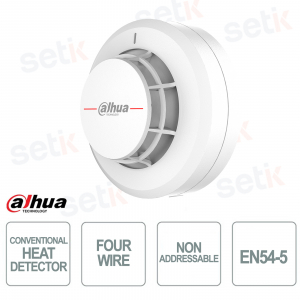

HY-C136-RE 4-Wire EN54-5 Thermal Detector with Integrated Relay - Dahua

HY-C136-RE 4-Wire EN54-5 Thermal Detector with Integrated Relay - Dahua

-56%

HY-C136-RE - The conventional heat detector is designed to provide reliable fire protection thanks to the highly sensitive A2R thermal sensor and 4-wire technology with integrated relay output . The device analyzes temperature changes in real time using an intelligent algorithm, quickly triggering the alarm signal in the event of a fire. The non-addressable plug-and-play design simplifies installation and configuration, while the acid- and corrosion-resistant materials ensure long-lasting reliability. Compliant with the EN54-5 standard, it is ideal for hotels, offices, schools, warehouses, archives and industrial environments. Dahua

Technical Data Sheet

Artikel-Nr.: HY-C136-RE

Marke: Dahua

EAN: 6939554929700

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


HY-C136-RE | TRADITIONAL HEAT DETECTOR

Dahua

The Dahua HY-C136-RE conventional heat detector is designed to provide reliable fire protection thanks to the highly sensitive A2R thermal sensor and 4-wire technology with built-in relay output . The device analyzes temperature changes in real time using an intelligent algorithm, quickly triggering the alarm signal in the event of a fire. The non-addressable plug-and-play design simplifies installation and configuration, while acid- and corrosion-resistant materials ensure long-lasting reliability. Compliant with the EN54-5 standard, it is ideal for hotels, offices, schools, warehouses, archives and industrial environments.

Main specifications:

- Conventional 4-wire heat detector with high sensitivity A2R sensor

- Integrated relay output for advanced management of connected devices

- Intelligent thermal detection algorithm for rapid fire response

- Dynamic temperature sensing technology from 1 to 30 K/min

- Non-addressable plug-and-play design for easy installation and configuration

- Acid and corrosion resistant materials for longer life

- EN54-5 compliant certified for professional fire protection systems

Further details

Thermal detector:
Conventional 4-wire thermal detector designed to constantly monitor temperature changes and quickly detect fire outbreaks thanks to the highly sensitive A2R thermal sensor.
Relay output:
Integrated relay output ideal for advanced management of connected devices and for the automatic control of professional fire systems in the event of an alarm.
4-wire technology:
4-wire technology that ensures stable power supply, reliable communication and perfect integration with conventional fire control panels in residential and industrial environments.
Intelligent algorithm:
Intelligent thermal analysis algorithm capable of processing data transmitted by the temperature sensor in real time, improving the accuracy and speed of fire detection.
Plug-and-play structure:
Non-addressable plug-and-play design designed for easy installation, instant configuration, and rapid debugging without address coding.
EN54-5 compliant:
EN54-5 compliant certified to European fire safety standards, ensuring operational reliability, high performance and continuous protection in any professional environment.

Technical data sheet

HY-C136-RE
Technical Specification
Protection Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Working Principle Heat detection
Relay Out Yes
Sensor Class A2R
Fixed Detection Threshold 62°C ± 3°C (144°F ± 37.4°F)
Dynamic Detection 1 to 30 K min-1
Alarm mode Indicator light alarm
Operating Voltage DC 24V
Operating Current Static current: ≤ 60μA
Alarm current: ≤ 20mA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 102 g (0.22 lb)
Installation Ceiling Mount
Certification EN 54-5
