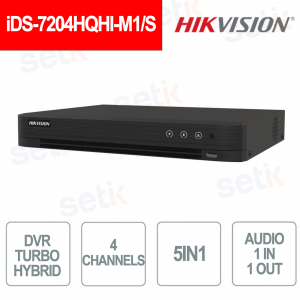

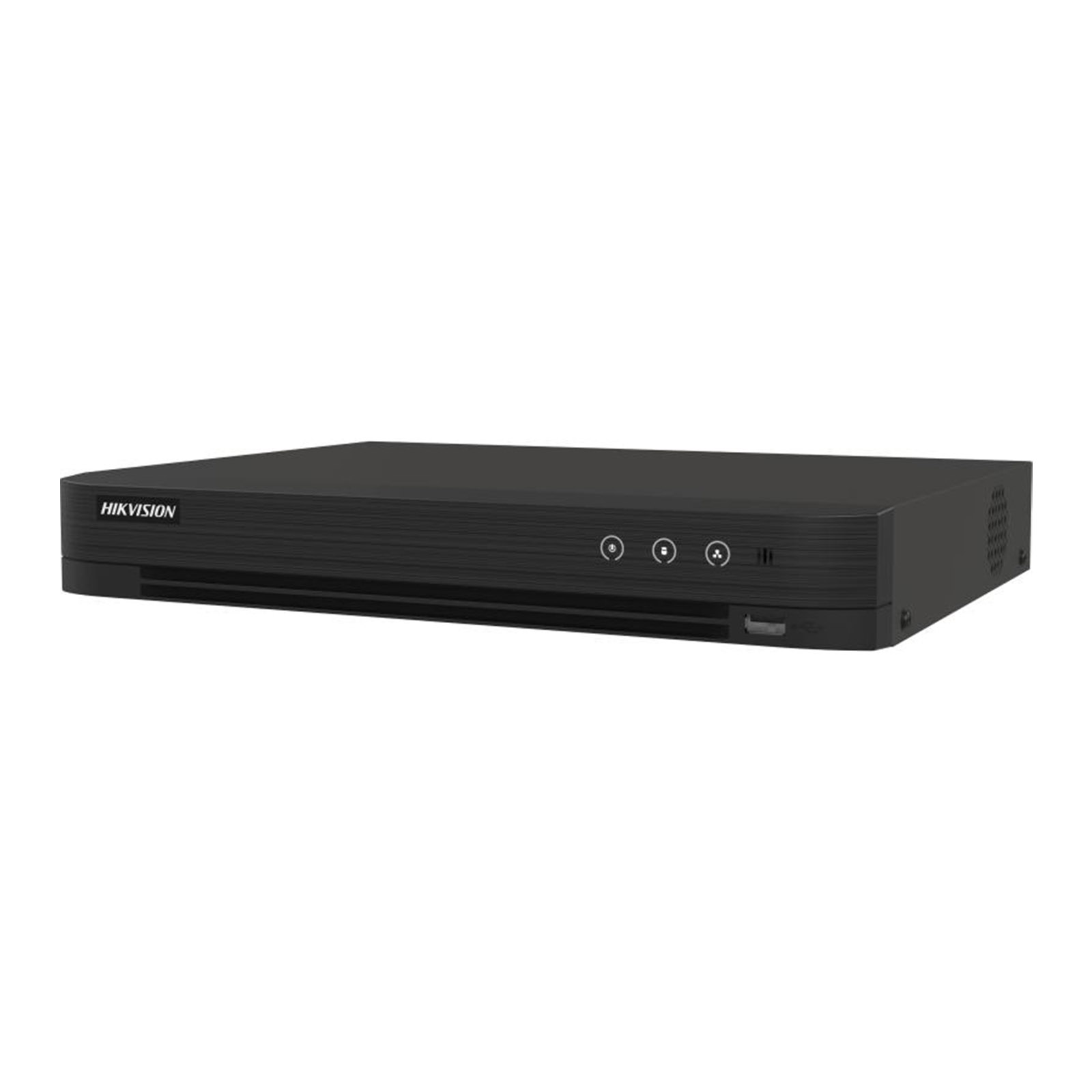

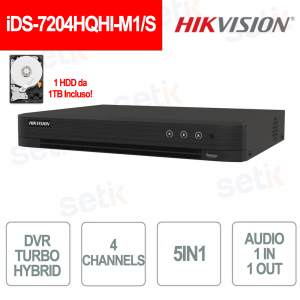

iDS-7204HQHI-M1/S - Hikvision DVR - 5in1 - 4 channels IP 6MP - Face detection

iDS-7204HQHI-M1/S - Hikvision DVR - 5in1 - 4 channels IP 6MP - Face detection
BEST PRICE -35% Neu

Hikvision DS -7204HQHI-M1/S 4 Channel IP DVR up to 6MP - 4 analog channels - 5in1 - Video compression up to H.265+, HDMI (2K), VGA (FullHD), 2 USB (2x 2.0), 1 audio input + 1 audio output. Video Analysis, Intrusion Detection, Facial Detection, Line Crossing Detection, Smart Search, Hik-Connect Application. - Includes 10TB HDD



Artikel-Nr.: iDS-7204HQHI-M1/S

Marke: Hikvision

EAN: 6941264090786

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


iDS-7204HQHI-M1/S | HIKVISION 4 CHANNEL IP DVR 6MP - 4 ANALOG CHANNELS - 5IN1 - FACE DETECTION - H.265+ AUDIO

Made by Hikvision
Nvr Hikvision iDS-7204HQHI-M1/S 4 IP Channels + 4 Analog Channels - 5in1
4 IP channels up to 6MP - 4 analog channels - 1 HDMI (2K) - 1 VGA (Full HD) - 2 USB (2x 2.0) -
up to 1 10TB SATA HDD - 1 Audio Input and 1 Audio Output - Video Analysis, Facial Detection, Intrusion Detection, Line Crossing Detection, Smart Search, Hik-Connect Application - 24 Month Warranty
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD Technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition viewing. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows savings of up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.



iDS-7204HQHI-M1-S

4 IP CHANNELS AND 4 ANALOG CHANNELS:

4 Channels up to 6 Megapixels

5IN1:

This DVR integrates 5 technologies in one product.

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.

H.265+ VIDEO COMPRESSION:

H.265+ is the optimized implementation of the H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces the bit rate and storage requirements compared to standard H.265 compression.
Video compressione Smart H.265+

SMART FEATURE-SET - VIDEO ANALYSIS:
Behavior Analysis:
- Face Detection

- Line crossing detection
- Intrusion
SMART SEARCH:
This feature allows you to quickly obtain various motion videos by simply drawing an area during playback. Very useful in case you encounter an emergency.

Smart Search Banner

HIK-CONNECT

Hik Connect allows you to control the device remotely

RJ45:

1x RJ-45 (10/100/1000Mbps)

HDMI and VGA output(full-hd):

It features 1 HDMI output with resolution up to 2K and 1 VGA output up to 1080p!

USB:

2 × USB 2.0

Audio

This DVR features 1 audio input + 1 audio output

Technical data sheet

iDS-7204HQHI-M1/S
Facial Detection
Facial Detection and Capture Face picture detection, face picture search
Perimeter Protection
Human/Vehicle Analysis up to 2-ch
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 1080p Lite mode is not enabled: 4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled: 4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate 32Kbps to 6Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bitrate 64Kbps
Video and Audio
IP Video Input 1-ch (up to 5-ch) Up to 6 MP resolution Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI input 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS7216HQHI-M1/S.
AHD input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network
Total Bandwidth 72 Mbps
Remote Connections 32
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF®
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half duplex)
USB interface 2 × USB 2.0
Alarm in/out N/A
General
Power Supply 12VDC, 1.5A

Consumption (without HDD) ≤ 18W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD) ? 1.16 kg (2.6 lb)

Further details

DS-7204HUHI-M1-S-A

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
