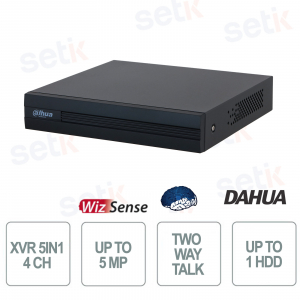

XVR1B04H-I | WIZSENSE 4CH PENTA-BRID 5MP VALUE/1080P COOPER 1U 1HDD DIGITAL VIDEO RECORDER


Dahua

The XVR1B04H-I is a 4-channel penta-brid digital video recorder with support for up to 5MP, designed for advanced security and intelligent data management. Equipped with WizSense technology with AI and a deep learning algorithm, it integrates SMD Plus functions to distinguish people and vehicles, reducing false alarms. It supports up to 6-channel HDCVI, AHD, TVI, CVBS, and IP video inputs, with H.265+ AI Coding compression that optimizes bandwidth and storage space. It offers smart features such as intelligent Dual Light, customizable audio, Audio over Coax, and SATA disk storage up to 16TB, representing a compact, versatile, and reliable solution for residential and commercial surveillance systems.

Main specifications:

- 4 channels penta-brid up to 5MP

- SMD Plus with AI for people and vehicle detection

- Support up to 6 IP channels (32 Mbps)

- Smart H.265+ and AI Coding for storage savings

- Smart Dual Light and customizable audio

- HDD storage up to 16TB

Further details

Number of Channels:
It supports up to 4 analog channels with the possibility of extending up to 6 IP channels , ideal for small and medium installations.
Maximum resolution :
Compatible with cameras up to 5MP and 1080p HDMI/VGA video output , ensuring sharp and detailed images .
WizSense Technology:
It integrates deep learning algorithms for advanced analytics, false alarm reduction, and accurate detection of people and vehicles.
SMD (Smart Motion Detection):
It filters out movements caused by rain, leaves or changes in light, ensuring more accurate and reliable alerts.
Audio and Video:
Supports HDCVI, AHD, TVI, CVBS and IP inputs, with AI Coding H.265+ compression that reduces bandwidth and storage consumption by up to 50% while maintaining clear details.
Alarm:
It manages general alarms (motion, PIR, network, disk abnormality) and SMD-based intelligent alarms, with customizable notifications and integrated audio.
Disk capacity:
It features 1 SATA interface with support for up to 16TB , allowing for long recording time.
XVR1B04H-I dimensions

Technical data sheet

XVR1B04H-I

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 6 channels of IPC access
2 IP channels by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.

0.55 kg (1.21 lb)

Gross Weight

1.02 kg (2.25 lb)

Product Dimensions

197.0 mm × 203.1 mm × 41.5 mm (7.76" × 8.00" × 1.63") (W × D × H)

Packaging Dimensions

332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
FCC: 47 CFR Part 15, Subpart B

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
