XVR5108H-I3-8P | XVR 4 CHANNELS ONVIF® POC DAHUA - 5MP - H.265+ - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua XVR5108H-I3-8P video recorder is an 8-channel penta-brid DVR with support for up to 5MP, designed for professional surveillance systems. Thanks to WizSense technology with integrated AI, it offers advanced features such as Face Recognition, perimeter protection, and SMD Plus to accurately distinguish people and vehicles, reducing false alarms. It supports up to 12 IP channels, Smart H.265+ compression, and QuickPick 2.0 for quick and efficient searches, with PoC technology for simplifying installation.

Main specifications:

- 8 analog channels + up to 12 IP channels (64 Mbps)

- Resolution up to 5MP with Smart H.265+ compression

- Face Recognition with database of up to 10,000 images

- Perimeter protection with advanced AI detection

- SMD Plus to distinguish people and vehicles

- QuickPick 2.0 for quick event search

- PoC technology for power and video on a single cable

- Built-in WizSense AI

Further details

Number of Channels :
It supports 8 analog channels and up to 12 IP channels , with input bandwidth up to 64 Mbps, offering flexibility and power for medium and large video surveillance systems.
Resolution:
Compatible with cameras up to 5MP , it guarantees clear and smooth images, with Smart H.265+ compression that significantly reduces bandwidth and storage while maintaining high video quality.

Face Recognition:
It integrates facial recognition function with a database of up to 10,000 images , allowing rapid and secure identification for professional applications.
Perimeter Protection:
Detects intrusions and line crossings with advanced AI algorithms, filtering out false alarms caused by animals or environmental conditions for more reliable security.
SMD Plus:
Enables intelligent detection by distinguishing between humans and vehicles, minimizing false alarms and improving surveillance efficiency.
QuickPick 2.0 :
Advanced quick search feature identifies details such as clothing and vehicles, speeding up analysis and retrieval of records.
PoC (Power over Coax):
It powers cameras and transmits video signals via a single coaxial cable, simplifying installation and reducing wiring time and costs.
WizSense Technology:
Powered by AI with deep learning, it delivers intelligent and precise functions, focusing on people and vehicles to provide an advanced and reliable video surveillance system.

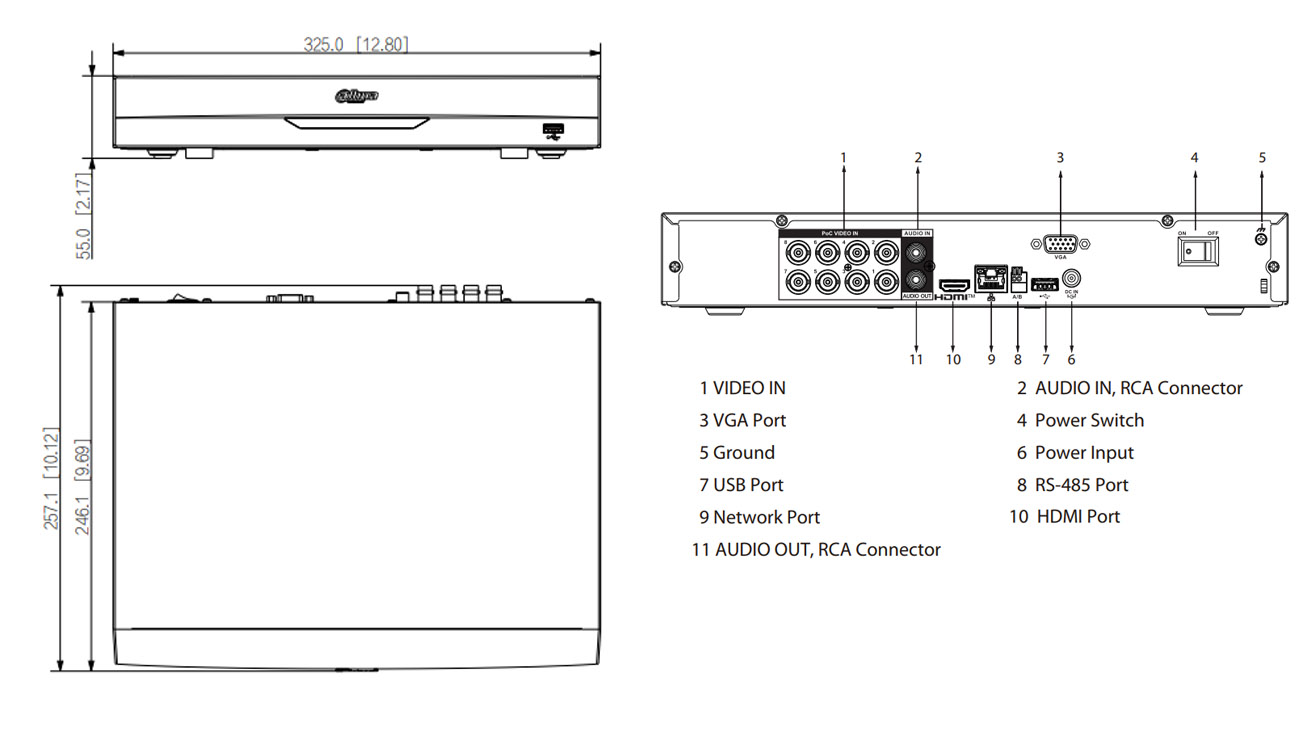

XVR5108H-I3-8P dimensions

Technical data sheet

XVR5108H-I3-8P

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

QuickPick 2.0

QuickPick 2.0 AI by Recorder (Number of Channels)

2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Mode: 2 channels, 10 IVS rules for each channel
General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 8 face images/s each channel)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

1 channel

SMD

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus

SMD by Camera

12 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio and Video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 12 channels of IPC access
4 IP channels by default +4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encoding Capacity

Encode Enhancement disabled:
Main stream:
Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps)
4-ch 4M-N/1080p@(1fps–25fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps)
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output 1 HDMI, 1 VGA
HDMI: 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm

Anomaly Alarm

Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail

Port

Audio Input

1-channel RCA (external)
8-channel BNC (coaxial audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

Alarm Output

8 channels (1-channel 12V 1A output)

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1(10/100Mbps Ethernet port, RJ-45)

General

Power Supply

53 VDC, 1.812 A

Power Consumption

Net Weight

1.60 kg (3.53 lb)

Gross Weight

2.19 kg (4.83 lb)

Product Dimensions

325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)

Packaging Dimensions

372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Desktop

Certifications

CE: CE-LVD: EN 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
