The NVR1108HS-P-S3/H is a compact 8-channel NVR with support for up to 1080p, ideal for residential and commercial video surveillance solutions. Thanks to Smart H.265+/H.264+ compression, it reduces bandwidth and storage consumption while maintaining high video quality. It supports ONVIF and RTSP protocols, ensuring compatibility with major IP camera brands. It integrates VGA and HDMI video outputs up to 1080p, a simplified 4.0 user interface, and remote management from mobile devices via P2P. With up to 8TB of HDD and advanced security features, it represents a reliable, economical, and high-performance solution for small surveillance systems. Dahua
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
NVR1108HS-P-S3/H | 8 CHANNEL IP ONVIF® DAHUA NVR - H.265+ - UP TO 8 MEGAPIXELS

The Dahua NVR1108HS-S3/H network video recorder is a compact 8-channel NVR with support for up to 1080p, designed for small residential and commercial surveillance systems. Thanks to advanced Smart H.265+/H.264+ compression, it significantly reduces bandwidth and storage consumption while maintaining high video quality. It features a 4.0 user interface, remote management via P2P, and compatibility with ONVIF and RTSP protocols for easy integration with IP cameras from various brands.
Main specifications:
- 8 video channels with resolution up to 1080p@30fps
- Smart H.265+/H.264+ compression for storage savings
- Simultaneous HDMI/VGA video outputs up to 1080p
- ONVIF and RTSP compatibility with third-party IP cameras
- Remote management from iOS/Android smartphones (P2P)
- 1 SATA HDD slot up to 8TB
Further details
✅ Decoding:

Technical data sheet
NVR1108HS-P-S3/H | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1–ch@8MP (30 fps) or 1–ch@5MP (30 fps) or |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Non-motor Vehicle Attributes |
1 VGA/1 HDMI simultaneous video output, maximum resolution 1080p |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
1/4/8/9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Party Camera Access |
Onvif; RTSP; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
PCM; G711A; G711U; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iDMSS (iOS); gDMSS (Android) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (profile T/profile S/profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE9 or above; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
Up to 8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Local HDD and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup |
USB device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Video recording, snapshot, log, preset, tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
External Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD |
1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
1 front USB 2.0 port, 1 rear USB 2.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 × RJ-45 (10 or 100 Mbps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RCA Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RCA Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC, 1.5A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Total output of NVR is ≤ 10W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.81 kg (1.79 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.38 kg (3.04 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

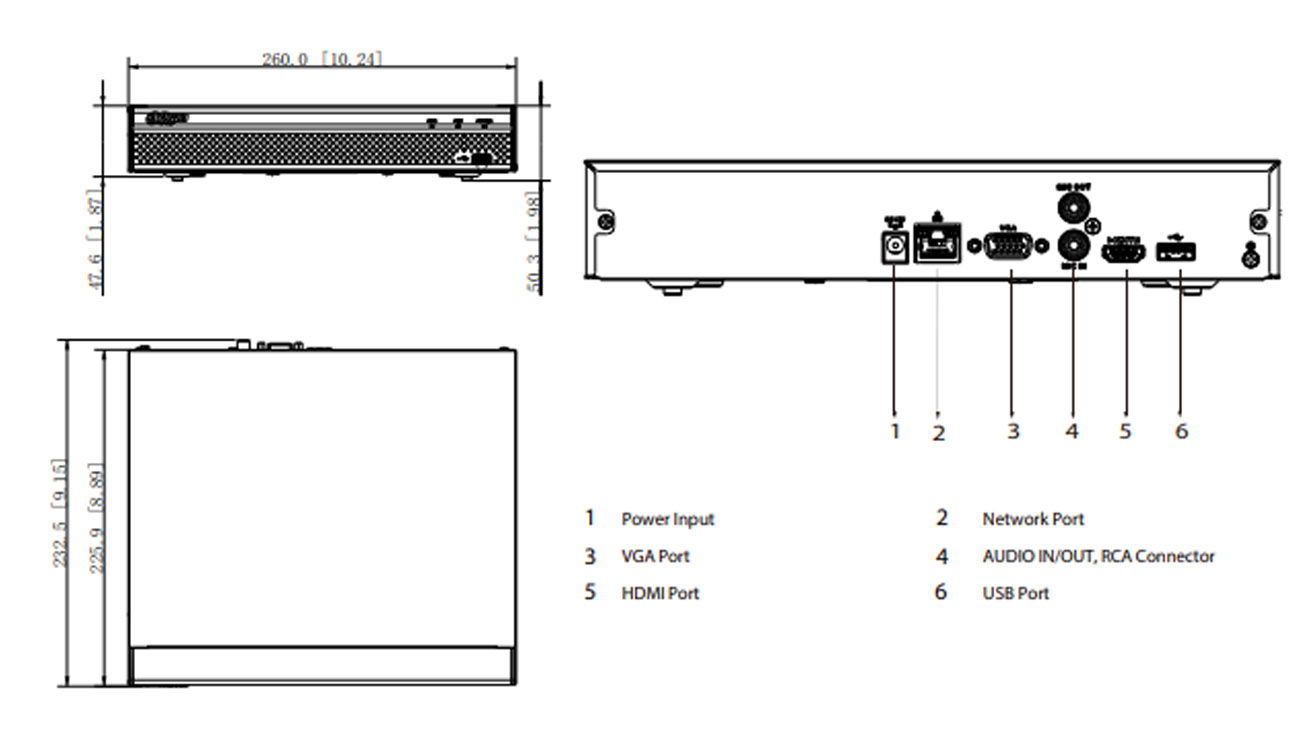

Product Dimensions |
260mm × 225mm × 47.6mm (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
87mm × 331mm × 312mm (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10°C to 45°C (+34°F to +113°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
0°C to 40°C (+32°F to +104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
30%–85% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
3,000 m (9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE/FCC |
