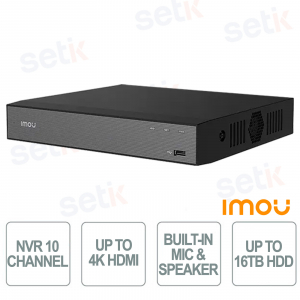

IMOU N110 10-Channel H.265 4K UHD NVR with Two-Way Audio, HDMI/VGA, and HDD Support up to 16TB

IMOU N110 10-Channel H.265 4K UHD NVR with Two-Way Audio, HDMI/VGA, and HDD Support up to 16TB
ANKÜNDIGUNGEN Neu

NVR-N110-8A0E-P-IMOU - The IMOU N110 NVR is a professional network recorder ideal for advanced video surveillance systems, designed to manage up to 10 IP channels ensuring stability and high performance. It supports H.265/H.264 compression with resolution up to 4K UHD , ensuring detailed images and optimizing storage space. Thanks to its built-in microphone and speaker, it allows two-way audio communication without additional devices. Automatic connection to IMOU cameras and ONVIF compatibility make it extremely flexible and easy to install. It offers HDMI and VGA outputs , remote management via the IMOU App , and HDD support up to 16 TB for extensive and secure data storage. Imou

Technical Data Sheet

Artikel-Nr.: NVR-N110-8A0E-P-IMOU

Marke: IMOU

EAN: 6937479642476

Disponibilità: 39

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou verwendet intelligente und leicht zu bedienende Technologien, die für die Sicherheit von Haushalten sowie kleinen und mittleren Unternehmen geschaffen wurden. Alle Systeme sind mit Alexa und Google Home kompatibel. Bitten Sie das Gerät einfach, die Bilder zu zeigen, um immer unter Kontrolle zu haben, was uns am meisten am Herzen liegt.

[short_description] =>


Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen, wie der offizielle Slogan "Enjoy Smart Life" verdeutlicht.

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2025-07-23 14:59:46 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => imou [meta_description] => Imou wurde mit dem Ziel gegründet, intelligente Lösungen anzubieten, die es jedem ermöglichen, ein komfortableres und sichereres Leben zu führen und den Alltag der Verbraucher zu vereinfachen [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


NVR-N110-8A0E-P-IMOU | 10 CHANNEL NVR N110 10 CHANNELS WITH 4K OUTPUT AND INTEGRATED AUDIO



The IMOU N110 NVR, NVR-N110-8A0E-P-IMOU, is a reliable and high-performance network recorder, designed for professional and residential IP video surveillance systems. It supports 10 NVR channels , allowing the simultaneous management of multiple cameras with H.265/H.264 video compression up to 4K UHD , ensuring high-definition images and high bandwidth and storage optimization. Equipped with a built-in microphone and speaker , it allows two-way audio without external devices, while automatic connection to IMOU cameras greatly simplifies installation. HDMI and VGA outputs , ONVIF compatibility, remote access via IMOU App and HDD support up to 16 TB make this NVR a complete, flexible and easily scalable solution.


Main specifications:

- 10-channel IP NVR

- H.265/H.264 video compression up to 4K UHD

- Two-way audio with built-in microphone and speaker

- Automatic connection to IMOU cameras

- ONVIF compatibility

- HDMI and VGA video outputs

- Supports SATA hard drives up to 16TB

- Remote management via IMOU App

Further details


Number of Channels:
The IMOU N110 NVR supports 10 IP channels , allowing centralized management of multiple video surveillance cameras for scalable systems, both in residential and professional settings.
Resolution:
Thanks to H.265/H.264 support up to 4K UHD , the system guarantees extremely sharp and detailed images, while optimizing network bandwidth and storage space.
Automatic Pairing:
The IMOU camera auto-pairing feature allows for quick and intuitive installation, reducing setup time and simplifying system startup.
Built-in Mic and Speaker:
The built-in microphone and speaker enable two-way audio communication , ideal for remote control and interaction without the use of external audio devices.
HDMI/VGA Output:
HDMI and VGA outputs ensure high compatibility with monitors and displays, offering clear and flexible real-time image viewing .

H.265 up to 4K UHD:
H.265 video compression up to 4K UHD allows you to store more data while maintaining higher video quality , improving overall system efficiency.
4-Channel Playback:
The system supports simultaneous playback of up to 4 channels , with intelligent playback functions for quick and effective analysis of recordings.
Mass Storage:
Support for up to 16TB SATA hard drives ensures extended data retention , ideal for continuous recording and long-term archiving
IMOU APP :
Integration with the IMOU App for iOS and Android allows remote management of the NVR , offering access to real-time video anywhere, anytime.
NVR-N110-8A0E-P-IMOU dimensions

Technical Data Sheet

Model NVR-N110-8A0E-P-IMOU
Video & Audio
Access Channel 10 channels
Network Bandwidth 90Mbps
Playback Decoding 4-channel 8MP@15fps
4-ch 5MP@30fps
Video Compression H.265/H.264
Audio Compression AAC
Backup File Format MP4
Live Display 1,4,8,9,10
Network
Wired Network 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Compatible APP IMOU APP (IOS&Android)
Third Party Agreement Onvif
General
Power Supply DC 12V 2A
Power Consumption <9W (with HDD Average Power)
<19W (with HDD Peak Power)
Working Temperature -10℃~+45℃
Working Humidity Less Than 95%RH
Dimensions (L×W×H) 227.5mm×260mm×45.0mm (Folded antenna)
Bare Weight 850g (Without HDD)
Certification THERE IS
External Interface
Video Output 1*VGA&1*HDMI
Audio Input 1*Microphone(Built-in)
Audio Output 1*Speaker(Built-in)
USB Interface 2*USB
Reset Button Yes
Network Interface 1 RJ–45 port (10/100 Mbps)
Special Features
IPC Connection Automatically connect to IMOU cameras
Smart Detection Motion / Person / Vehicle
Remote Upgrade Yes
Sound Channel Two-Way Audio
Storage
Hard Drive Capacity 1 SATA port, up to 16 TB
Backup Media USB Flash Drive
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
