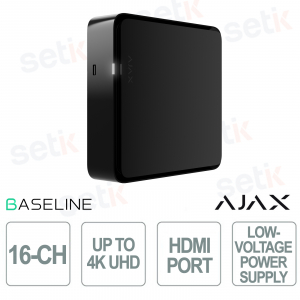

Ajax NVR HDC 16-Channel Black with HDMI Full HD, ONVIF Support, Storage up to 16TB and JetSparrow

Ajax NVR HDC 16-Channel Black with HDMI Full HD, ONVIF Support, Storage up to 16TB and JetSparrow
ANKÜNDIGUNGEN

140351.122.BL1 # 140351 | Ajax NVR HDC 16 Channel Black is a network video recorder designed to provide professional, secure and reliable video management within the Ajax ecosystem. It supports up to 16 IP cameras , ONVIF/RTSP protocol, hard disk storage up to 16 TB and encrypted video transmission using proprietary JetSparrow technology. Thanks to the Full HD HDMI output, 2 USB ports and RJ45 Ethernet connection, it ensures seamless local and remote monitoring, with high security standards, advanced authentication and intelligent control of events and alarms.

Technical Data Sheet

Artikel-Nr.: 140351.122.BL1

Marke: Ajax Systems

EAN: 4823114083860

Disponibilità: 3

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


140351.122.BL1 | 16-CHANNEL NETWORK VIDEO RECORDER WITH HDMI OUTPUT, WITH A LOW VOLTAGE POWER SOURCE


Ajax

The Ajax NVR HDC 16-Channel, 140351.122.BL1, Black is a professional network video recorder designed to integrate IP cameras and Ajax devices into a single video surveillance ecosystem. It supports up to 16 video channels , ONVIF and RTSP protocols, H.265/H.264 encoding, and SATA hard drive storage of up to 16 TB , ensuring high performance and maximum reliability. Thanks to proprietary JetSparrow technology, it offers fast and secure video transmission, local management via Full HD HDMI output , remote access from the Ajax app, and advanced security features to protect data and users.

Main specifications:

- 16 IP channels for simultaneous management of multiple cameras

- JetSparrow technology for fast, stable and encrypted video transmission

- ONVIF and RTSP support for compatibility with third-party cameras

- H.265/H.264 compression to optimize storage space and bandwidth

- Storage up to 16TB with 3.5" SATA hard drive support

- Full HD HDMI output for local monitoring on a dedicated screen

- 2 USB Type-A ports for mouse, keyboard and storage devices

- RJ45 Ethernet port for reliable network connection

- Integrated motion detection with intelligent event management

- Remote access via Ajax app with notifications and advanced recording search

- TLS encrypted video transmission and advanced authentication for maximum security

- Compact black design ideal for residential and professional installations

Further details

Number of Channels:
The Ajax HDC 16-Channel NVR supports the simultaneous management of up to 16 IP cameras , offering an ideal solution for homes, offices, shops and small businesses that need a centralized and efficient video surveillance system.
Resolution :
Thanks to the Full HD HDMI output, the video recorder allows clear and detailed viewing of real-time images and archived recordings, ensuring professional monitoring on dedicated monitors.
Decoding :
Support for H.265 and H.264 compression formats allows for reduced bandwidth consumption and storage space, while maintaining high video quality and optimizing the performance of the entire security system.
Intelligent Video Analysis:
The system integrates motion detection capabilities with area-of-interest configuration, enabling advanced event management and quick alarm verification through the Ajax ecosystem.
Interface:
Equipped with Full HD HDMI output , 2 USB Type-A ports for mouse, keyboard or external storage and an intuitive interface, the NVR guarantees a simple and professional local management experience.
Anti-sabotage protection:
The NVR integrates advanced security measures such as TLS encrypted video transmission , password-free authentication , multi-level account protection , digital signature verification of exported videos, and access control to ensure maximum protection against tampering attempts and unauthorized access.
Network:
Connectivity via RJ45 Ethernet port and support for ONVIF and RTSP protocols ensure seamless integration with Ajax IP cameras and third-party devices, offering maximum installation flexibility.
Power supply:
The 8-Channel HDC NVR version uses a low voltage 8–16V DC power supply, with power consumption up to 24W , ensuring operational efficiency and continuous reliability.
Anti-sabotage protection:
The NVR integrates advanced security measures such as TLS encrypted video transmission , password-free authentication , multi-level account protection , digital signature verification of exported videos, and access control to ensure maximum protection against tampering attempts and unauthorized access.

Technical data sheet

140351.122.BL1

Video Video input
16 channels
Recording resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution
1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px
Live view / playback resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding Format
H.265, H.264, JetSparrow
Capability
  • 1 × channel at 8MP
  • 3 × channels at 5MP
  • 4 × channels at 4MP
  • 4 × channels at 1080p
  • 10 × channels at 720p
  • 16 × channel at 1024 × 576 px
The width or height of the camera video resolution (each channel) cannot exceed 4096 pixels
Live view window division
templates: 1, 4, 9, 16, 25, 5+1, 7+1, 12+1 views
custom: up to 10×10 views
Synchronous playback
16 channels
Intelligent video analytics Motion detection
Ajax camera: 16 channels
NVR: 16 channels
NVR HAC features built-in software to detect movement in the frame. It is possible to switch between image analysis by NVR HAC or camera algorithms in an Ajax app
AI object detection
Ajax camera: 16 channels
Interface HDD
1 × SATA: supports hard drive with up to 16 TB capacity (3.5” form factor) HDD is not included.
Network
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
USB
rear panel: 1 × USB 2.0 (Type-A)
side panel: 1 × USB 2.0 (Type-A)
To connect a keyboard, mouse, or a USB flash drive.
Network Bandwidth
incoming: up to 80 Mbps
outgoing: up to 40 Mbps
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF
Key features Supported devices
  • Ajax cameras
  • IP cameras using ONVIF (Profile S/T) or RTSP
Built-in video monitoring software (VMS)
  • Integrated video wall interface with live camera feeds.
  • Smart event filters for quick access to relevant footage
  • Interactive timeline with preview navigation for efficient playback and incident review.
Visual verification of Ajax system alarms
NVR HAC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for immediate intrusion verification by the operator.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Recommendations The device operating voltage is 110–240 V~.
The device is designed for indoor installation only.
Power supply Without a jumper installed on the PSU board
  • 8–16 V⎓, up to 4 A
  • turn-on threshold: 8.1 V⎓ ±0.1 V⎓ (when voltage rises)
  • turn-off threshold: 6.8 V⎓ ±0.5 V⎓ (when voltage drops)
With a jumper installed on the PSU board
  • 12.4–16 V⎓, up to 4 A
  • turn-on threshold: 12.5 V⎓ ±0.1 V⎓ (when voltage rises)
  • turn-off threshold: 10.5 V⎓ ±0.4 V⎓ (when voltage drops)
Power consumption
up to 24 W
Clock battery
CR2032 battery, 3 V
Only to power the system clock
Sabotage protection Accelerometer
alerts on attempts to move or dismount the device
Enclosure Dimensions
212 × 212 × 64 mm
8.33″ × 8.33″ × 2.50″
Weight
752g
1.66 lb
Without a hard drive.
Operating temperature range
from 0 °C to +40 °C
from 32 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP20
Color Black
Complete set HDC NVR (16-ch)
SmartBracket mounting panel
Terminal adapter
Ethernet cable
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
