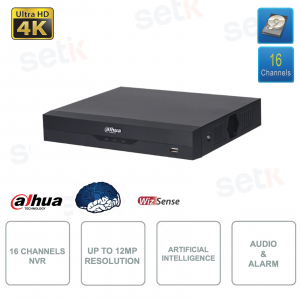

NVR2116HS-I2 | 16-CHANNEL IP NVR UP TO 12MP 4K ULTRA-HD WITH ARTIFICIAL INTELLIGENCE


Dahua

Dahua NVR2116HS-I2 is a compact 16-channel network video recorder (NVR), part of the WizSense series, designed to offer advanced AI capabilities in video surveillance. It supports up to 12 MP IP cameras and integrates technologies such as facial recognition, perimeter protection and SMD Plus function for intelligent detection of people and vehicles. Equipped with Smart H.265+ and H.264+ video compression, it ensures efficient storage space management. It has HDMI 4K and VGA video outputs, supports a SATA disk up to 10 TB and offers connectivity via Gigabit LAN port and two USB 2.0 ports.

Main specifications:

- Video Channels: Supports up to 16 IP channels with maximum resolution of 12MP, ensuring detailed surveillance.

- Integrated Artificial Intelligence: Includes advanced functions such as facial recognition, perimeter protection and intelligent motion detection (SMD Plus), improving the effectiveness of the security system.

- Decoding Performance: Up to 6 channels decoding capability at 1080p@30 fps, ensuring smooth image display

- Versatile Connectivity: Equipped with 4K HDMI and VGA video outputs, 2 USB 2.0 ports, 1 RCA audio input and output, and a Gigabit LAN port for easy integration into your existing system.

- Expandable Storage: Supports up to 10TB SATA hard drive, providing ample space for data recording.

- Compact design: 1U form factor, ideal for space-limited installations, with power consumption less than 10W without HDD.

Further details

8 IP Channels with 8 PoE Ports:
Allows direct connection and powering of up to 8 IP cameras, simplifying installation and reducing costs.
Support for Cameras up to 12MP:
Compatible with high resolution cameras, ensuring detailed and clear images.
Advanced AI Features :
Includes SMD Plus on 4 channels via the recorder and on 6 channels via the cameras, plus facial detection and recognition, perimeter protection, people counting, stereo analysis and heat map.

HDMI 4K and VGA Video Outputs:
It offers flexibility in display and system configuration, supporting resolutions up to 3840 × 2160 via HDMI.

Perimeter Protection:
Automatically filters out false alarms caused by animals, leaves or changes in light, improving the accuracy of notifications.
Facial Detection and Recognition:
It uses deep learning algorithms to identify and recognize human faces, improving the safety and efficiency of the system.

NVR2116HS-I2 dimensions

Technical data sheet

Model: DVR NVR2116HS-I2
SYSTEM
Main Processor Industrial-grade embedded processor
Operating System Embedded LINUX
Operating Interface Web, Local GUI
TO THE
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus
AI by Device Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance of AI by Device (Number of Channels) 1
Perimeter Performance of AI by Camera (Number of Channels) 4
Face Detection
Face Attributes 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection Performance of AI by Device (1080P) (Number of Channels) 1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels) 5
Face Recognition
Face Database Capacity Up to 10 face databases with 5,000 images
Face Detection Performance of AI by Device (1080P) (Number of Channels) 1 (up to 4 face images/second)
Face Recognition Performance of AI by Camera (Number of Channels) 5
SMD Plus
SMD Plus by Recorder 4
SMD Plus by Camera 6-channel SMD Plus (AI by camera): Detects tripwire and intrusion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away
Audio and Video
IP Camera Input 16 channels
Network Bandwidth AI off: Access: 144 Mbps; Storage: 144Mbps; Forward: 72Mbps
AI on: Access: 72 Mbps; Storage: 72Mbps; Forward: 36Mbps
Resolution 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; Q1
Decoding Capability

AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps

Video Output

1 × VGA, 1 × HDMI (simultaneous)

Multi-screen display 1, 4, 8, 9, 16 views
Third Party Camera Access ONVIF
Standard Compression
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression

PCM; G711A; G711U; G726

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration
Mobile Phone Access iOS; Android
Interoperability ONVIF (profile T; profile S; profile G); CGI; SDK
Browser Chrome; IE9 or later; Firefox
Recording Playback
Multi-channel Playback Up to 16 channels
Record Mode Manual record; alarm recordings; motion detection recordings; scheduled recordings
Storage Local HDD and network
Backup Method USB device
Playback Mode 1.Play; pauses; stop; fast forward; fastbackward; rewind; play by frame
2.Full screen; backup (video clips/files); partially zoom in; audio on/off
Alarm
General Alarm Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarm Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Smart Alarm Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
Alarm Linkage Recordings; snapshot; buzzers; log; presets; e-mail; tours
External Port
HDD 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature
USB 1×front USB2.0; 1 × USB2.0 back
HDMI 1 (max. resolution: 4K)
VGA 1
Network Port 1 × RJ-45, 10/100/1,000 Mbps
RCA Input

1

RCA Output 1
RCA Output 1
General
Power Supply 12V DC, 1.5A
Power Consumption Total output of NVR is ≤ 10W (without HDD)
Net Weight 0.81 kg (1.79 lb)
Gross Weight 1.38 kg (3.04 lb)
Product Dimensions

260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)

Packaging Dimensions 89 mm × 333 mm × 315 mm (3.50" × 13.11" × 12.40") (W × L × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop

Certifications

FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:2017

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
