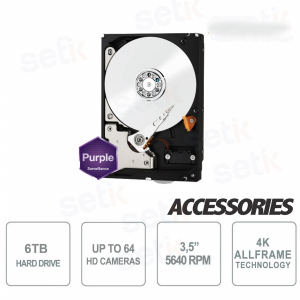

HD6TBVIDEO - New series of HD hard drives for video surveillance, the PURZ series , an evolution of the WD60PURZ! 6TB capacity , 3.5" size, 185 MB/s speed, 5640 RPM. Purple version. WD63PURZ - WD60PURZ can be delivered as an alternative depending on availability. High quality. Audio/Video specific, AV-GP, SATA. New AllFrame 4K technology for better disk performance. Western Digital - HD6TBVIDEO

Artikel-Nr.: HD6TBVIDEO

Marke: Western Digital

EAN: 0718037857077

Disponibilità: 3

Manufacturer Object ( [id] => 12 [name] => Western Digital [description] =>

Western Digital è uno dei leader in ambito Audio/video, setìk ne distribuisce tutta la gamma specifica per questo mercato identificata come AV-25 o AV-35.

[short_description] =>

Hard Disk Videosorveglianza

Western Digital è il principale produttore di Hard Disk per la videosorveglianza

[id_address] => [date_add] => 2012-07-14 15:16:50 [date_upd] => 2019-11-15 17:54:31 [link_rewrite] => western-digital [meta_title] => Western Digital Hard Disk AV [meta_keywords] => hard disk,dischi audio video,dischi AV,SV35,hard disk videosorveglianza [meta_description] => Western Digital, principale produttore di Hard Disk per Videosorveglianza [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DEPENDING ON AVAILABILITY, ALTERNATIVES CAN BE DELIVERED!

WD63PURZ | WD60PURZ

HD6TBVIDEO - WESTERN DIGITAL HARD DISK - 6TB SATA 3.5" AUDIO / VIDEO - ALLFRAME 4K

Western Digital
HD6TBVIDEO - Hard Disk - Western Digital Purple Series
Capacity: 6TB ; Size: 3.5"; Speed 185 MB/s; RPM 5640 - Evolution of the WD60PURZ
Up to 64 HD cameras - New PURZ series with AllFrame 4K technology!
Read the article about Purple's new albums. Click HERE

Box di giunzione JBOXZ compatibile con telecamere setik BLHYB2MZ-PRO DMHYB2MZ-PRO

ATTENTION:

Western Digital Purple series hard drives may be delivered with dual coding ( with an X or Z at the end ), depending on whether the supply comes from Western Digital's European warehouses or from China. However, the two products are equivalent in all respects in terms of features. To find out more, click here .

Product details


From the purx series to the purz - 4K ALLFRAME ™ TECHNOLOGY

Improve performance with AllFrame technology

WD Purple surveillance hard drives feature new AllFrame 4K technology, which works with ATA streaming to reduce frame drops, improve playback, and increase the number of supported drive bays. AllFrame reduces video interruptions that occur when desktop hard drives are misused as security system storage. Dropped frames and lost images are a serious problem when an event occurs and you need to recover footage. WD Purple with AllFrame gives you the security you need and expect when reviewing surveillance footage.

Key Benefits:

- Reduces frame loss with video surveillance storage
- It is specially developed for use with security systems
- Caching algorithms are specifically developed for write-intensive, low bit rate, high throughput applications, typical of video surveillance systems
- Change the priority for write allocations and preemptive cache policies
- Supports TLER and ATA streaming
- Supports more than 8 drives

  • Western Digital HD6TBVIDEO Purple Surveillance Hard Drive
  • 6 TB Capacity - Evolution of the WD60PURZ
  • Supports up to 64 HD cameras
  • AllFrame 4K technology
  • Optimized workload rate
  • Wide compatibility. Seamless integration.
  • Multiple recording streams across multiple cameras
  • 24H 7DAY Certified with 3 Years Direct WD Warranty
  • Operation up to 70° (over 30% higher than common hard disks)

Technical data sheet

Model HD6TBVIDEO
Formatted Capacity 6 TB
Form factor 3.5-inch
Advanced Format (AF) Yes
RoHS Compliant Yes
Product Features
Cameras Supported Up to 64
Maximum drive bays supported 16
Firmware AllFrame 4K
Tarnish-resistant components Yes
Performance

Interface Transfer rate (max)5

Buffer to host

Host to/from drive (sustained)


6 Gb/s

185 MB/s
Cache (MB) 128
Performance Class 5640 RPM Class
Reliability/Data Integrity
Load/Unload Cycles 300,000
Annualized workload rating 180TB/yr
Non-recoverable read errors per bits read <10 in="" 10="" 14="" td="">
Limited warranty (years)/8 3
Power Management

Average power requirements (W)

Read/Write

Idle

Standby and Sleep

6.2

5.5

0.4
Environmental Specifications
Temperatures (°C, on the base casting)
Operating
Not Operating

0 to 65
-40 to 70
Shock (Gs)
Operating (2 ms, read/write)
Operating (2 ms, read)
Non-operating (2 ms)
30
65
250
Acoustics (dBA)
Idle
Seek (average)
25
30
Physical Dimensions
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.58/0.72

Further details

WD Setik has chosen Western Digital as its official supplier of audio/video drives. A 3-year warranty and direct replacement are available from the manufacturer.

In case of defect you can open an RMA directly on the WD website, direct replacement!

Setik OFFERS you the hard drive mounting!
By purchasing one of our hard drives in addition to a video recorder, the latter will be mounted on the video recorder for FREE!

Intellipower Intellipower technology. Variable speed based on received data. Up to 40% reduction in consumption.
Recording in H264 25fps - 24 Hours of Continuous Recording - Values in GIGABYTE
Cameras CIF D1 720p 1080p 4MP
4 8.8 26.4 62 132.8 353.9
8 17.6 52.8 124 265.6 707.8
16 35.2 105.6 248 531.2 1415.6
32 70.4 211.2 496 1062.4 2831.2
64 141 580.4 1316.5 2972.7 5662.3
