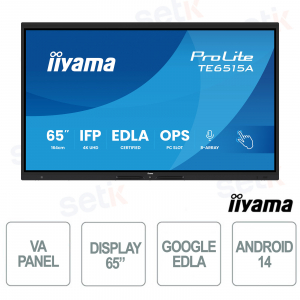

TE6515A-B2AG 65" 4K UHD, Google EDLA, Android 14, 40-point Touch, WiFi-6E for School and Business - iiyama
The iiyama ProLite TE6515A-B2AG 65" interactive display offers advanced performance for collaboration and education thanks to 4K UHD resolution and an optically bonded panel with brightness of up to 550 cd/m² , which guarantees sharp images and a high-quality viewing experience. DeepContrast-IR++ technology with up to 40 touch points and Palm Rejection ensures smooth writing and precise on-screen interaction. Equipped with Android 14 with iiWare 21E platform certified by Google EDLA , it allows direct access to Google apps, cloud tools and Microsoft 365. Advanced connectivity with WiFi-6E, Bluetooth 5.0, USB-C and HDMI , together with iiControl DMS remote management and wireless sharing via iiShare and EShare , makes it ideal for classrooms and collaborative business environments .
TE6515A-B2AG – MONITOR VA 65" 4K UHD IIYAMA PROLITE - DEEPCONTRAST IR++ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY - PEN-PICKUP-SENSOR
The 65" iiyama ProLite TE6515A-B2AG interactive display combines premium design and advanced performance thanks to 4K UHD resolution and an optically bonded panel with brightness of up to 550 cd/m² , which guarantees extremely sharp images and natural writing. DeepContrast-IR++ technology with up to 40 touch points and Palm Rejection ensures fluid and precise interactions ideal for collaboration and teaching. Equipped with Android 14 with iiWare 21E platform certified by Google EDLA , it allows direct access to Google Workspace, cloud and Microsoft 365 tools . Advanced connectivity with WiFi-6E, Bluetooth 5.0, USB-C and HDMI , together with iiControl DMS remote management and wireless sharing via iiShare and EShare , makes it perfect for classrooms and collaborative business environments .
Main features:
- 65" interactive display with 4K UHD resolution and optical bonding panel
- DeepContrast-IR++ technology with up to 40 touch points and Palm Rejection
- iiWare 21E system with Android 14 and Google EDLA certification
- Advanced connectivity WiFi-6E, Bluetooth 5.0, USB-C, HDMI and LAN
- Centralized management with iiControl DMS and wireless sharing iiShare / EShare
- Intelligent PIR sensors and ambient light for energy efficiency
Further details
Technical data sheet
| Model | TE6515A-B2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 64.5", 163.9cm |
| Panel | GO |
| Touch Glass | Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 megapixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 550 cd/m² |
| Light transmittance | 88% |
| Static contrast | 5000:1 |
| Response time (MPRT) | 6.5ms |
| Viewing zone | horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Color support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
| Bezel width (sides, top, bottom) | 16.7mm, 34.3mm, 46.7mm |
| Pixel pitch | 0.124mm |
| Bezel color and finish | black, matte (sandblasted oxidation) |
| TOUCH | |
| Touch technology | DeepContrast-IR++ |
| Touch points | 40, 32pt writing (HID, only with supported OS, 32pt Touch with Android) |
| Scan rate | 200Hz |
| Touch response time | 5ms |
| Touch accuracy | +- 1mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output |
HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1) |
| Audio input |
Mini jack x1 (Microphone) |
| Monitor control input |
RS-232c x1 (DSUB 9pin) |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) |
| Audio output |
S/PDIF (Optical) x1 |
| Monitor control output |
OPS Slot x1 (Intel OPS 80pin) |
| HDCP | 2.2 |
| USB ports | x4 (media playback / peripherals / storage – side: 2x 3.2 (Gen 1, 5Gbit), 1x 2.0 (Android only), 1x USB-C IN 2.0 (480Mbps, 100W PD)) |
| RJ45 (LAN) | x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
| Microphone | 8-Array (8m voice-pickup) |
| FEATURES | |
| Integrated software | iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (Built-in WiFi-6E, Bluetooth 5.0) |
| Hardware | SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB |
| Extra | Sensors: Ambient light, NFC Reader, PIR Motion, Pen Pick-up; Slot for optional OPS PC, Micro SD card slot, 4x Touch pen |
| Kiosk mode | yes |
| PiP | yes |
| Max. non-stop operating time | 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity) |
| Media playback | Yes |
| Glass thickness | 3.2mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LT, HU |
| Control buttons | Power (press and hold 3-5 seconds), Home (shortcut on screen): Short press Power button |
| User controls |
personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, color temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device) |
| Blue light reducer |
Yes |
| Flicker free |
yes |
| Plug & Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | Yes |
| VESA mounting | 800 x 400mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - %2°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (EU 3m, UK 3m), USB (3m), HDMI (3m) |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | Wall Mounting Bracket (VESA 800x400), Webcam Mounting Bracket |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC AC - 100V, 240V, 50Hz |
| Power Usage | 170W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| EPEAT | EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country. |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1489.1 x 911.8 x 87.1mm |
| Box dimensions W x H x D | 1640 x 1010 x 185mm |
| Pallet volume | 4pcs |
| Weight (without box) | 43.5kg |
| Weight (with box) | 47.4kg |
