IPC-HDBW2241E-S (3.6mm) | 2MP 1080P ONVIF® POE IP DOME CAMERA - 3.6MM LENS - ARTIFICIAL INTELLIGENCE - MICROPHONE - IP67 AND IK10 PROTECTION


Dahua

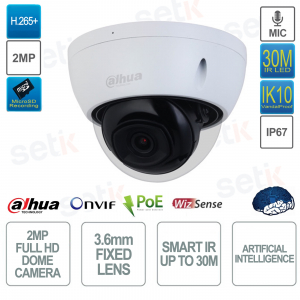

The Dahua IPC-HDBW2241E-S camera is a professional outdoor video surveillance solution, featuring Full HD 2MP resolution and a 3.6 mm fixed lens for a balanced field of view. It features IR illumination up to 30 meters for night vision, WizSense technology with artificial intelligence for precise human and vehicle detection, Smart H.265+ video compression, a built-in microphone, and IP67 and IK10 protection against dust, water, and vandalism.

Main specifications:

- 2MP Full HD resolution and 3.6 mm lens

- IR up to 30 meters with Starlight

- AI WizSense for intelligent detection

- IP67 and IK10 vandal-proof protection

- Built-in microphone and PoE support

Further details

Resolution:
The Dahua IPC-HDBW2241E-S guarantees high definition images thanks to the 1/2.8" CMOS sensor with a maximum resolution of 2MP (1920×1080), offering a smooth video stream up to 30 fps, ideal for real-time video surveillance with high clarity.
Optics :
Equipped with a 3.6mm fixed lens with F1.6 aperture, it offers an 88° horizontal field of view, perfect for wide but detailed monitoring, with IR illumination up to 30 meters for effective night vision.
SMD Plus :
It integrates advanced Smart Motion Detection technology, capable of distinguishing the real movement of people or vehicles while filtering out false alarms, ensuring more precise security in residential or business contexts.

Perimeter Protection:
Using deep learning artificial intelligence, Perimeter Protection detects intrusions and tripwire crossings by accurately classifying humans and vehicles, reducing false alarms even in complex outdoor environments.
Network Camera:
The camera supports 10/100 Mbps RJ-45 connection, compatible with IPv4/IPv6, ONVIF and P2P protocols. It includes advanced encryption, remote access via mobile app and support for Micro SD cards up to 256GB, ensuring secure and complete integration into video surveillance systems.
IPC-HDBW2241E-S dimensions

Technical data sheet

IPC-HDBW2241E-S (3.6mm)

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

3.6 mm

Max. Openings

F1.6

Field of View

H: 88°; V: 44°; D: 105°

Iris Control

Fixed

Close Focus Distance

1.3 m (4.27 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Power Consumption

Basic: 1.9W (12VDC); 2.5W (PoE)
Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 4.7 W (12 VDC); 5.6W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

81.0 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.34 kg (0.75 lb)

Gross Weight

0.49 kg (1.08 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
