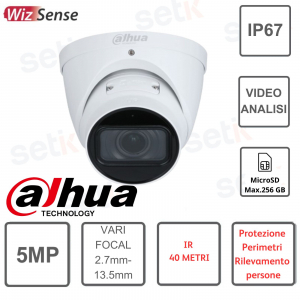

Dahua 5MP Starlight IP Camera with Varifocal Lens and AI WizSense

Dahua 5MP Starlight IP Camera with Varifocal Lens and AI WizSense
-57%

IPC-HDW3541T-ZS-S2 - is a 5MP dome IP camera from the WizSense series, designed to provide intelligent and reliable surveillance in indoor and outdoor environments. Equipped with a 1/2.7" CMOS sensor, it provides high definition images even in low light conditions thanks to Starlight technology. The 2.7-13.5mm motorized varifocal lens allows flexible adjustment of the field of view, while the integrated IR illumination guarantees visibility up to 40 meters . Advanced features include intelligent intrusion and line crossing detection, with accurate classification of people and vehicles. The camera supports H.265 video compression for efficient management of bandwidth and storage space. With IP67 protection, built-in microphone and PoE support.

Technical Data Sheet

Artikel-Nr.: IPC-HDW3541T-ZS-S2

Marke: Dahua

EAN: 6923172542250

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW3541T-ZS-S2 | OUTDOOR IP CAMERA 2.7-13.5MM VARIFOCAL LENS - 5MP WITH ARTIFICIAL INTELLIGENCE


Dahua

The Dahua IPC-HDW3541T-ZS-S2 is an outdoor dome IP camera from the WizSense series, designed to offer excellent performance in professional environments. Thanks to the integrated AI technology, such as Deep Learning human and vehicle detection, it ensures precise and reliable surveillance. IR illumination up to 60 meters, H.265 compression and IP67 resistance make this camera an ideal choice for any advanced security context.

Main specifications:

- 5MP (2592 × 1944) resolution for sharp and detailed images

- 2.7~13.5mm varifocal motorized lens for flexible zoom and focus

- WizSense AI features with intelligent people and vehicle detection

- Starlight technology for excellent color night vision in low light conditions

- IR illumination up to 60 meters with Smart IR

- Advanced H.265+ video compression for bandwidth and space saving

- IP67 environmental protection (waterproof and dustproof)

- Real WDR 120dB for excellent backlight management

- Simplified Power over Ethernet (PoE) power supply

Further details

Optics:
The camera mounts a 2.7-13.5 mm varifocal motorized lens, which allows you to dynamically adapt the viewing angle from 104° to 28° with millimeter precision, thanks also to the integrated autofocus. The F1.5 diaphragm guarantees greater image brightness, essential for obtaining sharp details even in low-light conditions. The optics are ideal for dynamic environments where flexible control of the scene is required.
Resolution:
Equipped with a 5 Megapixel (1/2.7") CMOS sensor, the camera delivers high-definition images with a maximum resolution of 2592 × 1944 pixels at 20 fps. It is also possible to record at higher frame rates on lower resolutions, providing operational flexibility depending on the scenario. Thanks to the 120 dB True WDR technology, the camera perfectly handles areas with strong light contrasts, such as entrances or rooms with glass windows exposed to the sun.
Starlight Technology :
This Dahua camera integrates Starlight technology , capable of capturing color images even in very low light conditions, up to 0.005 lux . The high sensitivity sensor and large aperture lens maximize night performance. The integrated IR illumination covers a distance of up to 60 meters thanks to Smart IR infrared, which automatically adjusts the intensity to avoid overexposure.

Intelligence (AI - WizSense):
At the heart of the WizSense series is artificial intelligence: the IPC-HDW3541T-ZS-S2 uses deep learning algorithms to distinguish people and vehicles from irrelevant objects, drastically reducing false alarms. Intelligent features include perimeter protection (virtual line and intrusion), abandoned or removed object detection, and advanced classification. These features make the camera ideal for proactive and intelligent security systems.

Network:
The camera is compatible with major integration standards, including ONVIF (Profile S, G, T) , providing flexibility in mixed environments. It supports Smart H.265+/H.264+ encoding , which significantly reduces bandwidth and storage consumption. It features a 10/100 Mbps Ethernet port with Power over Ethernet (PoE) support , simplifying installation with just one cable for data and power. Security features include HTTPS encryption, IP whitelisting, digest authentication, and advanced access protection.
IPC-HDW3541T-ZS-S2 dimensions

Technical data sheet

MODEL IPC-HDW3541T-ZS-S2
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
Y/N Ratio >56dB
Illumination Distance Auto/Manual
Illuminator Number 2 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7mm–13.5mm
Max. Openings F1.5
Field of View Horizontal: 99°–28°
Vertical: 71°–21°
Diagonal: 134°–35°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
TO THE SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
SmartSearch Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
AI Coding AI H.265
AI H.264
Video Frame Rate Main stream: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / 2688 × 1520@(1–25/30 fps)
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640×480)
Bitrate Control CBR/VBR
Video Bitrate H.264: 3kbps–8192kbps
H.265: 3kbps–8192kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Rotation Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network
Network Port RJ-45 (10/100Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestones; Genetec
User/Host 20 (Total bandwidth: 64M)
Storage FTP; SFTP; Micro SD card (support max. 256G); NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client Android;iOS
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply 12VDC/PoE (802.3af)
Power Consumption Basic: 5.7W (12VDC); 6.4W (PoE)
Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67
Structure
Casing Metal
Product Dimensions 108.3 mm × Φ122 mm (4.26" × Φ4.80")
Net Weight 715g (1.58lb)
Gross Weight 915g (2.02 lb)
