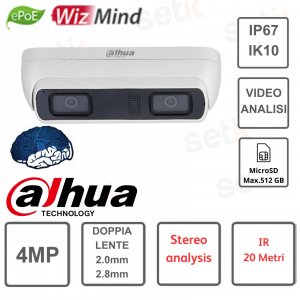

4MP Dual Lens 2.0mm-2.8mm Stereo IR 20m Camera - Dahua

4MP Dual Lens 2.0mm-2.8mm Stereo IR 20m Camera - Dahua
-57%

IPC-HDW8441X-BV-3D DahuaAI Outdoor Onvif PoE IP-Kamera mit künstlicher Intelligenz – 4 MP Auflösung – Doppelobjektiv 2,0 mm–2,8 mm – 1/2,8 Zoll CMOS-Sensor, H.265+ – Triple Stream – IR 20 m, WDR 120 dB - BLC, HLC, ROI, Defog, - Künstliche Intelligenz : Perimeterschutz, Gesichtsschutz, intelligente Suche, Personenzählung, abnormales Verhalten, Erkennung sich nähernder Personen, Gewalterkennung, Sturzerkennung, Erkennung ungewöhnlicher Personenzahlen und Erkennung der Anwesenheit von Personen - Videoanalyse – Audio – Mikrofon – Alarm – Integrierter Lautsprecher – 512 GB MicroSD-Steckplatz (nicht im Lieferumfang enthalten) – Schutz: IP67 und IK10 – RJ45 Ethernet 1000 M – RS-485 – Ideal für den Außenbereich

Artikel-Nr.: IPC-HDW8441X-BV-3D

Marke: Dahua

EAN: 6923172574237

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


ONVIF® POE OUTDOOR IP CAMERA - 4MP - DUAL 2.0MM-2.8MM LENS - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - MICROPHONE - SPEAKER - IP67/IK10 - DAHUA - IPC-HDW8441X-BV-3D

Dahua
Outdoor ONVIF® PoE IP camera - AI Series WizMind Dahua - IIPC-HDW8441X-BV-3D
4 Megapixel Resolution - Dual 2.0mm-2.8mm Lens - 1/2.8" 4 MP CMOS - Triple Stream, with Smart H.265+ codec - IR 20m - WDR 120dB - ROI, Day/Night (ICR), BLC, HLC, 3D NR, Defog - RJ45 Ethernet 1000M - RS-485 - 512GB MicroSD slot (not included) - AI: Perimeter Protection, Face, Intelligent Search, Abnormal Behavior - Video Analysis: Abandoned and Lost Objects - 2in/1out Audio - 2in/2out Alarm - On-board Microphone and Speaker - Made of Metal - IP67 Outdoor Protection and Ik10 Vandalism Protection - For Video Surveillance Systems.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, particularly intelligent computer programs. In the security sector, however, the AI used enables the creation of advanced devices for environmental analysis.

Product details

  • ONVIF® PoE Outdoor AI IP Camera - Dahua - IPC-HDW8441X-BV-3D
  • Resolution 4 Megapixel 4MP
  • 2.0mm-2.8mm fixed dual optics
  • 1/2.8" 4MP CMOS sensor
  • Video compression up to H.265+ with Triple Video Stream
  • Triple Stream
  • WDR 120dB - Defog - Privacy Mask - 3DNR - BLC - HLC -
  • IR illuminator with approximate range of about 20m and 1 illumination LED
  • Professional Artificial Intelligence : Perimeter Protection, Face Detection, Smart Search, Abnormal Behavior Analysis and Detection, Violence Detection, Fall Detection, Abnormal Number of People Detection, and People Dwelling Detection
  • Video Analysis : Abandoned and Lost Objects
  • Audio 2in/1out
  • 2in/2out alarm
  • RS-485 Interface
  • RJ45 Ethernet LAN 10/100/1000Mbps
  • Micro SD memory card slot (Up to 512GB - not included)
  • IP67 protection (indoor / outdoor)
  • IK10 protection against vandalism
  • Material: Metal casing
  • Dimensions: 204.0 mm × 78.0 mm × 61.6 mm
  • Weight: 0.82Kg
  • Operating temperature: –40 °C to +60 °C
  • Power supply NOT included
  • 24 month manufacturer's warranty

Technical data sheet

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

2.0 mm:
0.005 lux@F2.0 (Color,30 IRE)
0.0005 lux@F2.0 (B/W,30 IRE)
0 lux (Illuminator on)
2.8 mm:
0.005 lux@F1.6(Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

Up to 20 m (65.62 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED)

Angle Adjustment

Tilt: -10° to 70°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;2.0 mm

Max. Openings

2.0 mm: F2.0
2.8 mm: F1.6

Field of View

2.0mm: H: 108°; V: 74°; D: 117°
2.8mm: H: 87°; V: 55°; D: 97°

Iris Control

Fixed

Close Focus Distance

2.0 mm: 0.4 m (1.31 ft)
2.8 mm: 1.1 m (3.61 ft)

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protection

Stereo Analysis

Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

ABR;CBR;VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Lighting

Yes

Defog

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration

Interoperability

ONVIF (Profile S; Profile G; Profile T); P2P; CGI

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 41 and later
Firefox: Firefox 50 and later
Safari: Safari 10 and later

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

2 channels out: wet contact, 300 mA 12VDC

Analog Output

1 channel (CVBS output: BNC)

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/PoE (802.3af)/ePoE

Power Consumption

Basic: 5.9W (12VDC), 7W (PoE);
Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43")
(L × W × H)

Net Weight

0.82 kg (1.81 lb)

Gross Weight

1.14 kg (2.51 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif cameras are the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used in conjunction with recording systems.

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is clear, it allows it to be powered with the same cable with which it communicates without running additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

AI | Artificial Intelligence
This camera features Artificial Intelligence on board

- Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , consisting of a large number of sources that encompass facial data, allowing the camera to quickly and accurately detect faces from the video source and capture facial images.

- Perimeter protection: Intrusion, Line crossing (people & vehicles classification)
- Analysis of anomalous behavior
- Face detection
- Smart search

Warning line crossing detection

Intrusion in the warning area

Running detection

Detection of approaching people

Violence detection

Fall detection

Detection of an anomalous number of people

Detection of the presence of people

Basic Video Analysis: Detection of abandoned and lost objects.

AI Camera - Cattura del volto

Risoluzione 4Mpx 2592x1520

Resolution 4 Megapixels (2688x1520)

Fixed optics This camera features 2.0mm-2.8mm fixed dual lens
Main stream: 2688 × 1520@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080@(1–25/30 fps)
IR Illuminator 20 MT

Infrared illuminator with 1 LED and range up to 20m for night vision.


3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when working in high-contrast light/shadow conditions. It's essential when shooting from inside to outside, license plates, shadowed areas, or any situation where there's uneven lighting.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night Function
Funzione ROI This camera is equipped with ROI function.

Images from IP cameras are compressed, so the quality is set during recording. Especially with very high-resolution cameras, it's often necessary to reduce the quality to ensure less bandwidth usage and record a greater number of days or cameras.
The ROI allows you to define areas where you want to set a higher quality (for example, a door, the area where the license plate usually passes, an exit, etc.). In that area, I can set a higher quality , thus ensuring a higher image definition.
Ultra Smart Funzione ROI
DEFOG Function Icon It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
This DVR features audio inputs/outputs

2 audio inputs and 1 audio output.

Microphone and speaker on board!

Alarm Inputs and Outputs 2 alarm inputs and 2 alarm outputs.
IP67 protection against dust and immersion Protection level IP67 (Dust / Continuous immersion).

IK 10 is the highest level of protection against direct damage. This allows the camera to be used even if there is a risk of vandalism.

MicroSD Recording

Possibility of inserting Micro SD up to a maximum of 512GB - not included

12V 3A power supply

Power supply NOT included.

Diet:
12 VDC.
12V DC power supply

Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
