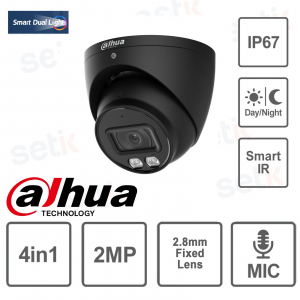

Lite Series | Dahua HAC-HDW1200T-IL-A-S6-B 4in1 2MP 2Megapixel 1080P FULL HD 4in1 HDCVI/AHD/HDTVI/CVBS Analog Dome Camera with 2.8mm Fixed Lens. Smart Dual Light Technology, IR Illuminator up to 40m with 2LEDs, Built-in Microphone , Day/Night Auto(ICR)/Color/B/W- 3D NR - DWDR- DC 12V Power Supply - IP67 Protection Ideal for Outdoor Use. φ106.0 mm × 99.2 mm (φ4.17" × 3.91") - Black Color

HAC-HDW1200T-IL-A-S6-B | DAHUA DOME CAMERA 2MEGAPIXEL 1080P FULL HD 2.8MM SMART DUAL LIGHT - MICROPHONE - BLACK COLOR

Dahua Dome Camera - Lite Series | HAC-HDW1200T-IL-A-S6-B
2Megapixel Resolution - 2.8mm fixed lens - 4in1 (HDCVI/HDTVI/AHD/ANALOG)
Smart Dual Light Technology - Built-in Microphone - 40 Meter IR Illuminator with 2 Warm Light LEDs
IP67 protection for outdoor mounting - Ideal for video surveillance systems in outdoor environments - 12VDC power supply (power supply not included) - Black color
Dahua Smart Dual Light Technology: What is it?Dahua Smart Dual Light technology uses an intelligent algorithm to precisely detect targets. The IR illuminator is normally on at night. When the camera detects a target, the warm light turns on, and the camera records color video and key event information. When the target leaves the monitored area, the warm light turns off and the IR illuminator turns back on, helping reduce light pollution in the area. |
Product details
- 4in1 eyeball camera - Dahua - HAC-HDW1200T-IL-A-S6-B
- 4 Technologies in 1: HDCVI / HDTVI / CVBS / AHD
- Resolution 2Megapixel 2MP FULLHD
- 2.8mm fixed optics
- Smart Dual Light Technology
- IR illuminator with range up to 40m 2 warm light LEDs
- BLC; HLC; DWDR- 3D NR
- Built-in microphone
- IP67 Protection (Rain / Diving)
- Power consumption 4.1W
- In Metal and Plastic
- Power supply: 12 VDC ± 30% (power supply not included)
- Operating temperature: –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensing)
- φ106.0 mm × 99.2 mm (φ4.17" × 3.91")
- Black color
- 24 month manufacturer's warranty
Technical data sheet
| Model | HAC-HDW1200T-IL-A-S6-B |
| Sensor | 2MP CMOS |
| Digital Resolution | 1080P (1920x1080), 960H (960x576) |
| Frame Rate | 25/30fps @1080P (CVI/TVI/AHD) |
| Switchable output | 4in1 |
| Day/night | mode with removable mechanical filter |
| IR | 0.01 lux F2.0 (color) / 0.001 lux F2.0 (B/W) / 0 lux IR On |
| Smart IR | 2 IR LEDs, 40 meters |
| Smart Light | 2 warm light LEDs, 40 meters |
| Lens | 2.8mm Fixed Optic |
| Viewing angle | 102°(H), 60°(V), 129°(D) |
| Digital Resolution | 1080P (1920x1080), 960H (960x576) |
| Picture modes | 25/30fps @1080P (CVI/TVI/AHD) |
| Switchable output | 4in1 |
| Day/night | BLC, HLC, Digital WDR, 3D-NR, Mirror |
| Lighting modes | Smart IR + Smart Light / Smart IR / Smart Light |
| White balance | Automatic |
| Gain control | Automatic |
| Privacy mask | Supports 8 zone |
| Audio | Built-in microphone |
| Power supply | 12V DC (±30%) |
| Consumption | 4.1W (max.) |
| Storage temperature | -40°C ~ +60°C |
| Working temperature | -40°C ~ +60°C |
| Relative humidity | <95% (non-condensing) |
| Protection grade | IP67 |
| Casing | Metal housing |
| Color | Black |
| Dimensions | Ø106 x 99.2 mm |
| Gross weight | 580 g |
| Net weight | 450 g |
| 3AXIS | 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation) |
Further details
![]() |
This camera is a QUAD HYBRID (4 integrated technologies) |
![]() |
This camera is equipped with a 2.8mm fixed lens. |
![]() |
This camera has a resolution of 2 Megapixel FULL HD 1080P |
![]() |
Infrared illuminator with approximate maximum range of 40m Smart Dual Light Technology:
|
![]() |
This camera features built-in microphone. |
![]() |
Allows you to adapt the lens to Night/Day vision
|
|
|
The IR CUT FILTER is a mechanical filter that allows for correct image display in daytime conditions. It filters out typical infrared frequencies, thus improving image quality. At night, the filter is removed as it is necessary to capture typical IR frequencies.
|
![]() |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations
|
![]() |
Protection level IP67 (Dust / Immersion) |
![]() |
12VDC power supply not included
|
| This product is covered by a 24 month warranty. |
