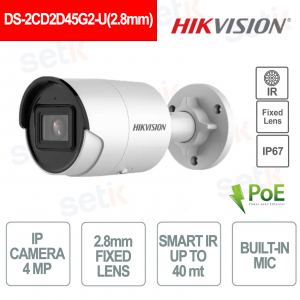

DS-2CD2D45G2-U(2.8mm) – 2.8mm OPTICAL BULLET CAMERA - BUILT-IN AUDIO AND MICROPHONE

Hikvision

DS-2CD2D45G2-U(2.8mm) is a 4MP IP camera with 2.8mm fixed lens designed to provide intelligent and high-definition video surveillance in residential, business and public environments. Equipped with AcuSense technology, it is able to precisely detect people and vehicles, drastically reducing false alarms generated by irrelevant movements. The advanced CMOS sensor and built-in IR illuminator up to 40 meters ensure clear and detailed images even in total darkness. Built-in microphone for recording ambient audio, useful for advanced video analysis or remote surveillance. The camera supports H.265+ compression to save bandwidth and storage, is IP67 certified for outdoor use and is fully compatible with smart systems, VMS and AI-based solutions, offering complete remote management for next-generation security.


Further details

4MP Resolution (2688 × 1520) : High definition video with clear and detailed images for every monitored scene.
2.8mm fixed lens : Wide viewing angle to cover open spaces or entrances without the need to zoom.
Integrated AcuSense Technology : Intelligent recognition of people and vehicles, with automatic reduction of false alarms.
IR illumination up to 40 meters : Advanced night vision for continuous monitoring even in total darkness.
Built-in Microphone : Capture ambient audio for synchronous video/audio recording.
H.265+ Compression : Optimize storage space and bandwidth without losing quality.
IP67 Protection : Resistant to dust, rain and extreme environmental conditions, ideal for outdoor installations.
AI-ready compatibility and remote management : IP67 certification for dust and water resistance, suitable for outdoor installations.

Technical data sheet

Model DS-2CD2D45G2-U(2.8mm)
Room
Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
Lens Type 2.8mm fixed focal length
Lens Mount M12
Openings F1.6
Iris Type Fixed
Microphone
Pickup Distance Within a radius of 5 m
Amount 1
Illuminator
Light Range Supplement Up to 40 m
Supplement Light Type IR
IR Wavelength 850 nm
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub Stream 50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bitrate 32Kbps to 8Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bitrate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bitrate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Free live view plugin: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120dB
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection
Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture
General
Dimensions Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Size 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 724 g (1.6 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
consumption Max. 2.9W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
