DS-2SE3C404MWG-E/14(2.8mm) – 4MP PTZ CAMERA - BUILT-IN AUDIO AND MICROPHONE

DS-2SE3C404MWG-4G/14(2.8mm) PTZ camera is an advanced video surveillance solution designed to ensure continuous, detailed and intelligent visual control in outdoor environments. Equipped with a dual lens, it combines a fixed panoramic view with a 4MP PTZ lens and 4x optical zoom, allowing simultaneous monitoring of the entire area and critical details. ColorVu technology ensures color images even at night, improving visibility in any light condition. Supported by AI algorithms, it is able to detect and classify people and vehicles with precision, reducing false alarms and optimizing the efficiency of the security system. Thanks to 360° panoramic coverage, IP66 protection and compatibility with smart platforms, this camera is an ideal choice for urban infrastructures, car parks, corporate areas and any context in which security requires complete vision, autonomy and intelligence.
Further details
%20dimensioni.jpg)
Technical data sheet
Model | DS-2SE3C404MWG-E/14(2.8mm) |
Room | |
Image Sensor | [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
Min. Illumination | [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6,AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Slow Shutter | Yes |
Day & Night | ICR |
Zoom | [PTZ channel] 4 × optical, 16 × digital |
Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
Lens | |
Focus | auto,manual,semi-auto |
Focal Length | [Bullet channel]: 2.8mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical |
Zoom Speed | [PTZ channel]: approx. 3.3s |
FOV | [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39° |
Openings | [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 |
Illuminator | |
Supplement Light Type | [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR |
Smart Supplement Light | Yes |
Light Range Supplement | [PTZ channel]: IR Distance: up to 40m; [Bullet channel]: IR Distance: up to 30m; White Light Distance: 30m |
PTZ | |
Movement Range (Pan) | 0° to 350° |
Movement Range (Tilt) | [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° |
Pan Speed | pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
Tilt Speed | tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
Proportional Pan | Yes |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Power off Memory | Yes |
Park Action | presets, patrol scan |
3D Positioning | Yes |
PTZ Status Display | Yes |
Preset Freezing | Yes |
Scheduled Task | dome reboot, preset, patrol scan, dome adjust, aux output |
Video | |
Region of Interest (ROI) | 1 fixed regions for main stream |
Main Stream | [Bullet channel]: 50Hz: 25fps (2560×1440, 1920×1080, 1280×720) 60Hz: 30fps (2560×1440, 1920×1080, 1280×720) [PTZ channel]: 50Hz: 25fps (2560×1440, 1920×1080, 1280×720) 60Hz: 30fps (2560×1440, 1920×1080, 1280×720) |
Sub Stream | [Bullet channel]: 50Hz: 25fps (640×480, 640×360) 60Hz: 30fps (640×480, 640×360) [PTZ channel]: 50Hz: 25fps (640×480, 640×360) 60Hz: 30fps (640×480, 640×360) |
Third Stream | [Bullet channel]: 50Hz: 25fps (1280 × 720,640 × 480,640 × 360) 60Hz: 30fps (1280 × 720,640 × 480,640 × 360) [PTZ channel]: 50Hz: 25fps (1280 × 720,640 × 480,640 × 360) 60Hz: 30fps (1280 × 720,640 × 480,640 × 360) |
Video Compression | H.265,H.264,MJPEG |
Video Bitrate | 32kbps to 16384kbps |
H.264 Type | main profile, baseline profile, high profile |
H.265 Type | Main Profile |
Scalable Video Coding (SVC) | Yes |
Audio | |
Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC |
Audio Bitrate | MP2L2: 32kbps, 40kbps, 48kbps, 56kbps, 64kbps, 80kbps, 96kbps, 112kbps, 128kbps, 144kbps, 160kbps; AAC: 16kbps, 32kbps, 64kbps; MP3: 8kbps, 16kbps, 32kbps, 40kbps, 48kbps, 56kbps, 64kbps, 80kbps, 96kbps, 112kbps, 128kbps, 144kbps, 160kbps |
Audio Sampling Rate | MP2L2: 16kHz,AAC-LC: 16kHz,PCM: 8kHz, 16kHz,MP3: 8kHz, 16kHz |
Environment Noise Filtering | Yes |
Network | |
API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
Network Storage | NAS (NFS, SMB/CIFS),ANR, ANR |
Protocols | TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,N TP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP |
Simultaneous Live View | 20 |
User/Host | 32 |
Security | 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption |
Client | iVMS-4200, Hik-Connect |
Web Browser | IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+ |
Image | |
Image Settings | sharpness, saturation, brightness, contrast |
Wide Dynamic Range (WDR) | 120dB |
SNR | ≥ 52 dB |
Defog | Digital defog |
Day/Night Switch | day, night, auto, scheduled switch |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask | [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
Regional Exposure | [Bullet channel] No, [PTZ channel] Yes |
Image Parameters Switch | Yes |
Interface | |
Built-in Microphone | 1 built-in microphone |
Built-in Speaker | 1 built-in speaker |
Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512GB |
Reset Key | Yes |
Event | |
Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
Smart Event | Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle) Face detection |
Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
General | |
General Function | mirror, watermark, IP address filter, password protection |
Power | 12 VDC, max. 13.5 W, PoE+ |
Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
Demist | Demist by heating the glass |
Material | PC |

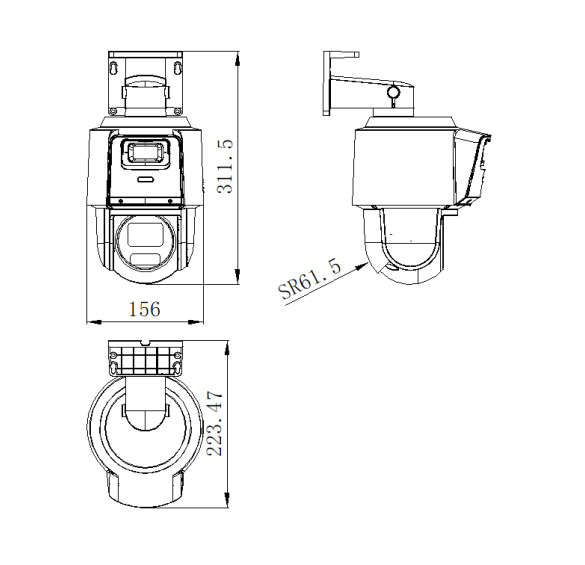

Dimensions | 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14") |
Weight | Approx. 1.37 kg (3.02 lb.) |
Approval | |
Protection | IP66 Standard, Surge Protection and Voltage Transient Protection |
