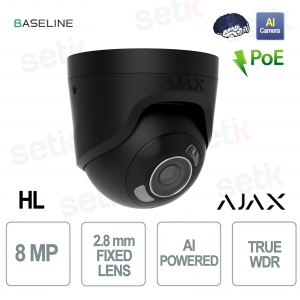

Ajax TurretCam HL 8MP 2.8mm Black: IP Camera with AI and Night Vision

Ajax TurretCam HL 8MP 2.8mm Black: IP Camera with AI and Night Vision
ANKÜNDIGUNGEN Neu

126264.197.BL1 #126264 | Ajax TurretCam HL is an 8MP wired IP camera with a 2.8 mm lens and an elegant black body. It offers clear, color images day and night thanks to hybrid illumination and TrueWDR , ensuring quality even in low light conditions. Integrated with Artificial Intelligence , it accurately detects people, vehicles and animals, sending intelligent alarms and reducing false alerts. Its compact structure, certified IP65 and IK08 , ensures resistance to external agents, while compatibility with PoE and Ajax Cloud simplifies installation and management. An advanced solution for professional video surveillance that combines security, AI and design.

Technical Data Sheet

Artikel-Nr.: 126264.197.BL1

Marke: Ajax Systems

EAN: 4823114073014

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126264.197.BL1 | AI-Powered 110° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.


Ajax

The Ajax TurretCam HL, 126264.197.BL1 , is a wired IP camera with Artificial Intelligence, designed for indoor and outdoor environments, which guarantees clear, color images both day and night thanks to hybrid IR and white light illumination and TrueWDR. Durable and reliable, with IP65 and IK08 certification, it ensures protection against dust, water and impacts, making it ideal for professional and residential environments.

Main specifications:

- Resolution up to 8MP with 2.8mm lens

- Integrated AI for the recognition of people, vehicles and animals

- Hybrid illumination for clear vision up to 50 m even in the dark

- TrueWDR for balanced images in any lighting condition

- Advanced security with TLS encrypted transmissions and tamper-proof protections

- PoE and ONVIF/RTSP compatibility for easy installation and quick integration

Further details

8MP Resolution :
It guarantees detailed images up to 3840×2160 pixels, with 20 fps and crystal-clear rendering even in moving scenes, ideal for professional video surveillance .
2.8mm Optics:
Wide angle lens with a field of view up to 110°, perfect for monitoring large areas with a single installation .
Dynamic range (TrueWDR) :
Advanced technology to balance light and dark areas, delivering a clear and uniform image even in high-contrast conditions.
Audio:
Equipped with a built-in digital microphone, it enables reliable audio recordings and supports visual and audible alarm verification.
Intelligent video analysis:
Thanks to AI, it recognizes people, vehicles and animals, reducing false alarms and ensuring accurate notifications in real time .
Network:
Secure and smooth video transmission thanks to ONVIF/RTSP protocols, direct streaming via Ajax Cloud and speeds up to 100 Mbps full duplex .
JetSparrow:
Proprietary Ajax protocol that ensures ultra-fast video transmission, optimized storage and smooth navigation through recordings .
Anti-sabotage protection:
IP65 and IK08 certified, resistant to dust, water and shock, with anti-tampering functions and constant monitoring of the device status .

Technical data sheet

126264.197.BL1

Room Image sensor
8 MP CMOS, 1/2.7" type
Lens focal length
2.8 mm
Maximum openings
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 110°
vertical: 56°
diagonal: 126°
Maximum illumination distance
  • white LED: up to 50 m
  • IR LED: up to 50 m
  • white LED: up to 164 ft
  • IR LED: up to 164 ft
Video Resolution
  • 8 MP (3840 × 2160)
  • 6 MP (3072 × 1728)
  • 5 MP (2944 × 1656)
  • 5 MP (2880 × 1620)
  • 4 MP (2560 × 1440)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 20 fps
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Key features Video protocol
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS: Encrypted connection for data protection.
Authentication: via Ajax Cloud
Secure Boot: Protection against firmware spoofing.
OTA signature verification: Secure automatic firmware update.
Power supply Standard PoE
802.3at/af
PoE power consumption
  • maximum: up to 7.2 W
  • average: up to 6.9 W
Power supply unit
12 V⎓ ± 20%, 1 A
12 V DC power consumption
  • maximum: up to 6.3 W
  • average: up to 6 W
Enclosures

Dimensions:
103×98×98mm
4.05″ × 3.86″ × 3.86″
Weight
475 g
1.05 lb
Operating temperature range
from −30 °C to +60 °C
from −22 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65

Colors Black
Complete set TurretCam HL (5 Mp/2.8 mm)
Installation template
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
