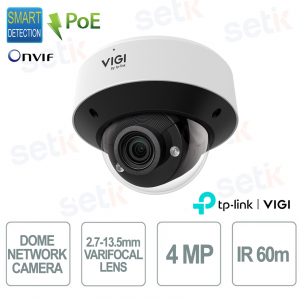

Insight S245ZI | 4MP TP-LINK VIGI DOME CAMERA WITH 2.7-13.5mm VARIFOCAL LENS AND 5x OPTICAL ZOOM


Made VIGI

The TP-Link VIGI InSight S245ZI network dome camera offers professional surveillance with 4MP (2688x1520) resolution and a 2.7–13.5mm motorized varifocal lens with 5x optical zoom, ensuring flexibility and maximum precision. Thanks to AI-based people and vehicle analysis, advanced Smart Detection, and 120dB True WDR technology, it ensures clear images and accurate notifications in any conditions. With two-way audio and a rugged IP67 and IK10 vandal-resistant construction, it is the ideal network camera for businesses, retail stores, and public spaces.

Main specifications:

- 4MP resolution (2688x1520)

- Motorized varifocal lens 2.7–13.5 mm (5x zoom)

- People and vehicle analysis with AI

- Multiple Smart Detection (intrusions, crossings, objects, abnormal sounds)

- True WDR 120 dB and IR up to 60 m

- Two-Way Audio with built-in microphone

- IP67 and IK10 vandal-proof network camera

Further details

✅ 4MP resolution (2688x1520):
It ensures high definition images with sharp details, ideal for professional video surveillance .
✅ Motorized varifocal lens 2.7–13.5 mm :
It allows you to adjust the field of view from 29.6° to 102°, adapting to different surveillance needs.
✅ 5X optical zoom :
It guarantees the possibility of zooming without loss of quality, useful for recognizing faces and details from a distance .
✅ Classification of people and vehicles :
AI technology that distinguishes human and vehicle movements from other objects, reducing false alarms.
✅ Smart Detections :
It includes advanced features such as intrusion detection, line-crossing, abandoned or removed object detection, scene changes and abnormal sounds .
✅ Intelligent video enhancement technology :
With True WDR 120 dB, SmartIR and 3D DNR, it ensures balanced images even in backlit situations and at night.
✅ Audio interface and alarm :
Supports Two-Way Audio (in/out), one alarm input and one alarm output for advanced control .

✅ Network Camera:
PoE connectivity, ONVIF support, microSD recording up to 512 GB, IP67 and IK10 vandal-proof protection.

Technical data sheet

Image Sensor 1/2.9” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. Illumination 0.005 Lux; 0 Lux with IR light
Day & Night IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Motorized Varifocal Lens
Focal Length 2.7-13.5 mm (5X Optical Zoom)
Openings F1.6
FOV Horizontal FOV: 29.6°-102.0°, Vertical FOV: 16.8°-53.8°, Diagonal FOV: 34.1°-122.8°
Lens Mount Φ14
ANGLE ADDJUSTMENT (MANUAL)
Range Pan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344°
ILLUMINATOR
IR LED Quantity: 4
Range: 197 ft (60 m)*1
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688 x 1520
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings
  • Mirror
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White Balance
  • Prevent Overexposure to Infrared Light
  • HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Settings Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP
Onvif Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, Utilities
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Cloud Yes
Alarm and Event Management
Smart Event
  • Intrusion Detection
  • Line-Crossing Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Object Abandoned Detection
  • Object Removal Detection
  • Loitering Detection
  • People Detection
  • Vehicle Detection
  • Abnormal Sound Detection
  • Scene Change Detection
Basic Event
  • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
  • Tampering Room
  • Exception (Illegal Login)
Alarm Linkage
  • Memory Card Video Recording
  • Push Message
  • Audible Warning
  • White Light Flashing
INTERFACE
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm 1 Alarm In, 1 Alarm Out
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker N/A
Audio 1 Audio In, 1 Audio Out
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Metal
Net Weight 0.775 kg
Power Supply 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max.12W
Protection IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H) Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)
Certifications CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
