IPC-HDW2449T-S-LED-PRO | 4MP IP CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - WIZCOLOR


Dahua

The Dahua IPC-HDW2449T-S-LED-PRO is a 4MP WizSense series IP camera with a 2.8 mm fixed lens, designed to deliver high-definition images even in low-light conditions. Thanks to WizColor technology and built-in LED illumination up to 30 m, it guarantees clear color images day and night. It supports AI functions such as perimeter protection and SMD Plus, reducing false alarms and accurately distinguishing people from vehicles. With Smart H.265+ compression, a built-in microphone, IP67 protection and PoE power supply, it is an ideal solution for professional and residential video surveillance systems.

Main specifications:

- 2.8 mm fixed optics with wide field of view (112° H)

- 4MP resolution (2688×1520) @20fps and 2560×1440 @30fps

- SMD Plus with intelligent person and vehicle detection

- Perimeter protection with advanced AI algorithms

- WizColor technology for nighttime color images

- Built-in microphone and MicroSD support up to 256 GB

- IP67 and PoE power supply for safe and reliable installation

Further details

2.8mm Optics :
Fixed wide-angle lens offering a 112° horizontal field of view, ideal for covering large areas with a single camera .
Resolution:
4MP CMOS sensor with output up to 2688×1520@20fps or 2560×1440@30fps, ensuring sharp and detailed images in any condition .
Intelligence :
Supports advanced AI-based features such as intrusion and tripwire, with accurate recognition of people and vehicles to improve safety .
SMD Plus :
Intelligent detection algorithm that dramatically reduces false alarms by filtering out irrelevant movements and focusing on vehicles and people .
Perimeter Protection :
Deep learning technology for perimeter protection with reduced false alarms in sensitive areas such as parking lots or pedestrian zones.
Audio:
Built-in microphone to capture ambient audio, useful for more comprehensive monitoring and in-depth event analysis .

Network Camera:
IP camera compatible with ONVIF standard protocols, supports PoE for simplified installations and local storage on microSD up to 256GB as well as NAS and FTP.
WizColor :
It ensures vivid color images even at night by taking advantage of natural lights such as the moon or street lighting, improving quality compared to traditional IR.

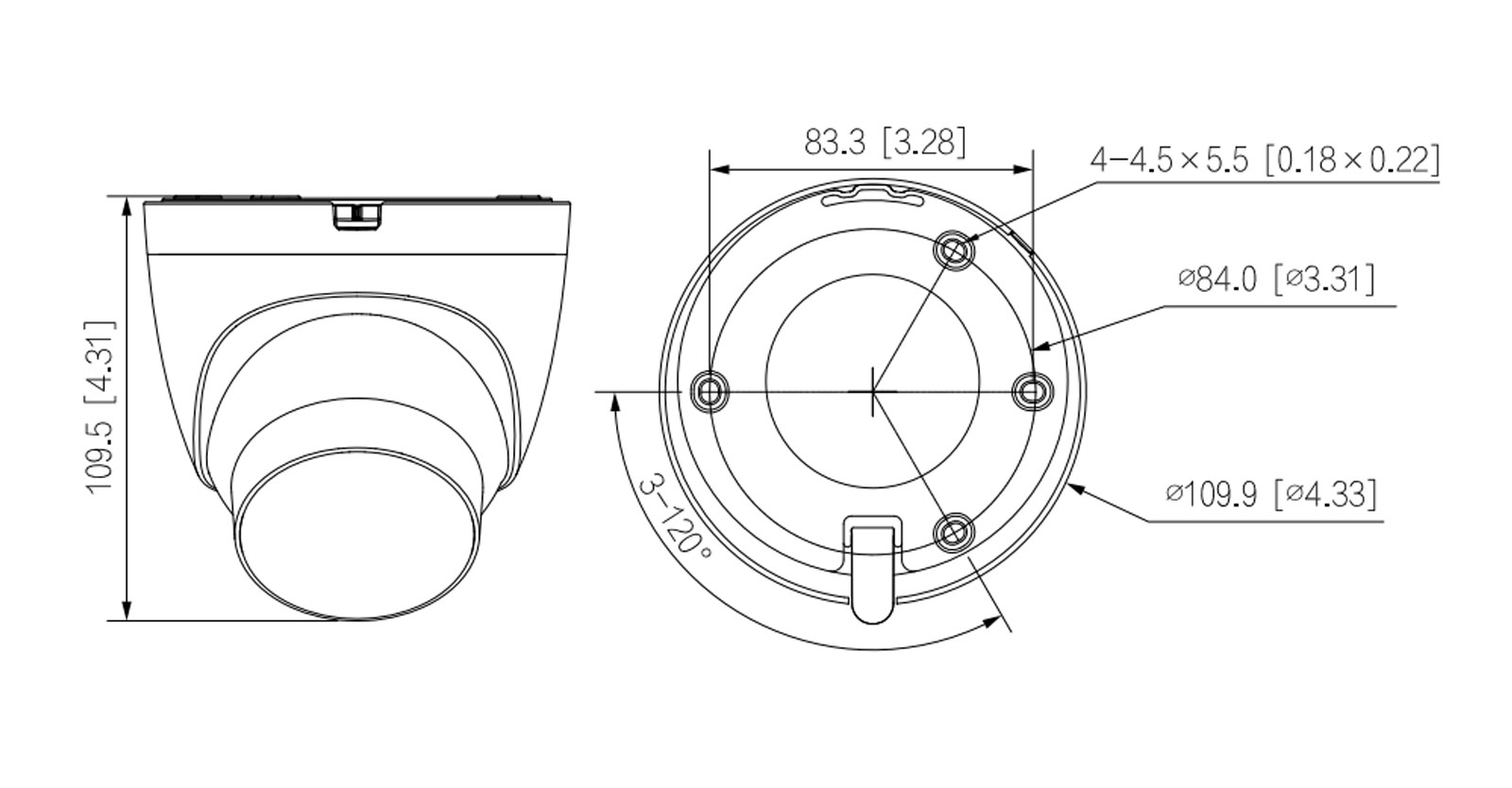

IPC-HDW2449T-S-LED-PRO dimensions

Technical data sheet

MODEL IPC-HDW2449T-S-LED-PRO
Room
Image Sensor 1/2.9" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0005 lux@F1.0
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M16
Focal Length 2.8 mm
Max. Openings F1.0
Field of View H: 112°; V: 60°; D: 134°
Iris Type Fixed
Close Focus Distance 2 m (6.56 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12V DC; POE
Power Consumption Basic: 2.0W (12VDC); 2.5W (PoE);
Max. : 5.3W (12VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Inner core: Metal;
Cover: Plastic
Product Dimensions 109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
Net Weight 0.42 kg (0.93 lb)
Gross Weight 0.59 kg (1.30 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
