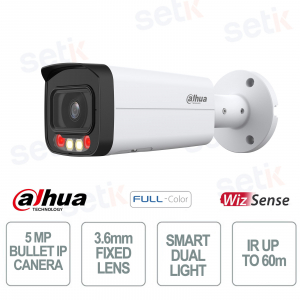

Dahua IPC-HFW2549T-AS-IL 5MP 3.6mm AI Smart Dual Light Camera

Dahua IPC-HFW2549T-AS-IL 5MP 3.6mm AI Smart Dual Light Camera
-56% Neu

IPC-HFW2549T-AS-IL - is a WizSense IP camera with 3.6mm fixed lens offering high definition images up to 5MP (2960×1668) with 1/2.7" CMOS sensor and H.265 compression. Smart Dual Light technology combines IR LEDs and warm light up to 60 meters, ensuring color recordings only in the presence of motion and reducing light pollution. AI functions such as SMD Plus and Perimeter Protection distinguish people and vehicles with high precision, minimizing false alarms. Thanks to the Full-color mode, it captures clear images even in low light conditions. The integrated microphone , IP67/IK10 protection and PoE power supply make this network camera reliable and versatile for residential and professional applications. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HFW2549T-AS-IL

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW2549T-AS-IL | 5MP IP BULLET CAMERA WITH 3.6mm FIXED LENS - PERIMETER PROTECTION - FULLCOLOR


Dahua

The Dahua IPC-HFW2549T-AS-IL network camera with 3.6mm fixed lens offers high-definition images up to 5MP (2960×1668) , ensuring clarity and detail thanks to the 1/2.7" CMOS sensor and H.265 compression. Smart Dual Light technology uses IR LEDs and warm light up to 60 meters, activating color recording only when it detects motion to reduce light pollution. Advanced AI functions such as SMD Plus and Perimeter Protection distinguish people and vehicles with precision, minimizing false alarms. Full-color mode ensures vivid images even in low light conditions. Equipped with a built-in microphone , IP67/IK10 protection and PoE power supply, this network camera is ideal for residential and professional contexts.

Main specifications:

- 3.6mm fixed optics

- Resolution up to 5MP (2960×1668)

- Smart Dual Light with IR 60m and warm light 50m

- AI functions: SMD Plus and Perimeter Protection

- Full-color technology for color night images

- Built-in microphone and microSD card support up to 256GB

- PoE network camera with IP67/IK10 protection

Further details

Optics :
The 3.6mm fixed lens offers a 92° horizontal field of view, ideal for monitoring medium-large areas, ensuring clear, distortion-free images.
Resolution:
Thanks to the 1/2.7" CMOS sensor, the camera supports up to 5MP (2960×1668) , ensuring high definition videos and accurate details in any context.
Smart Dual Light :
Combines IR LEDs and warm light up to 60m , automatically turning on color vision when detecting motion, reducing light pollution.
SMD Plus :
Smart Motion Detection technology distinguishes relevant movements (people and vehicles) from irrelevant ones, significantly reducing false alarms.
Intelligence :
Integrates deep learning-based smart features with advanced video analytics and intelligent search to improve security event management.
Perimeter Protection :
Accurately identify intrusions and line crossings, accurately classifying vehicles and people and increasing detection reliability.
Microphone:
The built-in microphone allows you to record audio synchronized with the images, offering more complete and accurate control.
Full-color:
Full-color technology allows for vivid color images even in low-light conditions, improving the effectiveness of nighttime monitoring.

Network Camera:
It supports PoE power supply, microSD storage up to 256 GB and IP67/IK10 certification, making it resistant to dust, water and shock.
WizColor Technology :
Part of Dahua WizSense series, it integrates AI and deep learning chips for advanced intelligent functions, with accurate detection and easy management.

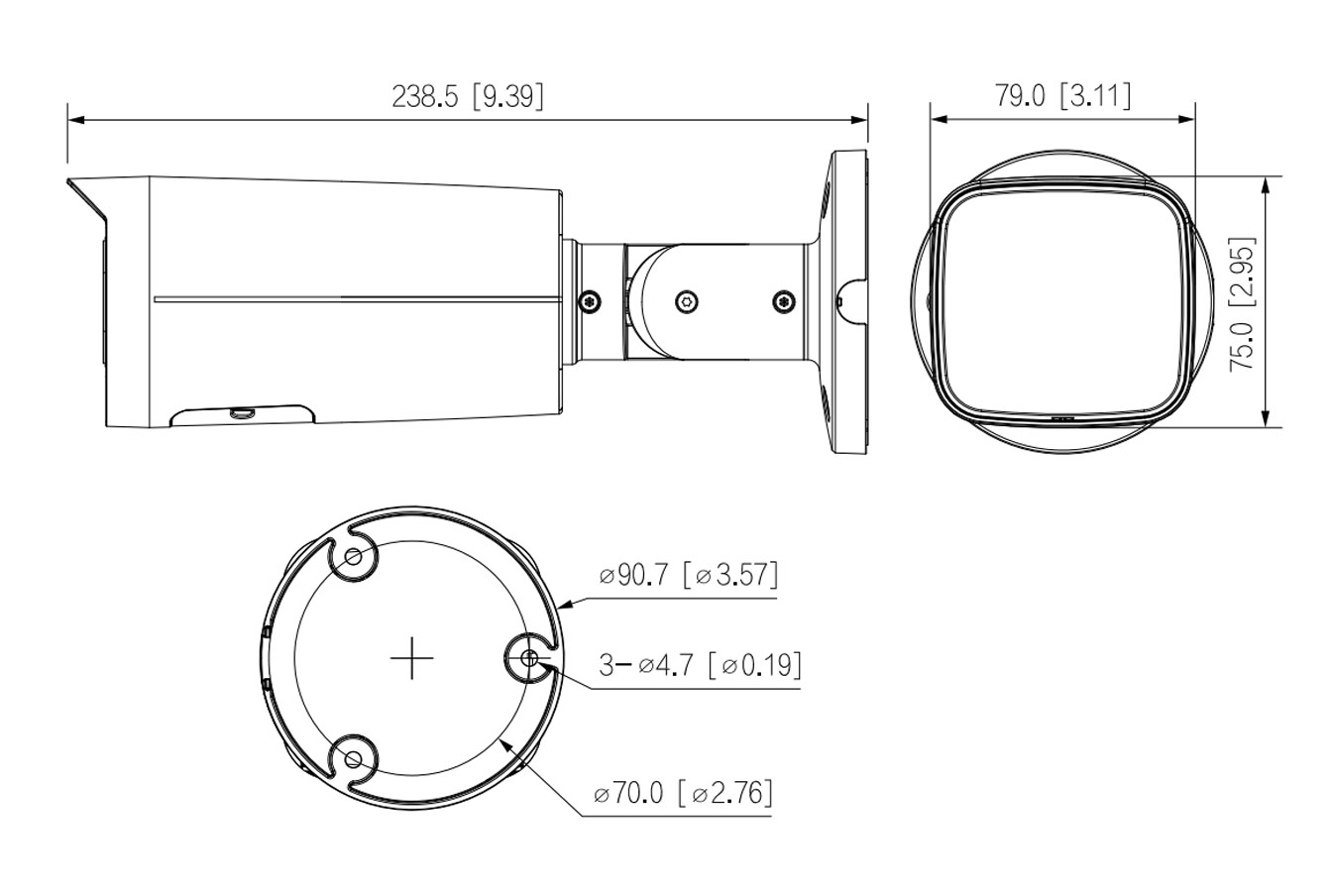

IPC-HFW2549T-AS-IL dimensions

Technical data sheet

MODEL IPC-HFW2549T-AS-IL
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.007 Lux@F1.6(Color,30IRE)
0.0007 Lux@F1.6(B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance up to 60 m (195.85 ft) (IR)
up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6mm
Max. Openings F1.6
Field of View H: 92°; V: 45°; D: 110°
Iris Type Fixed
Close Focus Distance 1.7 m (5.58 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB)
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMS
Mobile Client Android; iOS
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC; PoE (802.3af)
Power Consumption Basic: 2.3W (12VDC); 3W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 6.7 W (12 VDC); 7.9W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Protection IP67; IK10 (optional)
Anti-corrosion Level Low
Structure
Casing Material Metal
Product Dimensions 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
Net Weight 0.72 kg (1.59 lb)
Gross Weight 0.97 kg (2.14 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
