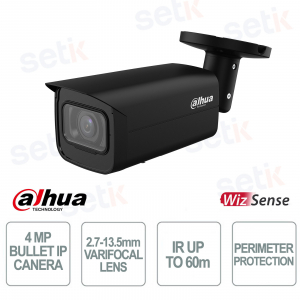

Dahua IPC-HFW3441T-ZS-S2 4MP Black 2.7–13.5mm camera with AI WizSense

Dahua IPC-HFW3441T-ZS-S2 4MP Black 2.7–13.5mm camera with AI WizSense
-56% Neu

IPC-HFW3441T-ZS-S2-B - is a WizSense IP camera in black color offering a resolution of up to 4MP (2688×1520) with a 1/2.9" CMOS sensor and H.265 compression, ensuring clear and detailed images even in low light conditions. Thanks to the 2.7–13.5mm vari-focal motorized lens, it allows flexible control of the field of view from 29° to 104°. The integrated IR illumination guarantees night vision up to 60 meters , while AI functions such as SMD 4.0 , AI SSA and Perimeter Protection accurately distinguish people and vehicles, reducing false alarms. With a built-in microphone, IP67 protection and PoE power supply, this WizSense network camera is ideal for residential and professional applications, combining reliability, technology and elegant design. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HFW3441T-ZS-S2-B

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW3441T-ZS-S2-B | 4MP IP BULLET CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - PERIMETER PROTECTION - BLACK


Dahua

The Dahua IPC-HFW3441T-ZS-S2 network camera in black offers high definition images up to 4MP (2688×1520) thanks to the 1/2.9" CMOS sensor and H.265 compression, which reduces bandwidth and storage while maintaining quality. The 2.7–13.5mm vari-focal motorized lens allows you to adjust the field of view from 29° to 104°, adapting to different surveillance needs. With IR illumination up to 60 meters , it guarantees clear night vision even in total darkness. AI functions such as SMD 4.0 , AI SSA and Perimeter Protection allow you to distinguish people and vehicles, reducing false alarms. The built-in microphone, IP67 protection and PoE power supply make this WizSense network camera a reliable and elegant solution for residential and professional security.

Main specifications:

- Black color, elegant design

- 2.7–13.5mm motorized optics

- Resolution up to 4MP (2688×1520)

- IR illumination up to 60m

- AI Features: SMD 4.0, AI SSA and Perimeter Protection

- Built-in microphone

- PoE network camera with IP67 protection

Further details

Optics :
Equipped with a 2.7–13.5mm motorized vari-focal lens , it allows you to adjust the field of view from 29° to 104°, adapting to wide or targeted surveillance scenarios.
Resolution:
It offers high definition images up to 4MP (2688×1520) at 25/30 fps, with a 1/2.9" CMOS sensor and H.265 compression to reduce bandwidth and storage consumption.
TO THE SSA:
The AI Scene Self-adaptation function automatically adjusts video parameters to difficult environmental conditions (rain, fog, backlighting), maintaining clear images.
Intelligence :
It supports advanced functions such as SMD 4.0 , Quick Pick and Smart Search, based on deep learning, for precise detection and intelligent event management.
Perimeter Protection :
Thanks to deep learning algorithms, it accurately distinguishes people and vehicles, reducing false alarms in the event of intrusions or line crossings.
Microphone:
The built-in microphone enables audio recording synchronized with video, improving monitoring effectiveness and providing a complete view of the scene.

Network Camera:
Being an IP camera, it supports PoE power supply, microSD storage up to 256 GB and IP67 protection, ensuring durability and ease of installation.
WizSense Technology :
Belonging to the WizSense range, it integrates an independent AI chip and deep learning algorithms, designed for intelligent, precise and accessible detection for everyone.

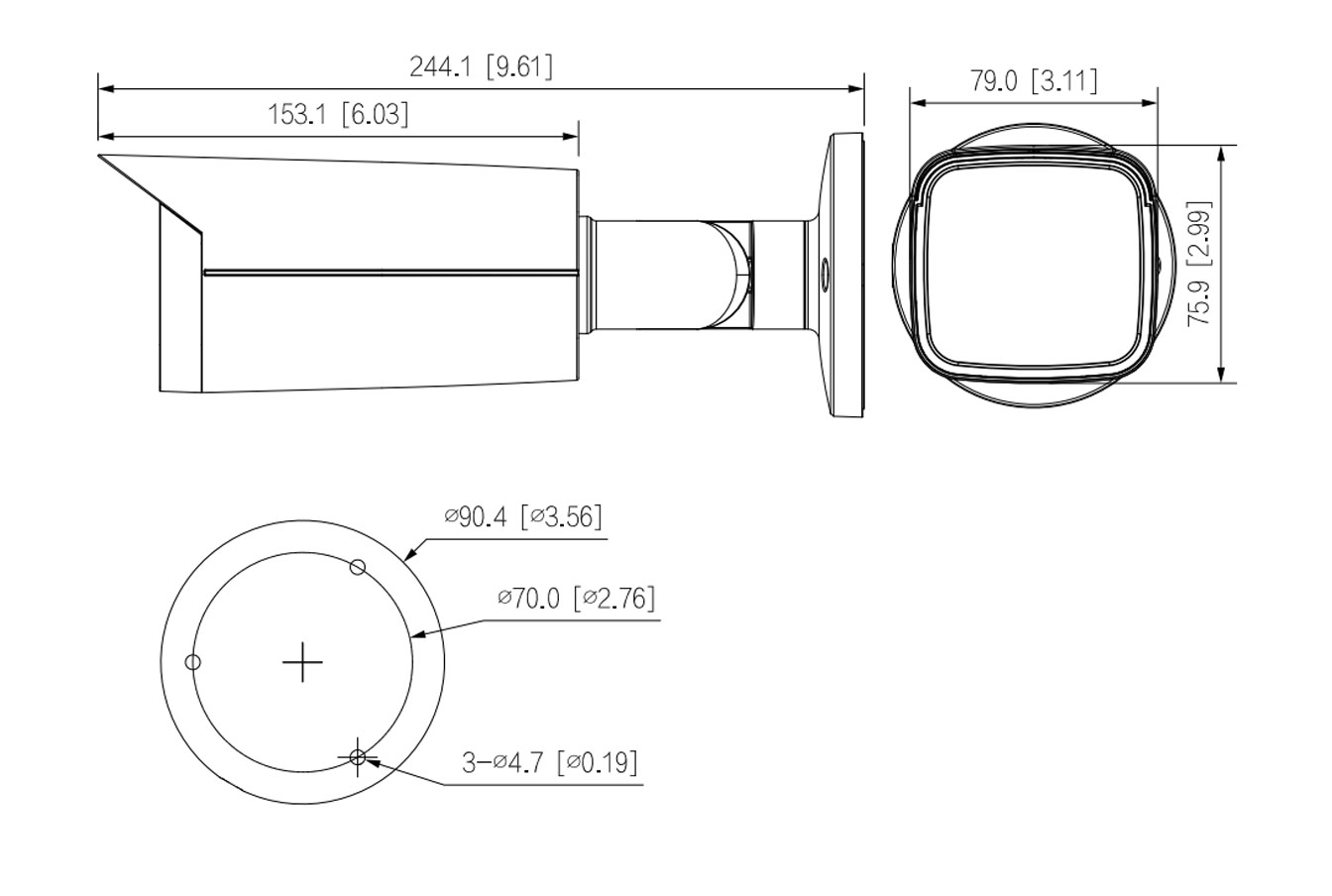

IPC-HFW3441T-ZS-S2 dimensions

Technical data sheet

MODEL IPC-HFW3441T-ZS-S2-B
Room
Image Sensor 1/2.9" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Openings F1.5
Field of View Horizontal: 104°–29°
Vertical: 54° –16°
Diagonal: 125° –33°
Iris Type Fixed
Close Focus Distance 0.8 m (2.62 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
TO THE SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265
AI H.264
Video Frame Rate Main stream: 2688 × 1520 @ (1–25/30) fps
sub stream1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640×480)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB); NAS
Browser IE; IE11
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.8W (12VDC); 3.6W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Material Metal
Product Dimensions 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 3.00") (L × W × H)
Net Weight 820 g (1.81 lb)
Gross Weight 1090 g (2.40 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
