IPC-PT2549DC1-SW-PV | 5MP 3.6mm FIXED LENS WI-FI CAMERA - AUTO TRACKING - WIZ COLOR

Dahua

The Dahua IPC-PT2549C1-SW-PV outdoor camera is a 5MP pan & tilt Wi-Fi solution with a 3.6mm F1.0 lens, designed to ensure clear, bright images even in low-light conditions. Thanks to its 360° view, AI detection of people and vehicles, and IP66 protection, it ensures intelligent and reliable security in any environment .

Main specifications:

- 5MP resolution with WizColor technology

- 3.6mm F1.0 lens, field of view up to 96°

- 360° Pan/Tilt panoramic view

- AI detection of people and vehicles

- Two-way audio and sound/light alarm

- Wi-Fi 6, Bluetooth pairing and microSD support up to 512 GB

Further details

Optics :
It offers a wide field of view of up to 96°, ensuring bright and detailed images even in low light conditions .
5MP Resolution:
It ensures clear, high-definition images, ideal for recognizing important details during surveillance .
AI-ISP (Intelligent Image Signal Processing) :
Advanced technology that optimizes colors and brightness in low-light environments, improving night vision without the need for additional illuminators.
Sound and Light Alarm :
Integrated alarm with sound and light to deter intrusions and promptly report suspicious events .
Auto Tracking :
Intelligent function that automatically follows moving people and vehicles, ensuring continuous and targeted monitoring.
AI Human Detection:
Reduces false alarms by focusing on accurate human detection.
AI Vehicle Detection :
It recognizes vehicles by distinguishing them from other objects, improving the reliability of surveillance.
Two-way Talk:
The built-in microphone and speaker enable real-time communication, useful for security and immediate interaction.

Wi-Fi 6:
Fast and stable connection , with greater coverage and resistance to interference than previous standards.
Bluetooth Pairing :
Quick and intuitive setup thanks to direct Bluetooth pairing.
WizMind WizColor :
It guarantees clear colour images even at night, simulating the visual quality of broad daylight .

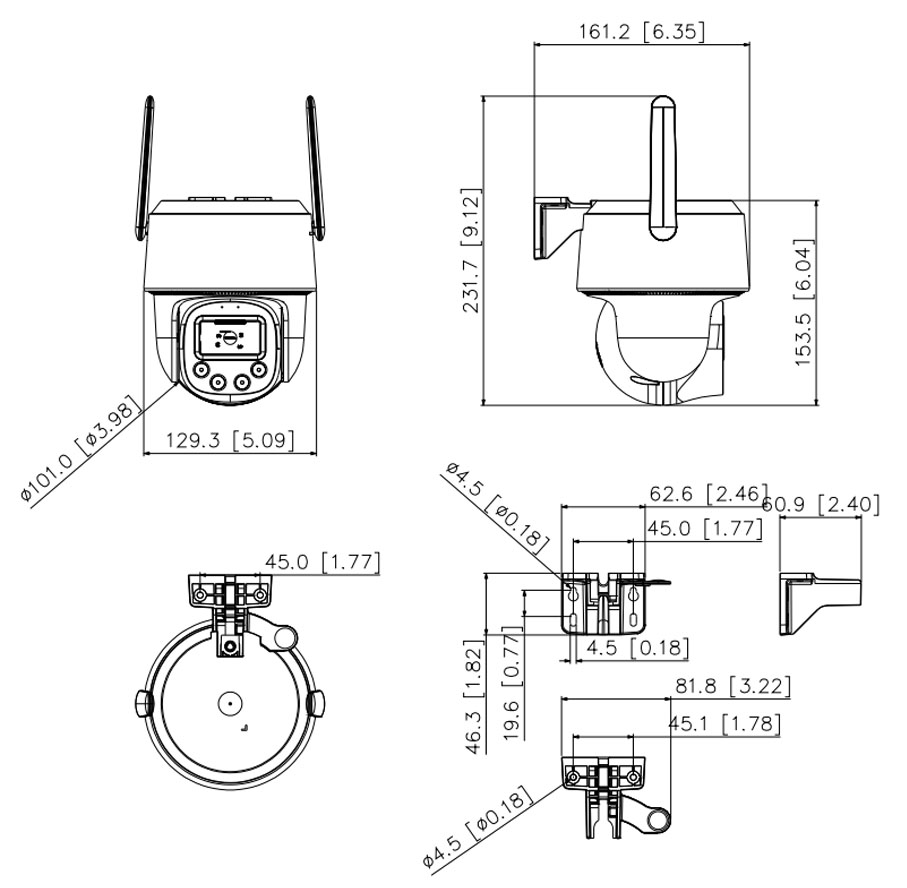

IPC-PT2849DC1-SW-PV dimensions

Technical data sheet

MODEL IPC-PT2549DC1-SW-PV
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 2880 (H) × 1620 (V)
Electronic Shutter Speed 1 s–1/100,000 s
Min. Illumination 0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)
Illumination Distance 30 m (98.43 ft) (Warm light)
Illuminator Number 4 (Warm light)
Lens
Focal Length 3.6 mm
Max. Openings F1.0
Field of View H: 89.5°; V: 51°; D: 96°
PTZ
Pan/Tilt Range Pan: 0° to 345°; Tilt: 0° to 90°
Smart Event
Human Detection Yes
Vehicle Detection Yes
Video
Video Compression Smart H.265+; H.264M; H.264H; Smart H.264+; H.265; H.264B; MJPEG(Sub Stream 1)
Video Frame Rate Main stream: 5M/3M/720p@(1–15fps)
Sub stream 1: 640 × 360/QVGA@(1–15 fps)
Day/Night Color/B/W
WDR 120 dB
Motion Detection Yes
Image Rotation 180°
Audio
Audio Compression PCM, G.711A, G.711Mu
Built-in MIC Yes
Built-in Speaker Yes
Network
Network RJ-45 (10/100 Base-T)
Standard Wi-Fi IEEE802.11g;IEEE802.11b; IEEE802.11n; IEEE802.11ax
Wi-Fi Frequency Range 2.4 GHz
Wi-Fi Transmission Rate 229 Mbps
Wi-Fi Pairing Bluetooth pairing
Max. Transmission Power ≤20 dBm@2,400–2,483.5 MHz
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
Storage Micro SD card (Up to 512 GB); FTP
Management Software NVR;DMSS
Mobile Client Android; iOS
Function
Abnormal Sound Alarm Yes
Certification
Certifications THERE IS
Power
Power Supply 12 VDC, 1 A ± 10%
Power Consumption Basic: 3 W
Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W
Environment
Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤95%
Protection IP66; TVS 2000V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 153.5 mm × Φ129.3 mm (6.04" × Φ5.09")
Net Weight 0.60 kg (1.32 lb)
