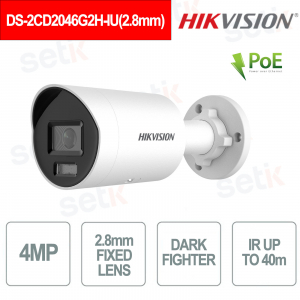

Hikvision DS-2CD2046G2H-IU 4MP 2.8mm DarkFighter Camera - Advanced Security

Hikvision DS-2CD2046G2H-IU 4MP 2.8mm DarkFighter Camera - Advanced Security
BEST PRICE -50% Neu

DS-2CD2046G2H-IU(2.8mm) - 4 MP resolution bullet network camera with 2.8 mm fixed lens combines AcuSense and DarkFighter technologies to ensure clear and detailed images even in low light conditions. With 4 MP resolution (2688 × 1520) and a wide 100.2° horizontal viewing angle, it is ideal for monitoring entrances, perimeters and passage areas. Thanks to 120 dB WDR technology, it manages scenes with strong backlighting, while H.265+ compression reduces storage space without compromising video quality. The integrated microphone enables real-time audio, improving security. Robust and weatherproof with IP67 protection, it is perfect for both indoor and outdoor installations. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2CD2046G2H-IU(2.8mm)

Marke: Hikvision

EAN: 6942160420707

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-2CD2046G2H-IU(2.8mm) – FIXED LENS BULLET CAMERA 2.8mm 4MP - DARKFIGHTER - HUMAN & VEHICLE DETECTION

Hikvision

The Hikvision DS-2CD2046G2H-IU 4MP network camera with a 2.8 mm fixed lens delivers crisp, detailed images thanks to AcuSense technology with deep learning to distinguish people and vehicles and reduce false alarms. The DarkFighter function ensures excellent performance even in low-light conditions, while 120 dB WDR handles scenes with strong backlighting. H.265+ video compression optimizes storage without compromising quality. The built-in microphone allows for real-time audio recording, improving security. Water and dust resistant with an IP67 rating, it is ideal for indoor and outdoor installations.

Main features:

- 4MP resolution with DarkFighter technology for clear night vision

- 2.8mm fixed lens with 100° horizontal viewing angle

- Intelligent person/vehicle detection with AcuSense

- 120 dB WDR and H.265+ compression for optimized images

- Built-in audio and IP67 weatherproofing


Further details

2.8mm Optics:
Fixed lens with 100.2° horizontal viewing angle, ideal for monitoring large areas while reducing blind spots.
Resolution:
4MP (2688 × 1520) CMOS sensor for sharp, detailed images, perfect for identifying faces and objects even from a distance.
DarkFighter Technology :
Excellent low-light performance, with clear images and accurate colors even in near darkness.
Human Detection:
Advanced person detection that distinguishes human subjects from other motion, reducing false alarms.
Vehicle Detection :
Accurate identification of moving vehicles, useful for access areas, parking lots and transit zones.
Deep Learning Function :
Artificial intelligence algorithms for the intelligent recognition of suspicious objects and behavior, improving security.
AcuSense Technology :
Automatic classification of people and vehicles based on deep learning, for reliable notifications and more efficient tracking .
 Audio:
Built-in microphone enables real-time audio recording, improving surveillance effectiveness.
DS-2CD2046G2H-IU(2.8mm) dimensions

Technical data sheet

DS-2CD2046G2H-IU(2.8mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type 2.8mm
Focal Length & FOV horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
Openings F1.0
Depth of Field 1.9 m to ∞
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio
Audio Type Mono sound
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK
User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max: 7W

Material

Front cover: Metal, body: Metal, bracket: Metal

Dimension

Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")

Package Dimension

234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")

Weight

Approx. 525 g (1.2 lb.)

With Package Weight

Approx. 750 g (1.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
Environment

CE-RoHS: 2011/65/EU

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
