DS-2CD2347G2H-LIU – 4MP 2.8mm FIXED LENS BULLET CAMERA - COLORVU - SMART HYBRID LIGHT

Hikvision

The Hikvision DS-2CD2347G2H-LIU is a 4 MP turret network camera with a 2.8 mm fixed lens, designed for sharp color images even at night thanks to ColorVu Smart Hybrid Light technology. Equipped with 130 dB WDR, it handles extreme light and shadows with great precision and ensures clear details in any environment. H.265+ compression reduces bandwidth and storage consumption without sacrificing video quality. The built-in microphone ensures clear and reliable audio, while IP67 protection makes it dust and waterproof for indoor and outdoor use.

Main features:

- Ultra-sharp 4MP resolution

- 2.8mm wide-angle fixed lens

- Smart Hybrid Light ColorVu technology

- WDR 130 dB for perfect images even in backlight

- Efficient H.265+ compression and built-in microphone

- IP67 protection against water and dust


Further details

2.8mm Optics:
The 2.8 mm lens offers a wide field of view up to 138.5° diagonal, ideal for monitoring large areas with a single device. It allows you to distinguish important details such as faces and license plates up to several meters away, ensuring effective coverage both indoors and outdoors.
Resolution:
Thanks to the 4 megapixel CMOS sensor (2688 × 1520) , the camera produces extremely sharp and detailed images. 130 dB WDR technology improves visibility in scenes with strong light contrasts, avoiding dark or overexposed areas.
Smart Dual Light :
The intelligent lighting system automatically switches between white and infrared light: in the absence of movement it uses discreet IR to reduce light pollution, while when people or vehicles are detected it activates visible light to provide color videos even at night up to 30 m.
ColorVu:
ColorVu technology uses an F1.0 aperture and advanced sensors to deliver vivid color images even in near-total darkness (0.0005 lux). This ensures maximum clarity and realism in nighttime recordings.
Deep Learning Function :
Intelligent deep learning analytics recognize people and vehicles, reducing false alarms due to irrelevant motion like rain or animals. Features like intrusion detection, line crossing, and face capture are included for proactive security .
Audio :
The built-in microphone provides high-quality real-time audio , allowing you to listen to what is happening in the monitored area and add an extra layer of protection to your video recordings.
 Network Camera IP:
This IP camera supports secure and compatible network protocols (TCP/IP, HTTP, HTTPS, RTSP) and can be managed remotely via dedicated software such as Hik-Connect or iVMS-4200. It features IP67 protection against water and dust, ideal for outdoor installations.

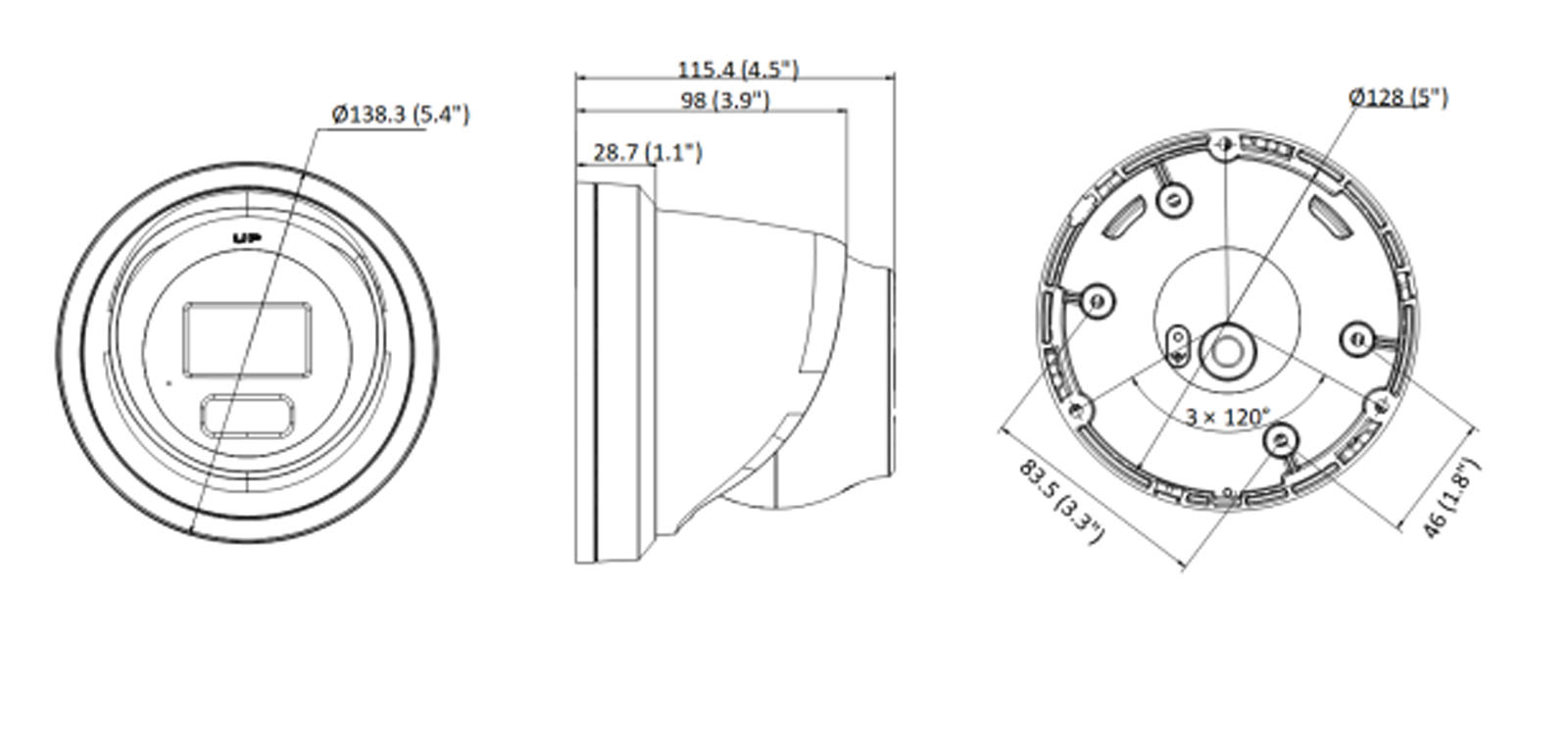

DS-2CD2347G2H-LIU dimensions

Technical data sheet

DS-2CD2347G2H-LIU
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type 2.8mm
Focal Length & FOV horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 2.5 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

130 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max: 6W

Material

Cover: Metal, main body: Metal

Dimension

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")

Weight

Approx. 770 g (1.7 lb.)

With Package Weight

Approx. 1040 g (2.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
