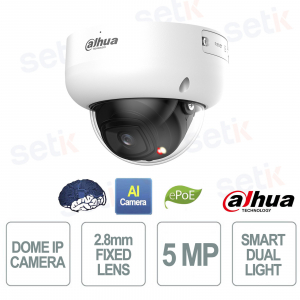

IPC-HDBW5559R-ASE-IL 5MP WizMind Smart Dual Light AI IP Camera with 2.8mm Vandal-Proof Lens - Dahua

IPC-HDBW5559R-ASE-IL 5MP WizMind Smart Dual Light AI IP Camera with 2.8mm Vandal-Proof Lens - Dahua

 
Optic calculation
-56%

IPC-HDBW5559R-ASE-IL - The WizMind IP camera is an advanced video surveillance solution designed for high-security professional contexts, thanks to its 5MP resolution and the WizMind platform with advanced Artificial Intelligence . The 2.8mm fixed lens offers a wide viewing angle , ideal for precise monitoring of sensitive areas. Smart Dual Light technology with IR and warm light up to 50m allows color shooting even at night , supported by the AI-ISP for clearer images in low-light conditions. The advanced perimeter protection, face detection, people counting and AcuPick functions, combined with the integrated microphone , IP67 and IK10 vandal-proof protection and PoE/ePoE support, make this camera a reliable and high-performance choice for critical indoor and outdoor installations. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HDBW5559R-ASE-IL

Marke: Dahua

EAN: 6937552409743

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

IPC-HDBW5559R-ASE-IL | 5MP IP CAMERA WITH 2.8mm FIXED LENS - SMART DUAL LIGHT - VANDAL-PROOF NETWORK CAMERA


Dahua

The Dahua WizMind IPC-HDBW5559R-ASE-IL IP camera is designed for advanced security applications in the professional field, offering 5MP resolution and high performance thanks to the WizMind platform with next-generation Artificial Intelligence . The 2.8mm fixed lens ensures a wide viewing angle , ideal for accurate control of sensitive areas. Smart Dual Light technology with IR and warm light up to 50 m , combined with AI-ISP , guarantees clear, color images even in low light conditions . The advanced perimeter protection, face detection, people counting and AcuPick functions, together with the integrated microphone , IP67 and IK10 vandal-proof protection and PoE/ePoE support, make this camera a reliable solution for critical indoor and outdoor installations.

Main specifications:

- 5MP resolution (2960×1668) with 1/2.7” CMOS sensor

- 2.8mm fixed optics with a viewing angle of up to 127°

- Smart Dual Light technology with IR and warm light up to 50 m

- WizMind platform with advanced AI and AI-ISP

- Advanced Perimeter Protection with people, vehicle and animal classification

- Advanced AI features: AcuPick, face detection, people counting and video metadata

- Built-in microphone and audio in/out support

- AI compression H.265/H.264 and Smart H.265+

- IP67 and IK10 vandal-proof protection for harsh environments

Further details

✅ Optics :
 The 2.8mm fixed lens with a viewing angle of up to 127° guarantees wide and detailed coverage of the monitored area, making it ideal for security applications in professional and high-traffic density environments.

✅ Resolution:
The 1/2.7” 5 Megapixel CMOS sensor ensures high definition images (2960×1668) , essential for the accurate identification of people, vehicles and objects in scenarios.
✅ Xinghan Large-Scale AI Models-Vision :
The Xinghan Large-Scale AI Models-Vision Platform leverages edge AI and advanced NPU to deliver target recognition, scene adaptation, and simultaneous multi-task analysis , dramatically improving accuracy and operational efficiency.
✅ Smart Dual Light:
Dahua Smart Dual Light technology combines IR and warm light illumination up to 50m , activating full-color vision only when a target is present to maximize nighttime details and reduce light pollution.
✅ AcuPick:
The AcuPick feature uses front-end and back-end deep learning to enable fast and precise searches within large amounts of video, locating people, vehicles and animals with extreme accuracy.
✅ Artificial Intelligence:
Advanced Artificial Intelligence integrates functions such as video metadata, face detection, people counting and IVS , offering advanced analysis and significantly reducing false alarms.
✅ Microphone:
The built-in microphone enables ambient audio recording and audio input/output support, improving shooting context and security event management.
✅ Alarm Event:
Advanced alarm event management includes intrusion, tripwire, video tampering, audio detection, face detection and people counting , ensuring timely response to critical situations.
✅ Network:
RJ-45 IP connectivity with support for major network protocols, ONVIF and SDK/API ensures complete integration, remote management and interoperability with professional video surveillance systems.
✅ WizMind :
Dahua WizMind platform represents the most advanced level of AI for security , offering intelligent analysis, high reliability and comprehensive solutions for complex projects and professional verticals.

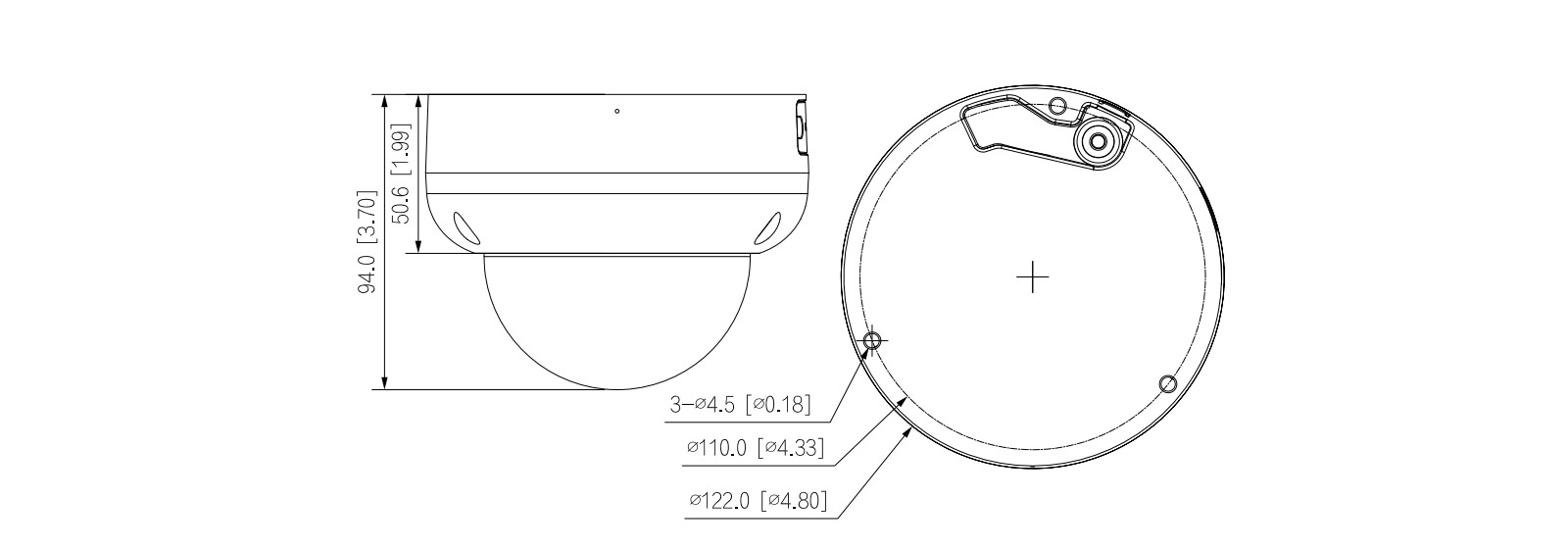

IPC-HDBW5559R-ASE-IL dimensions

Technical data sheet

MODEL IPC-HDBW5559R-ASE-IL
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0009 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 108.4°; V: 60°; D: 127.1°
Iris Type Fixed
Close Focus Distance 1 m (3.28 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+.
Video Frame Rate Main stream: 2960×1668@(1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
Fourth stream: 1280 × 720@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 11 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Certifications Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Sound Warning CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.2W (12VDC); 6.3W (PoE)
Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6W (PoE)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal
Product Dimensions 94mm × Φ122mm (3.70" × Φ4.80")
Net Weight 713 g (1.57 lb)
Gross Weight 986 g (2.17 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
