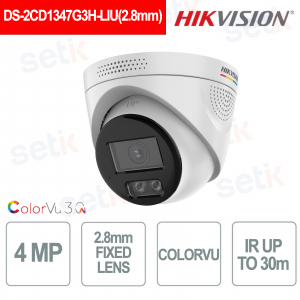

DS-2CD1347G3H-LIU 4MP ColorVu 3.0 IP Camera with 2.8mm Lens, Two-Way Audio, and Smart Light - Hikvision

DS-2CD1347G3H-LIU 4MP ColorVu 3.0 IP Camera with 2.8mm Lens, Two-Way Audio, and Smart Light - Hikvision
BEST SELLER -35% Neu

DS-2CD1347G3H-LIU(2.8mm) - is a turret camera with 2.8mm lens is a professional solution for highly reliable IP video surveillance, ideal for indoor and outdoor environments thanks to IP67 protection. It offers 4 MP resolution (2560×1440) with ColorVu 3.0 technology for 24/7 color images even in very low light conditions , supported by F1.0 aperture and 1/1.8" CMOS sensor . The 2.8mm wide-angle lens with 104° horizontal FOV guarantees wide and detailed coverage. It integrates Smart Hybrid Light with IR and white light up to 30 m , Motion Detection 3.0 with people and vehicle classification , two-way audio with integrated microphone and speaker , making it an optimized choice for intelligent security and AI indexing. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2CD1347G3H-LIU(2.8mm)

Marke: Hikvision

EAN: 6936422149215

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-2CD1347G3H-LIU(2.8mm) – 2.8mm 4MP FIXED LENS TURR CAMERA - HUMAN AND VEHICLE DETECTION - COLORVU

Hikvision

The Hikvision DS-2CD1347G3H-LIU with 2.8mm lens is a 4MP turret IP camera designed for advanced, AI-powered video surveillance, ideal for residential and professional settings. Thanks to ColorVu 3.0 technology , it guarantees 24/7 color images even in extremely low light conditions, supported by an F1.0 aperture and high-sensitivity sensor. The 2.8mm wide-angle lens ensures wide coverage, while intelligent functions improve accuracy and security. It integrates lighting and audio systems for active and continuous protection, with high reliability even outdoors.

Main features:

- 4MP resolution (2560×1440) with ColorVu 3.0

- 2.8mm fixed lens with 104° horizontal viewing angle

- Motion Detection 3.0 with people and vehicle classification

- Smart Hybrid Light with IR and white light up to 30 m

- Two-way audio with built-in microphone and speaker

- IP67 protection for outdoor installations


Further details

Fixed Optics:
The 2.8mm fixed lens offers a 104° horizontal field of view , ideal for wide and detailed coverage of indoor and outdoor environments, reducing blind spots and optimizing surveillance for professional applications.
Resolution:
4MP
1/1.8" CMOS sensor with 2560×1440 resolution ensures high-definition, sharp and detailed images, essential for accurate recognition of people, vehicles and events.
ColorVu 3.0 :
ColorVu 3.0 technology ensures 24/7 color images , even in extremely low light conditions, thanks to the F1.0 aperture and HikAI-ISP processing, improving visibility and evidentiary value.
Human Detection:
Intelligent person detection enables accurate human subject classification, reducing false alarms and increasing the effectiveness of AI video analytics-based security systems.
Vehicle Detection :
Vehicle detection allows for intelligent identification and classification of traffic, making the camera suitable for contexts such as parking lots, industrial areas and controlled access.
Motion Detection :
The Motion Detection 3.0 system uses advanced algorithms for more precise motion detection, distinguishing real events from environmental interference such as rain or irrelevant movements.
Microphone :
The built-in microphone enables ambient audio recording, adding an extra layer of information to video events for more comprehensive surveillance.
Built-in speaker :
The built-in speaker supports two-way audio , enabling real-time communication and active deterrence functions through voice alerts or audible alarms.
 Network Protocol:
Support for major network protocols such as TCP/IP, HTTP, HTTPS, RTSP, ONVIF, IPv4/IPv6 ensures maximum compatibility , simple integration with IP video surveillance systems and flexible management in complex networks.

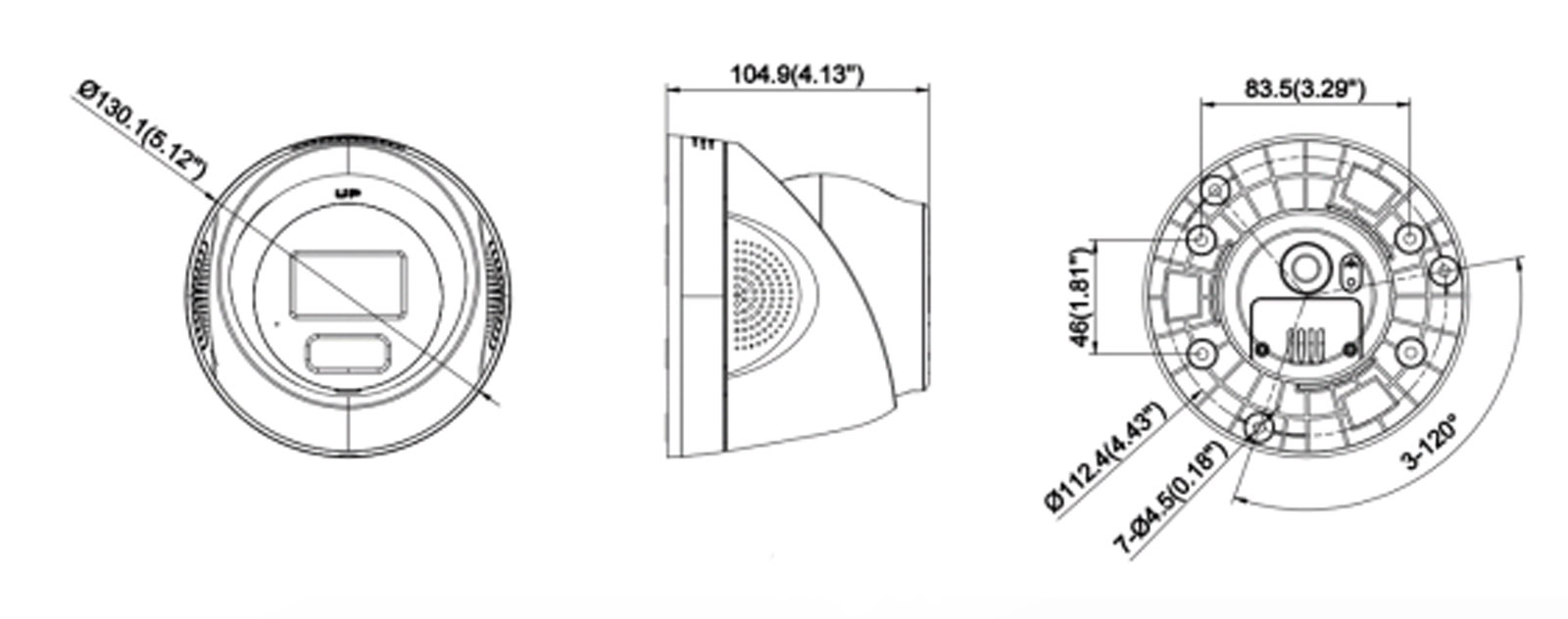

DS-2CD1347G3H-LIU(2.8mm) dimensions

Technical data sheet

DS-2CD1347G3H-LIU(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0001 Lux @ (F1.0, AGC ON)
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7°
Lens Mount M16
Iris Type Fixed
Openings F1.0
Depth of Field 2.5 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (768 × 432, 640 × 360)
60Hz: 24fps (768×432, 640×360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Free live view plugin: Chrome 80+, Firefox 80+, Edge 89+

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
General
Power

12 VDC ± 25%, 0.64 A, max. 7.68 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.21W

Material

Cover: PLASTIC, main body: METAL

Dimension

Ø130.1 mm × 103.1 mm (Ø5.1" × 4.1")

Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")

Weight

Approx. 580 g (1.3 lb.)

With Package Weight

Approx. 800 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Flashing Light

White Light

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)

Protection

IP67: IEC 60529-2013
