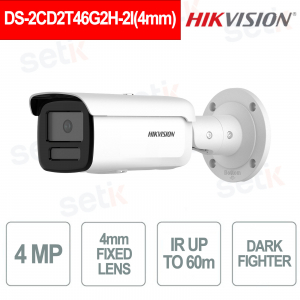

4MP 4mm AcuSense DarkFighter IR 60m IP67 Bullet IP Camera - Hikvision

4MP 4mm AcuSense DarkFighter IR 60m IP67 Bullet IP Camera - Hikvision
BEST SELLER -35% Neu

DS-2CD2T46G2H-2I(4mm) - is a 4 MP (2688×1520) IP bullet camera with a 4mm fixed lens and an 81.1° horizontal viewing angle, ideal for medium-range perimeter monitoring. Thanks to DarkFighter technology, it offers excellent low-light performance down to 0.001 Lux , while 120 dB WDR ensures clear images even in strong backlighting. It integrates AcuSense with deep learning for intelligent classification of people and vehicles, reducing false alarms and improving system efficiency. It supports H.265+ compression , IR illuminator up to 60 m and IP67 protection, ensuring reliability and resistance in professional outdoor environments. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2CD2T46G2H-2I(4mm)

Marke: Hikvision

EAN: 6942160420646

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-2CD2T46G2H-2I(4mm) – MINI BULLET CAMERA FIXED LENS 4mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER

Hikvision

The Hikvision DS-2CD2T46G2H-2I 4mm is a professional IP bullet camera with 4 MP (2688×1520) resolution and 4mm fixed lens with 81.1° horizontal FOV, ideal for perimeter control and medium-long range monitoring. Thanks to DarkFighter technology, it guarantees bright images up to 0.001 Lux , while the 120 dB WDR ensures clarity even in strong backlighting. It integrates AcuSense with deep learning for intelligent classification of people and vehicles, drastically reducing false alarms. It supports H.265+ compression , IR illuminator up to 60m and IP67 protection, offering maximum reliability in outdoor installations.

Main features:

- Resolution 4 MP 2688×1520

- 4mm fixed lens with FOV 81.1°

- DarkFighter Technology 0.001 Lux

- Real WDR 120 dB

- H.265+ video compression

- IR up to 60 m and IP67 protection


Further details

Fixed optics :
4mm
lens with 81.1° horizontal FOV and F1.0 aperture , designed for medium-range shooting and perimeter control with high detail on gates, entrances and external areas.
Resolution:
4 MP (2688×1520) 1/3" Progressive Scan CMOS sensor for high-definition images, higher pixel density and better subject identification.
DarkFighter Technology :
Advanced low-light performance down to 0.001 Lux , with clear images even in night or low-light scenarios.
Human Detection:
Intelligent person detection with AcuSense deep learning-based classification , dramatically reducing false alarms generated by irrelevant movements.
Vehicle Detection :
Targeted vehicle identification thanks to dedicated AI algorithms, ideal for parking lots, industrial areas and access control.
Motion Detection :
Advanced motion detection system with filtering by target type (people and vehicles) and advanced event management.
Deep Learning Function :
Smart features such as Face Capture and Perimeter Protection (line crossing, intrusion, region entrance/exit) for intelligent video analytics and proactive security.
 Network Protocol:
Full compatibility with TCP/IP, HTTP, HTTPS, RTSP, ONVIF (Profile S, G, T), IPv4/IPv6 protocols, ensuring smooth integration into professional IP video surveillance systems.

Technical data sheet

DS-2CD2T46G2H-2I(4mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 4 mm
Focal Length & FOV horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens Mount M12
Iris Type Fixed
Openings F1.0
Depth of Field 2.5 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser

Plug-in required live view: IE 10, IE 11,
Free live view plugin: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9W

Material

Front cover: Metal, body: Metal, bracket: Metal

Dimension

286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")

Package Dimension

386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Weight

Approx. 1085 g (2.4 lb.)

With Package Weight

Approx. 1639 g (3.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)

Protection

IP67: IEC 60529-2013
