DS-2CD6365G1-IVS(1.16mm) - is a 6 MP (2560×2560) Fisheye camera with 1/1.8" Progressive Scan CMOS sensor, designed to offer 360° high definition panoramic coverage. It integrates a 1.16 mm F2.25 fixed lens with 180° horizontal and vertical FOV , ideal for complete monitoring of environments without blind spots. It has integrated IR up to 15 m with Smart Supplement Light , ensuring visibility even at 0 Lux. It supports WDR 120 dB , H.265+/H.264+ compression, up to 20 viewing modes with dewarping and 4PTZ. Thanks to DeepinView technology with 2 TOPS , it offers advanced functions such as People Counting, Heat Map and Queue Management , with IP67 and IK10 protection for professional installations. Hikvision
INSTALLATEUR FINDEN

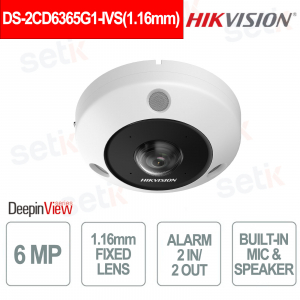

DS-2CD6365G1-IVS(1.16mm) – FIXED LENS FISHEYE CAMERA 1.16mm 6MP - DEEPINVIEW - IR UP TO 15M
The Hikvision DS-2CD6365G1-IVS is a 6 MP (2560×2560) Fisheye camera with 1/1.8" Progressive Scan CMOS sensor, designed to ensure high-definition 360° panoramic coverage. It is equipped with a 1.16 mm F2.25 fixed lens with a 180° horizontal and vertical field of view , ideal for complete monitoring of environments without blind spots. It integrates IR Smart Supplement Light up to 15 m and WDR 120 dB , ensuring clear images even in low light conditions. It supports H.265+/H.264+ , up to 20 viewing modes with dewarping and 4PTZ , offering maximum operational flexibility. Thanks to DeepinView technology with 2 TOPS , it includes advanced functions such as People Counting, Heat Map, Queue Management and Intersection Analysis , with IP67 and IK10 protection for professional installations.
Main features:
- Resolution 6 MP 2560×2560 Ultra HD
- 1.16mm F2.25 fixed lens with FOV 180°/180°
- 360° Fisheye Panoramic Coverage
- Built-in IR up to 15m with Smart Supplement Light
- 20 display modes with dewarping and 4PTZ
- DeepinView with 2 TOPS and advanced AI functions
- H.265+/H.264+ compression and 20 display modes
- IP67 and IK10 protection for outdoor environments
Further details
1.16mm F2.25 fixed lens with 180° horizontal and vertical field of view , designed to ensure 360° Fisheye panoramic coverage without blind spots, ideal for retail environments, offices and large spaces.
6 MP 2560×2560 resolution with 1/1.8" Progressive Scan CMOS sensor, capable of offering clear images even in 4PTZ dewarping and 360° panorama modes.
With People Counting, Queue Management, Heat Map and Intersection Analysis , automatic reporting and real-time or scheduled data upload.
Broad Network Protocol support (TCP/IP, HTTPS, RTSP, ONVIF Profile S/G/T, IPv4/IPv6, SSL/TLS, SIP) for full integration into VMS systems and professional IP networks.
Technical data sheet
| DS-2CD6365G1-IVS(1.16mm) | |
| Room | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 2560 |
| Min. Illumination | Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 1.16 mm |
| Focal Length & FOV | horizontal FOV 180°, vertical FOV 180° |
| Iris Type | Fixed |
| Openings | F2.25 |
| Depth of Field | 0.2 m to ∞ |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 15 m |
| Supplement Light Number | 3 |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| HEOP | |
| Open Resources | Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 Opendev SDK |
| Deep Learning Structure | Coffee, TensorFlow, PyTorch |
| Programming Language | C,C++ |
| Video | |
| Main Stream | 50 Hz: 25 fps / 60 Hz: 30 fps: Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280 180 Panorama View: 2048 × 1536, 1920 × 1440 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720 Panorama View: 2048 × 1536, 1920 × 1440 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768 Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024 camera 02/camera 03/camera 04: 1024 × 768 4PTZ Fusion View: 2048 × 1536, 1600 × 1200 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps: |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
4 fixed regions for each stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Fisheye Display | |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
| Audio | |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View |
Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| User/Host |
Up to 32 users. |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client |
iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10, IE 11, |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) |
120 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask |
8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB |
| Built-in Microphone | Yes, 4 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| Deep Learning Function | |
| People Counting | Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method |
| Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. |
| Intersection Analysis | Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
| General | |
| Power |
12 VDC ± 20%, 1 A, max. 11.5W,two-core terminal block, |
| Material |
Metal |
| Dimension |
Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") |
| Package Dimension |
260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| Weight |
Approx. 715 g (1.58 lb.) |
| With Package Weight |
Approx. 1206 g (2.66 lb.) |
| Storage Conditions |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
| Cable Length |
0.31 m (1.02 ft.) |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
