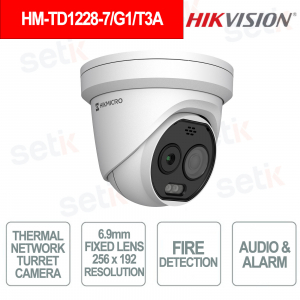

Hikvision HM-TD1228-7/G1/T3A 5MP AI Bi-Spectrum Thermal Camera with Wide-Angle Fixed Lens IP67

Hikvision HM-TD1228-7/G1/T3A 5MP AI Bi-Spectrum Thermal Camera with Wide-Angle Fixed Lens IP67
IN DER FÖRDERUNG -35% Neu

HM-TD1228-7/G1/T3A - is a Thermal & Optical Bi-Spectrum turret camera designed for intelligent perimeter protection, with 256×192 VOx sensor, 12 μm, NETD ≤25 mK and 5MP 2688×1944 optical module with WDR 120 dB . It integrates a 6.9 mm F1.0 thermal fixed lens with 24.9° × 18.7° field of view and an 8 mm F1.6 fixed lens with FOV 39.4° x21.96°, ideal for wide-angle coverage. Thanks to the AI model, GUANLAN offers Human/Vehicle Detection with VCA up to 84 m (humans) and 210 m (vehicles) and false alarm reduction. It supports temperature measurement -20°C/+150°C ±8°C , fire detection up to 10 points and smoking detection , with hybrid IR/White Light illumination up to 60 m. IP67 protection, 802.3at PoE power supply and H.265/H.264 compression make it ideal for outdoor environments and industrial contexts. Hikvision

Technical Data Sheet

Artikel-Nr.: HM-TD1228-7/G1/T3A

Marke: Hikvision

EAN: 6974004647797

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


HM-TD1228-27/G1/T3A – THERMAL & OPTICAL BI-SPECTRUM NETWORK TURRET CAMERA

Hikvision

The HIKMICRO HM-TD1228-7/G1/T3A is a Thermal & Optical Bi-Spectrum turret camera ideal for perimeter protection and intelligent monitoring, with a 256×192 VOx sensor, 12 μm, NETD ≤25 mK and a 5MP 2688×1944 optical module with 120 dB WDR. It integrates a 6.9 mm F1.74 thermal fixed lens with FOV 24.9°×18.7° and an 8 mm F1.6 fixed lens with FOV 39.4°×21.96°, ensuring high-precision wide-angle coverage. Thanks to the AI model, GUANLAN offers Human/Vehicle Detection with VCA up to 84 m and 210 m, reducing false alarms. It supports temperature measurement -20°C/+150°C ±8°C, fire detection up to 10 points , smoking detection and hybrid IR/White Light illumination up to 60 m . IP67 protection, 802.3at PoE power supply, storage up to 512GB and H.265/H.264 compression make it perfect for outdoor and industrial environments.

Main features:

- Thermal sensor VOx 256×192, NETD ≤25 mK

- 5MP 2688×1944 optical module with WDR 120 dB

- Fixed 6.9 mm (thermal) and 8 mm (optical) wide angle lens

- AI GUANLAN with Human/Vehicle Detection up to 84 m / 210 m

- Temperature measurement -20°C/+150°C ±8°C and Fire Detection (10 points)

- Hybrid IR/White Light illumination up to 60 m

- IP67 protection and 802.3at PoE power supply


Further details

Thermal optics :
6.9mm F1.74 with FOV 24.9°×18.7° and 8mm F1.6 fixed lens with FOV 39.4°×21.96° , designed for wide-angle coverage and precise perimeter monitoring.
Thermal resolution:
256×192 NETD ≤25 mK and 5MP 2688×1944 optical resolution with WDR 120 dB , with H.265/H.264 compression for high video quality and bandwidth/storage optimization.
Thermal & Optical Bi-spectrum :
With Image Fusion and Picture in Picture , to combine visible detail and thermal analysis even in total absence of light .
Human Detection :
With AI GUANLAN and VCA up to 84 m , with DORI up to 88 m in detection , ensuring high precision and reduction of false alarms .
Vehicle Detection :
Intelligent up to 2100 m (VAC) and up to 268 m in DORI detection , ideal for car parks, warehouses and industrial areas.
Alarm :
Visual and audible with white light up to 60 m , audio alarm for VCA and Temperature Exception -20°C/+150°C ±8°C , with fire detection up to 10 points.
Two-way audio :
Professional multicodec (G.722.1, G.711, G.726, PCM) with 3.5 mm Mic/Line-In input , for integration into advanced security systems .
Detection Range Table :
Advanced with temperature measurement up to 35 m (1×1 m object) , fire detection up to 13.2 m and smoking detection up to 3.15 m .
Smart Function Range :
With 4 VCA rules (line crossing, intrusion, region entrance/exit) and 21 temperature measurement rules , for intelligent multi-scenario analysis.
 Network:
IPv4/IPv6 with ONVIF Profile S/G/T/M , MicroSD storage up to 512GB , NAS, HTTPS, 802.1x and management of up to 32 users , for complete integration into IP systems.

Technical data sheet

HM-TD1228-7/G1/T3A
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD ≤25 mK (25°C, F1.0)
Focal Length 6.9mm
IFOV 1.74 mrad
Field of View 24.9° × 18.7° (H × V)
Minimum Focusing Distance 1.3 m
Openings F1.0
Digital Zoom ×2, ×4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP, 2688 × 1944
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Focal Length 8 mm
Field of View 39.4°(H) x21.96°(V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator
Light Supplement Hybrid (IR, White light or Smart mode)
IR Distance Up to 60m
Audible and Visual Alarm
White Light Range Up to 60 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ±8°C (±14.4°F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Video and Audio
Main Stream Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1944, 2688×1520, 1920×1080, 1280×720)
Sub-Stream

Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50Hz: 25fps (704×576, 352×288)
60Hz: 30fps (704×480, 352×240)

Video Compression

Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG

Audio Compression

G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Video and Image
Color Palettes

17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Network
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
Network Storage

MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed): Internet Explorer 11
Live view (free plug-in): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0+, Firefox 52.0+

Interface
Alarm Input 1, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5mm Mic in/Line in interface
Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
Power Output 12 VDC, max 1W
General
Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3at, class 4)

Power Consumption

12 VDC ± 25%: 1A to 1.7 A, max. 16W
PoE (802.3at, class 4): 42.5 V to 57 V, 0.28 A to 0.37 A, max. 16W

Working Temperature/Humidity

Temperatures: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less

Protection Level

IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection

Dimension

138.3mm × 138.3mm × 121.6mm

Weight

975.6 g

Detection Range Table/Smart Function Range
VCA Range for Humans

84 m

VCA Range for Vehicles

210 m

Approval
EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)

Safety

CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
LOA: SANS/IEC 60950-1

Environment

CE-RoHS:2011/65/EU,
WEEE: 2012/19/EU,
Reach:Regulation(EC) No 1907/2006

Protection

IP67: IEC 60529-2013
