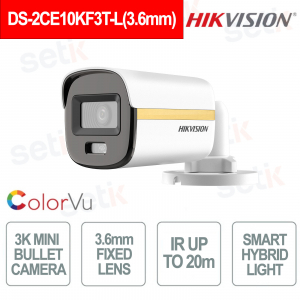

DS-2CE10KF3T-L 3.6mm 3K ColorVu Bullet IP67 with WDR 130dB and Smart Hybrid Light - Hikvision

DS-2CE10KF3T-L 3.6mm 3K ColorVu Bullet IP67 with WDR 130dB and Smart Hybrid Light - Hikvision

 
Optic calculation
BEST PRICE -35% Neu

DS-2CE12KF3T-L(3.6mm) - is a 3K ColorVu Fixed Mini Bullet Camera with 3K CMOS 2960×1665 sensor that guarantees very high definition images and excellent performance in low light conditions. Thanks to the 3.6mm F1.0 fixed lens with 80° horizontal FOV , it offers 24/7 colors and clear vision even at 0.0005 Lux , supported by Smart-Hybrid Light technology with IR and white light up to 20 m. True WDR 130 dB and 3D DNR technology ensures detailed images even in backlighting and complex environments. Equipped with analog HD output, motion detection and IP67 protection, it is ideal for reliable and high-performance outdoor installations. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2CE12KF3T-L(3.6mm)

Marke: Hikvision

EAN: 6931847198039

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-2CE10KF3T-L(3.6mm) – 3K COLORVU CAMERA - 3.6mm FIXED LENS - DUAL-LIGHT - MINI BULLET

Hikvision

The Hikvision DS-2CE10KF3T-L is a 3K ColorVu Fixed Mini Bullet Camera with a 2960×1665 3K CMOS sensor that ensures ultra-defined images and excellent performance in low light conditions. Thanks to the 3.6 mm F1.0 fixed lens with 80° horizontal FOV , it offers 24/7 colors even at 0.0005 Lux and 0 Lux mode with white light , ensuring always color shots. It integrates True WDR 130 dB for clear images in backlighting and 3D DNR for digital noise reduction. Smart-Hybrid Light technology with IR and white light up to 20 m optimizes night-time lighting. With analog HD output , motion detection and IP67 protection, it is ideal for reliable and professional outdoor installations.

Main features:

- 3K 2960×1665 resolution with CMOS sensor

- 3.6mm F1.0 fixed lens with FOV 80°

- ColorVu H24 with 0.0005 Lux sensitivity

- True WDR 130 dB and 3D DNR

- Smart-Hybrid Light IR/White Light up to 20 m

- IP67 protection for outdoor use

Further details

✅ Optics :
 3.6mm F1.0 fixed lens with 80° horizontal field of view , designed for wide-angle coverage and maximum brightness thanks to the large F1.0 aperture , ideal for perimeter and residential video surveillance.
✅ Resolution:
 3K 2960×1665 resolution with advanced CMOS sensor , capable of guaranteeing ultra-defined images , higher level of detail and precise identification of faces and license plates.
✅ Dual-Light Technology :
With IR and white light up to 20m , enabling intelligent adaptive lighting based on the scenario, improving night visibility .
✅ 24/7 ColorVu :
With 0.0005 Lux sensitivity , for always shooting in color even at night , eliminating traditional black and white images .
✅ Smart-Hybrid Light :
 With automatic, IR, white light or combined modes, for dynamic lighting optimization and reduction of light pollution.
✅ Motion Detection :
With programmable areas , which allows precise motion detection and activation of recordings or notifications for continuous security .

Technical data sheet

DS-2CE10KF3T-L(3.6mm)
Room
Image Sensor 3K CMOS
Signal System PAL/NTSC
Max. Resolution 2960 (H) × 1665 (V)
Slow Shutter Max. 16 times
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type 3.6 mm fixed focal lens
Focal Length & FOV horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°
Lens Mount M12
Illuminator
Supplement Light Type Smart, IR, White Light
Supplement Light Range IR: Up to 20m,White Light: Up to 20m
Day/Night Switch

Day, night, auto, schedule
Frame Rate

3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
Privacy Mask

4 programmable privacy masks/8programmable privacy masks
Wide Dynamic Range (WDR)

130 dB
Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT
AGC

Yes
White Balance Auto/Outdoor/Global/Manual
Image Enhancement WDR;Global;HLC;BLC;HLS
Noise Reduction 3D DNR/2D DNR
Image Settings

Brightness; Contrast; Mirror; Smart Light; Anti-Banding
Interface
Video Output 1 HD analog output
Event
Motion Detection 4 programmable motion areas
General
Power

12 VDC ± 25%, 0.47 A, max. 5.7W,
You are recommended to use one power adapter to supply the power for one camera.
Language

English
Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material

Metal
Communication

HIKVISION-C
Dimension

161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")
Weight

Approx. 405 g (0.89 lb.)

Approval
Protection

IP67
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
