DS-2AE4425ITG - The PTZ camera integrates a 4.8–120 mm varifocal lens with 25x optical zoom , ideal for professional video surveillance in large areas, offering clear images in Full HD 1920×1080 thanks to the 1/2.8" progressive scan CMOS sensor. The 120 dB WDR technology guarantees visibility even in backlighting, while the 16x digital zoom allows for further details at long distances. Equipped with full PTZ movement with continuous 360° rotation and intelligent 3D positioning, it ensures precise control of the scene. The bright F1.6–F3.5 lens improves performance in low light conditions, supported by advanced functions such as 3D DNR and BLC/HLC . Compatible with multiple TVI/AHD/CVI/CVBS video outputs, it represents a versatile and high-performance solution for advanced security systems. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2AE4425ITG

Marke: Hikvision

EAN: 6936422180539

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

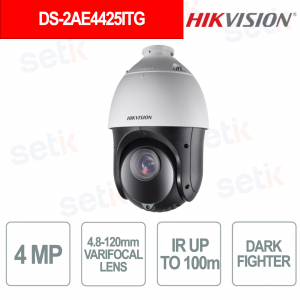

DS-2AE4425ITG – PTZ CAMERA - 4.8-120mm 4MP VARIFOCAL LENS - 25x OPTICAL ZOOM

Hikvision

The Hikvision DS-2AE4425ITG is a professional PTZ camera designed for advanced video surveillance, featuring 4MP (2560×1440) resolution and high performance for any scenario. It integrates a powerful 4.8–120 mm lens with 25x optical zoom , ideal for monitoring long distances with high precision. Thanks to DarkFighter technology and 120 dB WDR , it guarantees clear images even in low light and strong backlighting conditions. The PTZ function with 360° rotation and tilt up to 90° allows total control of the area, while IR night vision up to 100 m ensures continuous security. The IP66 structure makes it perfect for outdoor installations, offering reliability and resistance over time.

Main features:

- 4MP resolution (2560×1440)

- 4.8–120 mm lens with 25x optical zoom

- DarkFighter technology for low light

- WDR 120 dB for backlight management

- PTZ 360° pan / 90° tilt

- IR illumination up to 100m

- IP66 protection for outdoor use

Further details

✅ Varifocal optics :
The camera integrates a 4.8–120 mm lens with 25x optical zoom , which allows you to switch from wide-angle shots to details at long distances , offering maximum operational flexibility in extensive video surveillance scenarios.
✅ Resolution:
 Equipped with 4MP (2560×1440) resolution , it guarantees high definition images with high sharpness and precision of details , essential for professional video identification and analysis.
✅ PTZ :
Thanks to the PTZ function with endless 360° rotation and tilt up to 90° , it allows dynamic and complete monitoring , with presets and programmable movements to cover every critical area.
✅ DarkFighter Technology :
DarkFighter technology ensures excellent performance in low light conditions , improving nighttime visibility and maintaining clear images even in minimal light.
✅ Interface :
 It features multi-standard video output (TVI/AHD/CVI/CVBS) and RS-485 interface with Pelco and Hikvision protocols , ensuring wide compatibility with analog and hybrid systems.
✅ Network Camera :
Designed as a solution that can be integrated into advanced systems, it supports advanced communication protocols for remote management and centralized control, making it ideal for professional and scalable video surveillance infrastructures .

Technical data sheet

DS-2AE4425ITG
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Time PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25 × optical, 16 × digital
Lens
Focal Length 4.8 mm to 120 mm, 25 × optical
FOV Horizontal FOV: 55° to 2.4° (wide-tele)
Vertical FOV: 33° to 1.4° (wide-tele)
Diagonal FOV: 61.5° to 2.8° (wide-tele)
Focus Auto, semi-auto, manual
Openings F1.6 to F3.5
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 100 m
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Video
Frame Rate

50 Hz: 25 fps @(2560 × 1440)
60Hz: 30fps @(2560 × 1440)
Network
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings GC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Interface
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power

12 VDC, max. 20 W (IR: 7 W)
Dimension

Ø 164.5 × 290.6 mm (Ø 6.47" × 11.45")
Without Package Weight

Approx. 2 kg (4.41 lb.)
Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language

English

Approval
Protection

IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
