IPC-HFW5459T1-ASE-PV-PRO - is a camera with 2.8 mm lens offering advanced performance thanks to the 4MP CMOS 1/1.8” sensor with clear images up to 2688×1520 and a wide viewing angle of up to 111° , ideal for extended coverage. It integrates WizColor technology with AI-ISP for color images even in low light conditions, supported by IR illumination up to 80 m and warm light up to 60 m. Intelligent functions such as AcuPick, Face Detection and Perimeter Protection guarantee advanced video analytics and false alarm reduction. Smart H.265+/AI H.265 encoding optimizes bandwidth and storage, while two-way audio and integrated alarms improve interaction. Robust structure with IP67 and IK10 protection, ideal for outdoor environments and harsh conditions. Dahua
INSTALLATEUR FINDEN

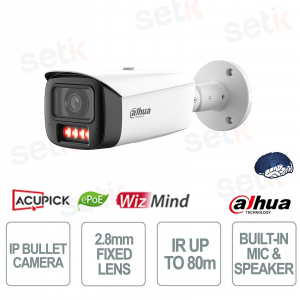

IPC-HFW5459T1-ASE-PV-PRO | 4MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HFW5459T1-ASE-PV-PRO with 2.8mm lens is a 4MP bullet camera designed to offer high-definition images with a wide viewing angle of up to 111° , ideal for outdoor environments. Thanks to WizColor technology with AI-ISP , it guarantees color images even in low light conditions, supported by IR up to 80 m and warm light up to 60 m. It integrates advanced functions such as AcuPick, Face Detection and Perimeter Protection , improving detection accuracy and reducing false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, while two-way audio and integrated alarms increase security. The rugged structure with IP67 and IK10 protection makes it ideal for professional contexts and harsh environments.
Main specifications:
- 4MP CMOS 1/1.8” sensor with resolution up to 2688×1520 and high quality images
- 2.8mm fixed optics with 111° wide viewing angle for extended coverage
- WizColor + AI-ISP technology for color images even at night
- IR illumination up to 80m and warm light up to 60m for advanced vision
- AI WizMind with Perimeter Protection, AcuPick and People Counting
- Advanced AI functions: AcuPick, Face Detection, Perimeter Protection and People Counting
- Smart H.265+/AI H.265 compression for bandwidth and storage reduction
- Two-way audio with built-in microphone and speaker
- IP67 and IK10 protection resistant to water, dust and vandalism
Further details
✅ Optics :
Equipped with a 2.8 mm fixed lens with a wide viewing angle of up to 111° , it allows for extended coverage of the monitored areas, ideal for outdoor environments and professional video surveillance scenarios.
✅ Resolution:
Thanks to the 1/1.8” 4MP CMOS sensor , it offers high definition images up to 2688×1520 at 30 fps , ensuring high sharpness and precise details even in difficult conditions.
✅ Xinghan Large-Scale AI Models-Vision :
It integrates an advanced system based on large-scale AI models with NPU power and edge computing , capable of optimizing data processing and improving real-time scene recognition and analysis.✅ Artificial Intelligence :
It supports advanced functions such as AcuPick, Face Detection, Perimeter Protection and People Counting , enabling accurate detection , target classification and false alarm reduction.✅ WizColor Technology:
The combination of AI-ISP, high-sensitivity sensor and large F1.0 aperture enables color images even at night , improving visibility and detail without loss of quality.✅ Built-in Microphone & Speaker:
It features a built-in dual microphone and speaker , supporting two-way audio , ideal for remote communication and active security applications.✅ Alarm :
It integrates alarm inputs/outputs , advanced detections such as intrusion, motion and anomalies, as well as configurable sound and light alerts for complete protection.
It integrates alarm inputs/outputs , advanced detections such as intrusion, motion and anomalies, as well as configurable sound and light alerts for complete protection.
✅ Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF protocols, it supports up to 4 video streams and remote management via dedicated software, ensuring maximum integration into IP systems.✅ Functions:
It includes 140dB WDR, 3D NR, Smart Illumination, ROI and AI Coding , offering high performance in any shooting scenario and optimizing video quality.
✅ Doors :
Equipped with RJ-45, RS-485, audio and alarm inputs/outputs , as well as MicroSD support up to 1 TB , for complete and flexible connectivity.
Technical data sheet
| MODEL | IPC-HFW5459T1-ASE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8mm |
| Max. Openings | F1.0 |
| Field of View | H: 111°; V: 60°; D: 135° |
| Iris Control | Fixed |
| Close Focus Distance | 2 m (6.56 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU+ |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 4.8W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal + plastic |

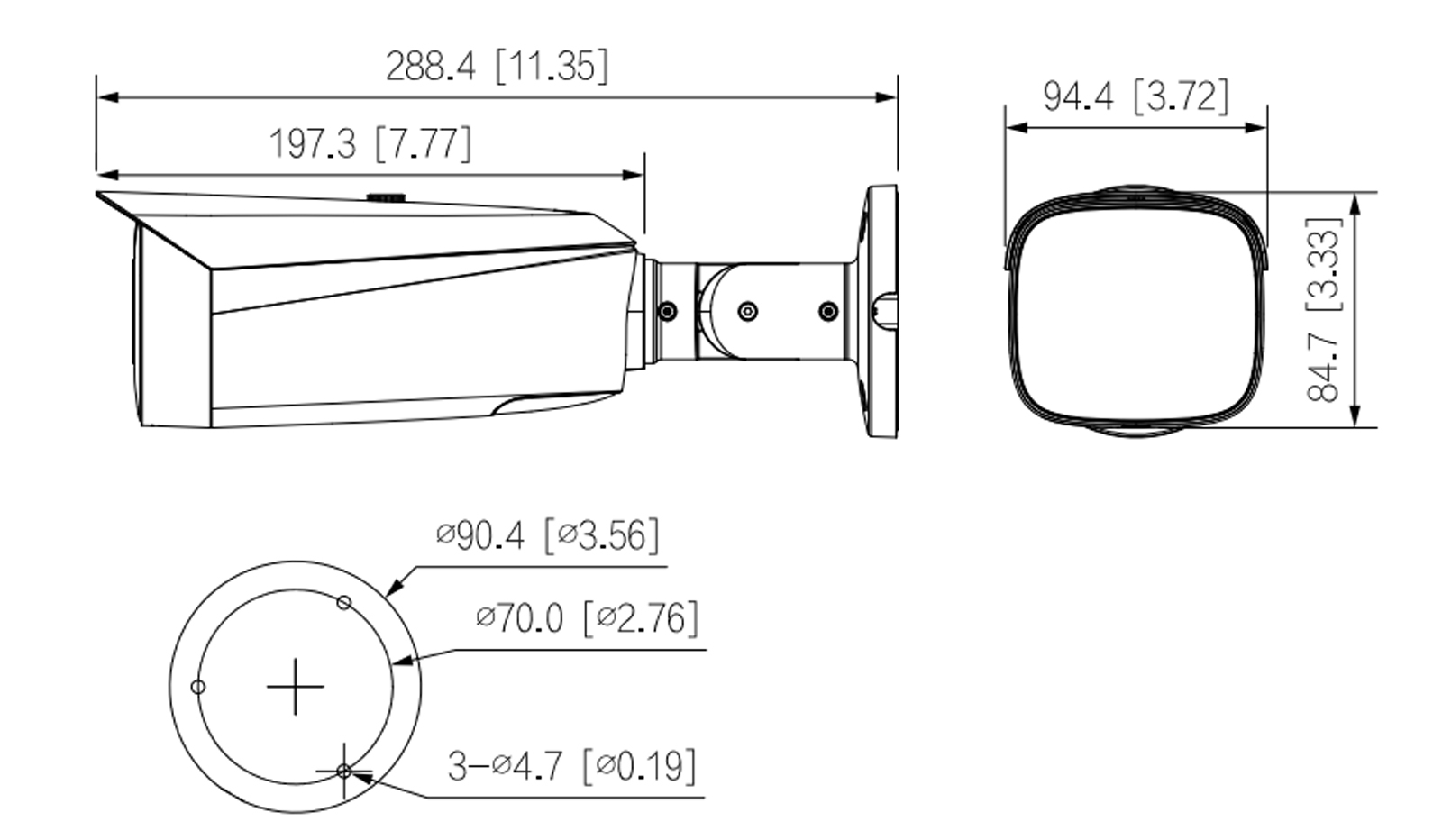

| Product Dimensions | 88.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H) |
| Net Weight | 1.09 kg (2.40 lb) |
| Gross Weight | 1.39 kg (3.06 lb) |
