IPC-HFW5859T1-ASE-PV-PRO - The WizMind 8MP WizColor Bullet camera with 2.8 mm fixed lens offers an advanced solution for video surveillance, thanks to the 1/1.8” 8MP 4K CMOS sensor that guarantees sharp and detailed images even in low light conditions. The wide viewing angle of up to 109° ensures extended coverage, while WizColor technology with AI-ISP allows color shooting even at night by exploiting ambient light. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, video metadata, face detection and perimeter protection. The Smart Dual Light system with IR up to 80 m and warm light up to 60 m ensures effective night vision, supported by WDR 130 dB and 3D NR for always balanced images. The device is completed by the presence of a built-in microphone and speaker with two-way audio and active alarms and IP67 and IK10 protection ideal for environments exteriors. Dahua
INSTALLATEUR FINDEN

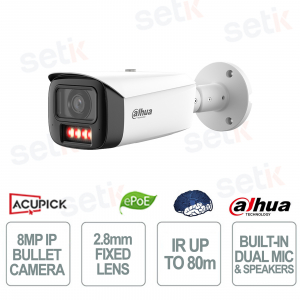

IPC-HFW5859T1-ASE-PV-PRO | 8MP IP BULLET CAMERA WITH 2.8mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - CORROSION-RESISTANT
The Dahua IPC-HFW5859T1-ASE-PV-PRO WizMind 8MP WizColor Bullet camera with 2.8 mm lens is designed for advanced video surveillance, thanks to the 1/1.8” 4K (3840×2160) CMOS sensor that guarantees ultra-high definition images even in low light conditions. The wide viewing angle of up to 109° ensures extended coverage, while WizColor technology with AI-ISP allows color shooting even at night by exploiting ambient light. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, video metadata, face detection and perimeter protection. The Smart Dual Light system with IR up to 80 m and warm light up to 60 m ensures effective night vision, supported by WDR 130 dB and 3D NR for always clear images. The device is completed by the presence of a built-in microphone and speaker with two-way audio and active alarms and IP67 protection. IK10 for outdoor environments.
Main specifications:
- 8MP 4K resolution with 1/1.8” CMOS sensor for ultra-high definition images
- 2.8mm fixed optics with 109° viewing angle for wide coverage
- WizColor technology with AI-ISP for color images even at night
- Xinghan Artificial Intelligence with AcuPick, Face Detection and Perimeter Protection
- Smart Dual Light (IR 80m + warm light 60m) for advanced night vision
- Built-in dual microphone and speaker with two-way audio
- Active sound and light alarm for immediate safety
- IP67 and IK10 protection resistant to weather and vandalism
Further details
✅ Optics :
The 2.8mm fixed lens with a viewing angle of up to 109° ensures wide and uniform coverage , ideal for monitoring large areas with a single camera, reducing blind spots.
✅ Resolution:
The 1/1.8” 8MP 4K (3840×2160) CMOS sensor delivers ultra-high definition images , high light sensitivity and fine details even in low-light environments.
✅ Xinghan Large-Scale AI Models-Vision :
Xinghan AI technology leverages advanced deep learning models and high-performance NPUs , enabling multi-task analysis, accurate recognition and intelligent scene adaptation .
Xinghan AI technology leverages advanced deep learning models and high-performance NPUs , enabling multi-task analysis, accurate recognition and intelligent scene adaptation .
✅ WizColor Technology :
WizColor technology with AI-ISP enables color shooting even at night , using natural and artificial light sources to obtain vivid, detailed images without motion blur .
WizColor technology with AI-ISP enables color shooting even at night , using natural and artificial light sources to obtain vivid, detailed images without motion blur .
✅ Self-Learning :
Thanks to the self-learning system based on deep learning , the camera is able to analyze behaviors and drastically reduce false alarms , improving detection effectiveness over time.
Thanks to the self-learning system based on deep learning , the camera is able to analyze behaviors and drastically reduce false alarms , improving detection effectiveness over time.
✅ Artificial Intelligence :
It integrates advanced AI functions such as AcuPick, video metadata, Face Detection, Perimeter Protection and People Counting , offering a complete intelligent analytics system for professional security.✅ Built-in Microphone & Speaker:
Equipped with a built-in dual microphone and speaker , it supports high-quality two-way audio , ideal for remote communication and active deterrence.✅ Alarm :
It supports intelligent sound and light alarms , with immediate notifications in case of events such as intrusion or line crossing, improving proactive security .
It supports intelligent sound and light alarms , with immediate notifications in case of events such as intrusion or line crossing, improving proactive security .
✅ Network Camera:
Designed as a professional IP camera , it supports advanced protocols (IPv4, IPv6, RTSP, ONVIF, P2P) for perfect integration into modern video surveillance systems.
✅ Functions:
It includes numerous advanced functions such as Smart Dual Light, WDR 130 dB, 3D NR, ROI, EIS, privacy masking and smart search , ensuring always optimised images and detailed data analysis.
✅ Doors :
It features complete interfaces (RJ-45, RS-485, alarm and audio inputs/outputs) and MicroSD support up to 1TB , offering maximum connectivity and system expansion possibilities.
Technical data sheet
| MODEL | IPC-HFW5859T1-ASE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0004 [email protected] (Color, 30 IRE) 0.0002 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M16 |
| Focal Length | 2.8mm |
| Max. Openings | F1.0 |
| Field of View | H: 109°; V: 59°; D: 131° |
| Iris Control | Fixed |
| Close Focus Distance | 3.2 m (10.50 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 130 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 4.8W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |

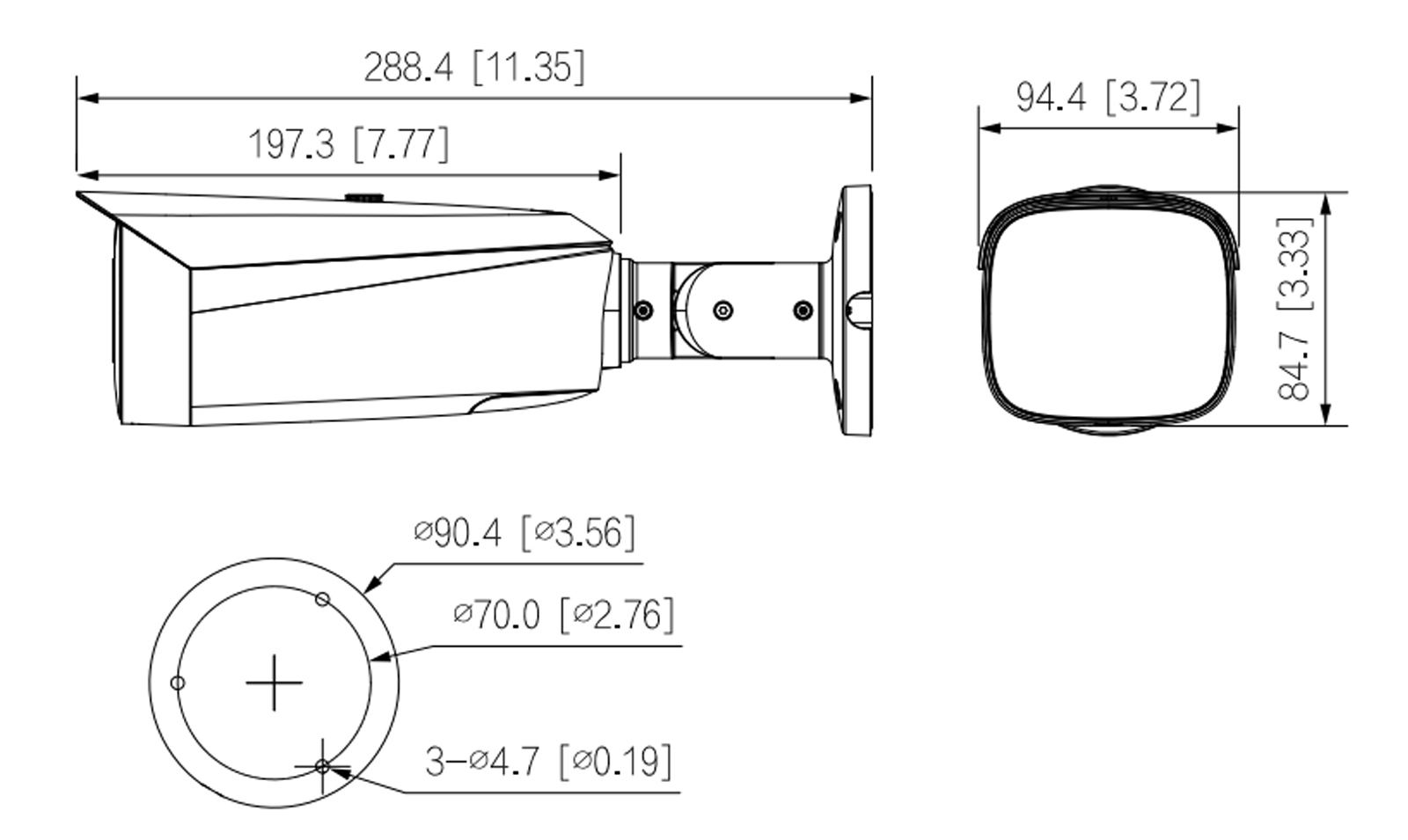

| Product Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H) |
| Net Weight | 1.09 kg (2.40 lb) |
| Gross Weight | 1.39 kg (3.06 lb) |
