IPC-HDBW5859Z-ZHE-PV-PRO - The WizMind 8MP WizColor Dome camera with 2.7-12 mm motorized varifocal lens is designed for professional video surveillance, thanks to the 1/1.8” 4K (3840×2160) CMOS sensor that guarantees clear images even in low light conditions. The wide adjustable viewing angle (98°–48°) ensures maximum installation flexibility, while WizColor technology with AI-ISP allows color shooting even at night. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, face detection, people counting and perimeter protection. The Smart Dual Light system with IR up to 60 m and warm light up to 50 m , supported by WDR 120 dB and 3D NR , guarantees always optimized images. The device is completed by the presence of a built-in microphone and speaker with two-way audio, active alarms and window heating , in addition to the IP67 and IK10 protection for outdoor environments. Dahua
INSTALLATEUR FINDEN

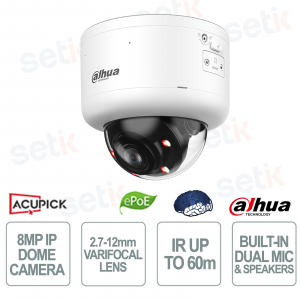

IPC-HDBW5859Z-ZHE-PV-PRO | 8MP IP DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - CORROSION-RESISTANT
The Dahua IPC-HDBW5859Z-ZHE-PV-PRO WizMind 8MP WizColor Dome camera with 2.7-12 mm motorized varifocal lens is an advanced solution for professional video surveillance, equipped with a 1/1.8” 4K (3840×2160) CMOS sensor that guarantees ultra-high definition images even in low light conditions. The adjustable viewing angle (98°–48°) offers maximum flexibility, while WizColor technology with AI-ISP allows color shooting even at night. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, video metadata, face detection and perimeter protection. The Smart Dual Light system with IR up to 60 m and warm light up to 50 m , supported by WDR 120 dB and 3D NR , ensures always optimized images. The device is completed by a built-in microphone and speaker with two-way audio, active alarms and window heating function . in addition to IP67 and IK10 protection.
Main specifications:
- 8MP 4K resolution with 1/1.8” CMOS sensor for ultra-high definition images
- 2.7-12 mm motorized varifocal lens with 98°–48° viewing angle
- WizColor technology with AI-ISP for color images even at night
- Xinghan Artificial Intelligence with AcuPick, Face Detection and Perimeter Protection
- Smart Dual Light (IR 60m + warm light 50m) for advanced night vision
- Built-in dual microphone and speaker with two-way audio
- Active sound and light alarm for immediate safety
- Integrated window heating for always optimal visibility
- IP67 and IK10 protection resistant to weather and vandalism
Further details
✅ Optics :
The 2.7-12mm motorized varifocal lens allows for precise adjustment of the viewing angle (98°–48°) , providing maximum flexibility to adapt to any scenario, from monitoring large areas to targeted detail.
✅ Resolution:
The 1/1.8” 8MP 4K (3840×2160) CMOS sensor ensures ultra-high definition images , high light sensitivity and excellent performance even in low light conditions.
✅ Xinghan Large-Scale AI Models-Vision :
Xinghan AI technology integrates advanced deep learning models and high-performance NPUs , enabling multi-task analysis, accurate recognition and intelligent scene adaptation in real time.
Xinghan AI technology integrates advanced deep learning models and high-performance NPUs , enabling multi-task analysis, accurate recognition and intelligent scene adaptation in real time.
✅ WizColor Technology :
WizColor technology with AI-ISP enables color shooting even at night , using minimal light sources to obtain vivid, detailed images without motion blur even over long distances.
WizColor technology with AI-ISP enables color shooting even at night , using minimal light sources to obtain vivid, detailed images without motion blur even over long distances.
✅ Self-Learning :
Thanks to the self-learning system based on deep learning , the camera analyses behaviours and drastically reduces false alarms , continuously improving accuracy and efficiency.
Thanks to the self-learning system based on deep learning , the camera analyses behaviours and drastically reduces false alarms , continuously improving accuracy and efficiency.
✅ Artificial Intelligence :
It integrates advanced AI features such as AcuPick, video metadata, Face Detection, Perimeter Protection and People Counting , offering a complete system for intelligent analytics and proactive security.✅ Built-in Microphone & Speaker:
Equipped with a built-in dual microphone and speaker , it supports high-quality two-way audio , ideal for remote communication and active deterrence.✅ Alarm :
It supports intelligent sound and light alarms , with advanced events such as intrusion, line crossing and motion detection, ensuring immediate and preventive protection .
It supports intelligent sound and light alarms , with advanced events such as intrusion, line crossing and motion detection, ensuring immediate and preventive protection .
✅ Network Camera:
Designed as a professional IP camera , it supports comprehensive protocols (IPv4, IPv6, RTSP, ONVIF, P2P) for seamless integration into modern video surveillance systems.
✅ Functions:
It includes numerous advanced functions such as Smart Dual Light, WDR 120 dB, 3D NR, ROI, EIS, privacy masking and smart search , ensuring always optimised images and advanced data analysis.
✅ Doors :
It has complete interfaces (RJ-45, RS-485, alarm and audio inputs/outputs) , MicroSD support up to 1TB and PoE/ePoE power supply , offering maximum connectivity and installation versatility.
Technical data sheet
| MODEL | IPC-HDBW5859Z-ZHE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° *Remote adjustment (Max. 1000 cycles) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ16 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.2 |
| Field of View | H: 112°–48°; V: 58°–27°; D: 137°–55° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.16 m (0.53 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 130 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Defog (Glass Heating) | Window heating: Quickly removes water, ice, snow, and mist from the window to keep images clear |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 5.3W (12VDC); 6.4W (PoE) Max. (IR on + siren and light active deterrence + intelligence on + window heating): 21.3 W (12 VDC); 24.2W (PoE) Heating: 2.1W (12VDC); 2.4W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 150mm × Φ159mm (5.91" × Φ6.27") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
