SDT6E425-8P-MB-A-PV1 - The dual-lens camera is an advanced solution for professional video surveillance, equipped with a dual-lens system with an 8MP 180° panoramic channel and a 4MP PTZ channel with 25x optical zoom , which allows continuous monitoring and automatic tracking of subjects. Thanks to Smart Dual Light+ technology with IR illumination up to 250m and warm light up to 100m , it guarantees detailed images even in low visibility conditions. The integration of Xinghan AI models and intelligent functions such as WizTracking, AcuPick and perimeter protection offers advanced analysis and false alarm reduction. The active deterrent system with audible alarm and red/blue lights increases the level of real-time security, while the dual microphones and integrated speaker enable two-way communication. The rugged structure with IP67 and IK10 protection makes it ideal for complex and high-security outdoor environments. Dahua
INSTALLATEUR FINDEN

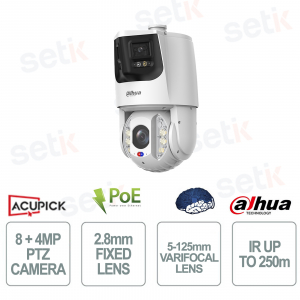

SDT6E425-8P-MB-A-PV1 | 8+4MP DUAL LENS IP PTZ CAMERA - ARTIFICIAL INTELLIGENCE - ACTIVE DETERRENCE - 25x ZOOM
The Dahua SDT6E425-8P-MB-A-PV1 dual-lens camera is designed for advanced video surveillance, thanks to the dual-lens system with an 8MP 180° panoramic channel and a 4MP PTZ channel with 25x optical zoom , which allows continuous monitoring and automatic tracking of subjects. Equipped with Smart Dual Light+ with IR up to 250m and warm light up to 100m , it guarantees clear images even at night and in critical conditions. The integration of AI Xinghan models with functions such as WizTracking, AcuPick and perimeter protection allows for intelligent analysis and reduction of false alarms. The active deterrent system with red/blue lights and audible alarm increases real-time security, while the dual microphones and integrated speaker support two-way communication. The rugged structure with IP67 and IK10 protection ensures reliability even in complex outdoor environments.
Main specifications:
- 8MP + 4MP dual lens with 180° panoramic view and 25x PTZ
- Smart Dual Light+ with IR up to 250m and warm light up to 100m
- Xinghan Artificial Intelligence with advanced video analysis functions
- WizTracking and AcuPick for automatic tracking and intelligent search
- Active Deterrence with audible alarm and red/blue lights
- Two-way audio with dual microphones and integrated speaker
- IP67 and IK10 protection for outdoor environments and extreme conditions
Further details
✅ Double optics :
Advanced dual-lens with 8MP 180° panoramic channel and 4MP PTZ channel , allows simultaneous monitoring of the entire scene and detail zoom , ensuring complete coverage and precise analysis of subjects in real time.
✅ Resolution:
Combined resolution of 8MP + 4MP with images up to 4096×1860 for panoramic view and 4MP for detail , ensuring high video quality and optimal definition in every operational scenario.
✅ Xinghan Large-Scale AI Models-Vision :
It leverages deep learning algorithms and an advanced NPU , improving analysis, recognition and multi-task management capabilities , while optimizing performance and power consumption.
It leverages deep learning algorithms and an advanced NPU , improving analysis, recognition and multi-task management capabilities , while optimizing performance and power consumption.
✅ Smart Dual Light+ :
With IR illumination up to 250m and warm light up to 100m , it automatically activates white light when detecting a target, ensuring color videos even at night and reducing light pollution.
With IR illumination up to 250m and warm light up to 100m , it automatically activates white light when detecting a target, ensuring color videos even at night and reducing light pollution.
✅ Smart Tracking:
Intelligent Smart Tracking that connects the panoramic channel to the PTZ for automatic subject tracking , allowing zoom, rotation and dynamic focus for always detailed images in real time.
Intelligent Smart Tracking that connects the panoramic channel to the PTZ for automatic subject tracking , allowing zoom, rotation and dynamic focus for always detailed images in real time.
✅ PTZ :
Professional PTZ system with continuous 360° rotation and 32x optical zoom , allows precise control and dynamic monitoring , ideal for large areas and complex scenarios.
Professional PTZ system with continuous 360° rotation and 32x optical zoom , allows precise control and dynamic monitoring , ideal for large areas and complex scenarios.
✅ Artificial Intelligence :
Advanced Artificial Intelligence with features such as face detection, perimeter protection, SMD 4.0 and behavioral analysis , ensures accurate detection and reduction of false alarms .✅ Active deterrence :
With flashing red/blue lights and configurable audible alarm , it increases security by deterring intrusions in real time.✅ Built-in microphone and speaker:
Integrated microphone and speaker with two-way audio , allow direct communication and sound recording, improving control and event management.
✅ Network Camera:
Advanced IP Network Camera with RJ-45 port, support ONVIF and comprehensive network protocols , ensures smooth integration with NVR and management software for efficient remote control.
✅ Doors :
Comprehensive ports and interfaces with alarm inputs/outputs, RS-485, audio I/O and PoE++ power supply , ensure maximum compatibility and flexibility of integration into professional systems.
Technical data sheet
| SDT6E425-8P-MB-A-PV1 | |
| Room | |
| Image Sensor | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
| Pixel | Overview channel: 8MP; Detail channel: 4 MP |
| Max. Resolution | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4GB; Detail channel: 4 GB |
| RAM | Overview channel: 2GB; Detail channel: 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Min. Illumination | Channel Overview: 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) Detail channel: 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 100 m (328.08 ft) (warm light); 250 m (820.21 ft) (IR) |
| Illuminator On/Off Control | Overview channel: Manual; Car; Off Detail channel: Zoom Prio; Manual; Car; Off |
| Illuminator Number | Overview channel: 2 (IR light); 2 (White light); Detail channel: 6 (Dual light fusion) |
| Lens | |
| Focal Length | Overview channel: 2.8mm; Detail channel: 5mm–125mm |
| Max. Openings | Overview channel: F1.4; Detail channel: F1.6-F3.6 |
| Field of View | Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | Overview channel: NA; Detail channel: 25× |
| Focus Control | Auto; manual; semi-auto |
| Close Focus Distance | Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Overview channel: NA; Detail channel: Auto; manual; iris first |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Speed Control | Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Intelligence | |
| Video Metadata | Channel Overview: NA Detail channel: Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles and 8 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies. |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Face Detection | Channel Overview: NA Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Vehicle Density | Overview channel:Vehicle density; parking upper limit; traffic congestion; vehicle status alarm Detail channel: NA |
| Construction Monitoring | Channel Overview: NA Detail channel: Detects 6 helmet colors: Red, orange, yellow, blue, white, and black. An alarm will be triggered when a person is not wearing a helmet or when the color of the helmet that they are wearing does not match the configured color. It also supports compliance detection for work uniforms. Up to 5 work uniform sample libraries can be uploaded, which together can contain up to 1,000 images (the images must be 1080p and in the JPG format). An alarm will be triggered when the similarity between the detected work uniform and the samples in the library is below the set threshold (that is, below the minimum compliance standard for work uniforms). The system supports detecting the attributes of work uniforms such as the color of the uniform, and whether or not the person is wearing a mask and wearing shoe covers. An alarm will be triggered when the target is detected as not meeting the set requirements. It also detects and triggers alarms when only one person is in the construction site, and when no one is present in the detection area such as when a worker leaves their post or an area is left unmanned. |
| Smart Tracking | Linkage tracking, Auto tracking |
| Crowd Distribution Map | Overview channel: Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area; crowd status Detail channel: NA |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | Channel Overview: NA Detail channel: After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time. |
| Active Deterrence | |
| Light Warning | Red-Blue light warning; Flash duration: 5s–30s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
| Video | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 3 stream |
| Resolution | Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024×448; D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | Overview channel: H264: 128 kbps–16.384 kbps H265: 51 kbps–13.312 kbps； Detail channel: H264: 96 kbps–16.384 kbps H265: 38 kbps–10.240 kbps; |
| Day/Night | Overview channel: Auto; Color; B/W; Electronic Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| HLC | Yes |
| WDR | Overview channel: DWDR; Detail channel: 120 dB |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain first |
| Noise Reduction | Overview channel: 2D NR; 3D NO Detail channel: Auto: 2D NR; 3D NO |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Channel Overview: NA Detail channel: Gyroscope EIS |
| Smart Dual Light | Yes |
| Defog | Overview channel: Electronic Detail channel: Electronic |
| Digital Zoom | Overview channel: NA; Detail channel: 16× |
| Image Rotation | Overview channel: NA Detail channel: 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Network | |
| Network | RJ-45 (100/1,000 Base-T) |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | Micro SD card (512GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | Android; iOS |
| Certification | |
| Certifications | CE:EN55035;EN IEC61000-3-2;EN55032;EN60950;EN62368-1 |
| Port | |
| RS-485 | 1 (Bit range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire, built-in mic (mutually exclusive)) |
| Audio Output | 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive)) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; presets; tours; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 36VDC/2.23A ±25%; PoE++(802.3bt) |
| Power Consumption | Basic power consumption: 19 W Max. power consumption: 40 W (IR + intelligent functions + PTZ + Siren and Light Active Deterrence) |
| Power Adapter | Included |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67;IK10;TVS 6000V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Casing Material | Plastic; aluminum alloy |
| Product Dimensions | 247 mm × 202 mm × 359.8 mm (9.72" × 7.95" × 14.17") (L × W × H) |
| Net Weight | 5.3 kg (11.68 lb) |
| Gross Weight | 7.12 kg (15.7 lb) |
