HAC-HFW1500T-S3 - is a camera with 3.6mm lens is an HDCVI bullet camera designed to ensure reliable and high definition video surveillance thanks to the 5MP resolution (2880×1620) and the advanced CMOS sensor, ideal for residential and commercial environments. Equipped with Starlight technology and Smart IR up to 30 meters , it ensures clear and detailed images even in low light conditions. The advanced 3DNR algorithm reduces noise, improving video quality, while the Super Adapt function automatically optimizes performance. Compatible with CVI/CVBS/AHD/TVI , it offers maximum integration flexibility, with IP67 protection for outdoor installations and weather resistance. Dahua

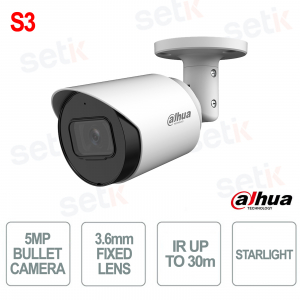

HAC-HFW1500T-S3 | 5MP HDCVI BULLET CAMERA FIXED LENS 3.6mm - SMART DUAL LIGHT

The Dahua HAC-HFW1500T-S3 with 3.6mm lens is an HDCVI bullet camera designed to offer high-definition video surveillance thanks to the 5MP resolution (2880×1620) and the advanced CMOS sensor, ideal for residential and commercial contexts. Thanks to Starlight technology and the Smart IR system with a range of up to 30 meters , it guarantees clear images even in low light conditions. The advanced 3DNR algorithm reduces noise, improving video quality, while the Super Adapt function automatically optimizes performance. Compatible with CVI/CVBS/AHD/TVI , it offers maximum flexibility, while the IP67 protection ensures resistance to atmospheric agents for outdoor installations.
Main specifications:
- 5MP resolution for detailed, high-definition images
- 3.6mm fixed lens with wide viewing angle
- Starlight technology for color vision even in low light
- Smart IR up to 30m for uniform night vision
- Advanced 3DNR for video noise reduction
- Super Adapt for automatic performance adjustment
- Multi-format compatibility CVI/CVBS/AHD/TVI
- IP67 dust and water resistant protection
- HDCVI transmission over coaxial cable with long distance
- Metal frame for strength and durability
Further details

Technical data sheet
| MODEL | HAC-HFW1500T-S3 |
| Room | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 65 dB |
| Illumination Distance | IR: 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm |
| Max. Openings | F1.6 |
| Field of View |
H: 90.1°; V: 47.8°; D: 109.3° |
| Iris Control | Fixed |
| Close Focus Distance | 1.3 m (4.27 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@25fps; [email protected]; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto; White balance area |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: EN 55032; EN 55035; |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 3.2 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 174.5 mm × 70.6 mm × 72.3 mm (6.87" × 2.78" × 2.85") (L × W × H) |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
