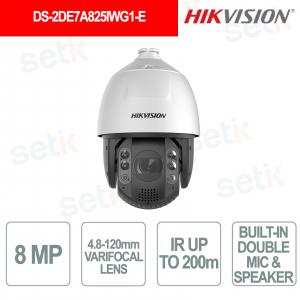

DS-2DE7A825IWG1-E PTZ 8MP 25X DarkFighter AcuSense 4.8-120mm IR 200m IP67 IK10 - Hikvision

BEST SELLER -35%

DS-2DE7A825IWG1-E - is a professional PTZ Speed Dome camera with 4.8-120mm motorized lens and 25x optical zoom, designed for advanced monitoring of large areas and critical infrastructures. Equipped with an 8MP Ultra HD sensor and DarkFighter and AI-ISP technologies, it offers extremely clear images even in low light conditions, while AcuSense artificial intelligence distinguishes people and vehicles, reducing false alarms. The PTZ system with 360° rotation, IR up to 200 meters , WDR 120 dB and Auto Tracking guarantees precise control and continuous video surveillance even in complex environments. Complete with integrated dual microphone , audio speaker with light and sound alarm, H.265+ compression, microSD support up to 512GB and IP67 IK10 protection for professional outdoor use. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2DE7A825IWG1-E

Marke: Hikvision

EAN: 6936422189730

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

INSTALLATEUR FINDEN

https://www.setik.biz/de/kameras/12988-hikvision-ds-2de7a825iwg1-e-ds-2de7a825iwg1-e-ptz-8mp-25x-darkfighter-acusense-48-120mm-ir-200m-ip67-ik10-hikvision.html

2.312,39 €

3.557,52 € -35%

Steuern inbegriffen

EINLOGGEN UND DEN PREIS ENTDECKEN

Description Product Details Technical Sheet

DS-2DE7A825IWG1-E – 8MP 2.8-12mm VARIFOCAL LENS PTZ SPEED DOME CAMERA - ACUSENSE - DARKFIGHTER

The Hikvision DS-2DE7A825IWG1-E is a professional PTZ Speed Dome camera with a 4.8-120mm motorized lens and 25x optical zoom, ideal for monitoring large areas such as airports, infrastructure, car parks and industrial sites. Thanks to the 8MP Ultra HD sensor, DarkFighter and AI-ISP technologies, it guarantees extremely clear images even in low light conditions. The intelligent AcuSense system with deep learning distinguishes people and vehicles, reducing false alarms, while the PTZ with 360° rotation, IR up to 200 meters and Auto Tracking ensures advanced control and continuous monitoring. Complete with a dual integrated microphone , audio speaker with light and sound alarm, H.265+ compression, microSD support up to 512GB and professional IP67 IK10 protection.

Main features:

- 8MP Ultra HD 3840x2160 resolution

- 4.8-120mm motorized lens with 25x optical zoom

- DarkFighter technology and AI-ISP for low light

- AcuSense AI technology with people and vehicle detection

- 360° PTZ rotation with Auto Tracking

- IR night vision up to 200 meters

- H.265+ video compression

- WDR 120 dB and EIS stabilization

- Built-in dual microphone and audio speaker

- Active alarm with white light and sound warning

- Face Capture and People Counting

- MicroSD support up to 512GB

- IP67 vandal-proof IK10 protection

- ONVIF, Hik-Connect and HikCentral Pro compatibility

Further details

✅ Varifocal optics :

4.8-120mm motorized lens with 25x optical zoom designed for professional monitoring over long distances, allowing you to capture extremely precise details thanks to 16x digital zoom , intelligent autofocus and advanced focusing speed.

✅ Resolution:
Ultra HD 8MP 3840x2160 resolution capable of offering very high definition images and video fluidity up to 30fps , ideal for monitoring airports, infrastructures, car parks, industrial areas and high security environments.

✅ PTZ System:

Professional PTZ system with 360° rotation and tilt up to 90° developed to ensure complete coverage of the monitored area, with support for 300 presets , automatic patrols, intelligent scans, 3D Positioning function and advanced movement management.

✅ DarkFighter Technology :

AI-ISP technology designed for exceptional low-light performance, with sensitivity down to 0.005 Lux and IR illuminator up to 200 meters for bright, detailed images even at night.

✅ AcuSense Technology:

Deep learning-based technology developed to distinguish people and vehicles from irrelevant movements, improving the accuracy and efficiency of the security system and drastically reducing false alarms.

✅ Deep Learning Function:

With advanced intelligent analytics for facial recognition, people counting, intrusion detection, line crossing, density control and real-time complex event management.

✅ Built-in dual microphone and speaker :

Built-in dual array microphone and professional speaker designed for high-quality two-way audio, ambient listening up to 8 meters and sound diffusion up to 30 meters , ideal for active security and remote communication.

✅ Alarm :

Integrated audio and light alarm system with white flashing light and automatic audible warning that can be activated in the event of intelligent events, intrusions or suspicious detections to increase the level of deterrence.

✅ Face Capture:

Intelligent capable of detecting up to 5 faces simultaneously , automatically selecting the best frame to optimize identification, verification and advanced security management.

✅ People Counting:

Professional People Counting with support for up to 8 detection areas , people density monitoring, real-time counting and analysis of crowding or prolonged stay anomalies.

✅ Smart Tracking :

Smart Tracking is designed to intelligently follow moving people and vehicles using Auto Tracking and Manual Tracking, keeping the subject always in the center of the frame.

✅ Network Protocol:
Professional IP Network Camera compatible with ONVIF, Hik-Connect, HikCentral Pro, ISAPI and HTTPS , equipped with H.265+ video compression, microSD support up to 512GB , PoE+ and professional IP67 IK10 protection for advanced outdoor installations.

Technical data sheet

DS-2DE7A825IWG1-E
Room
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR
Shutter Time	1/3 s to 1/300,000 s
Day & Night	IR cut filter
Zoom	25 × optical, 16 × digital
Angle Adjustment	Yes
Lens
Focal Length	4.8 to 120 mm
FOV	Horizontal field of view: 55.3° to 3.0°, vertical field of view: 32.2° to 1.7°, diagonal field of view: 62.3° to 3.4°
Focus	Auto, semi-auto, manual
Openings	Max F1.6
Zoom Speed	Approx. 3.5 s
Illuminator
Supplement Light Type	IR
Supplement Light Range	IR Distance: up to 200 m
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Pan Speed	Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan	Yes
Presets	300
Preset Freezing	Yes
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Park Action	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning	Yes
PTZ Status Display	Yes
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memory	Yes
Video
Main Stream	50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704×576, 640×480, 352×288)
Third Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate	32 kbps to 16384 kbps
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Substream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	8 fixed regions for each stream
Audio
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Audio Sampling Rate	MP2L2: 16kHz,AAC-LC: 16kHz,PCM: 8kHz, 16kHz,MP3: 8kHz, 16kHz
Environment Noise Filtering	Yes
Network
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser	IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Defog	Digital Defog
Image Stabilization	EIS
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus	Yes
Regional Exposure	Yes
VR View	360° Real Scene Stitched Panoramic Image
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Speaker	1 built-in speaker with effective distance reaching max. 30 meters
Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm	2 inputs, 1 output
Reset	Yes
Built-in Microphone	2 built-in Microphone: Arrayed dual-microphone up to 8 meters
Event
Basic Event	Motion detection, video tampering alarm, exception, alarm input and output
Smart Event	line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan, tracking)
Deep Learning Function
Face Capture	Detects up to 5 faces simultaneously, Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Regional People Counting	Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports searching real-time number of people
Linkage and Tracking
Smart Tracking	Manual tracking, auto-tracking
General
Power	36 VDC ± 25%, max. 42 W, Hi-PoE
Dimension	Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Weight	Approx. 5 kg (11.03 lb.)
Material	ADC12
Operating Conditions	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist	Yes
Approval
EMC	CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021),RCM (AS/NZS CISPR 32: 2015)
Safety	CB (IEC 62368-1:2014), CE-LVD (EN 62368-1:2014 + A11:2017)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6000 V lightning protection, surge protection and voltage transient protection
