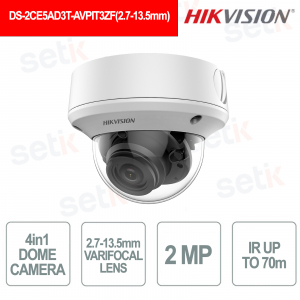

DS-2CE5AD3T-AVPIT3ZF Dome 2MP Varifocal 2.7-13.5mm IR 70m IK10 IP67 - Hikvision

DS-2CE5AD3T-AVPIT3ZF Dome 2MP Varifocal 2.7-13.5mm IR 70m IK10 IP67 - Hikvision
BEST SELLER -35%

DS-2CE5AD3T-AVPIT3ZF(2.7-13.5mm) - 2MP Ultra Low Light Dome camera with 2.7-13.5mm motorized lens offers clear images in Full HD 1080p with automatic autofocus during zoom, ideal for professional indoor and outdoor applications. Thanks to the real 120dB WDR technology and the 3D DNR system, it guarantees clear videos even in strong backlight conditions and extremely low brightness down to 0.005 Lux . The EXIR 2.0 IR illuminator up to 70 meters ensures high performance in night vision, while the double IP67 and IK10 vandal-proof protection guarantees maximum resistance against water, dust and vandalism. Compatible with TVI/AHD/CVI/CVBS signals, it represents a reliable and versatile solution for advanced video surveillance systems. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2CE5AD3T-AVPIT3ZF(2.7-13.5mm)

Marke: Hikvision

EAN: 6954273677633

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DS-2CE5AD3T-AVPIT3ZF(2.7-13.5mm) – 4IN1 VARIFOCAL DOME CAMERA 2.7-13.5mm 2MP

Hikvision

The Hikvision DS-2CE5AD3T-AVPIT3ZF 2MP Ultra Low Light Dome with 2.7-13.5 mm motorized lens guarantees clear images in Full HD 1080p with automatic autofocus during zoom, ideal for professional indoor and outdoor video surveillance applications. Thanks to the real 120 dB WDR technology and the 3D DNR system, it offers clear videos even in the presence of strong backlighting and extremely low brightness down to 0.005 Lux . The EXIR 2.0 IR illuminator up to 70 meters ensures high performance in night vision, while the double IP67 and IK10 vandal-proof protection guarantees maximum resistance against water, dust and impacts. Compatible with TVI / AHD / CVI / CVBS signals, it represents a reliable and versatile solution for advanced security systems.

Main features:

- 2MP Full HD progressive CMOS sensor

- 2.7-13.5 mm motorized optics

- Autofocus while zooming

- Video resolution 1920x1080

- 120dB Real WDR Technology

- EXIR 2.0 night vision up to 70 meters

- Ultra low light sensitivity down to 0.005 Lux

- 3D Digital Noise Reduction (DNR)

- TVI/AHD/CVI/CVBS compatibility

- IP67 protection against water and dust

- IK10 vandal-proof protection

- Metal structure for professional installations


Further details

✅ Fixed optics :
The Hikvision camera integrates a 2.7-13.5 mm varifocal motorized lens with an adjustable viewing angle from 102° to 31° , ideal for adapting the frame to different monitoring scenarios with automatic autofocus function during zoom .
✅ Resolution:
Thanks to the 2 MP Full HD progressive CMOS sensor, the camera guarantees detailed images with 1920x1080 resolution, offering high video quality even in critical lighting conditions.
✅ Interface :
The system features analog video output compatible with TVI, AHD, CVI and CVBS standards, ensuring maximum integration with existing DVRs and analog HD video surveillance systems.
✅ Protection:
The dual IP67 and IK10 vandal-proof certification guarantees high resistance against water, dust, shocks and tampering attempts, making the camera ideal for professional indoor and outdoor installations.
✅ 4in1 Technology :
The 4in1 switchable TVI/AHD/CVI/CVBS technology offers maximum flexibility and compatibility with different analog video surveillance infrastructures, facilitating updates and replacements without modifying the existing system.

Technical data sheet

DS-2CE5AD3T-AVPIT3ZF(2.7-13.5mm)
Room
Image Sensor 2.0 megapixel progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;
NTSC: 1/30 s to 1/50,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 340°,tilt: 0° to 75°,rotate: 0° to 355°
Signal System PAL/NTSC
Lens
Lens Type 2.7 mm to 13.5 mm
Focal Length & FOV 102° to 31°
Lens Mount Φ 14
Image Parameters Switch STD/HIGH-SAT
Image Settings

Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Frame Rate

PAL: 1080p@25fps
NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥120 dB

Image Enhancement

Yes

AGC

High/Medium/Low

Interface
Video Output TVI/AHD/CVI/CVBS
General
Power

12 VDC ±25%,
*You are recommended to use one power adapter to supply the power for one camera.

Material

Metal

Dimension

Ø145 mm × 111.3 mm (5.70" × 4.37")

Weight

Approx. 830 g (1.83 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Language

English

Consumption

Max. 7.7 W

IR Range

Up to 70 m

Approval
Protection

IP67; IK10

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
