TPC-BF1241-LB7F6-DW-S8-V1 - 4MP Thermal Camera 7mm + 6mm Lens AI PoE IP67 IK10 - Dahua

TPC-BF1241-LB7F6-DW-S8-V1 - 4MP Thermal Camera 7mm + 6mm Lens AI PoE IP67 IK10 - Dahua

 
Optic calculation
-56%

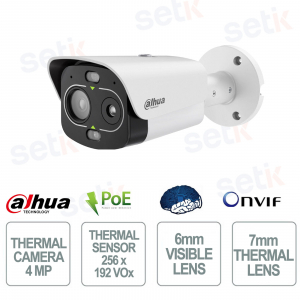

TPC-BF1241-LB7F6-DW-S8-V1 - is a hybrid IP thermal camera from the Eureka series designed for advanced monitoring of sensitive areas, fire prevention and perimeter protection. It integrates a 256×192 VOx 12μm thermal sensor with a 7 mm fixed thermal lens and a 4 MP (2688×1520) visible camera with a 6 mm fixed lens , offering detailed images and high-precision thermal analysis. Thermal and visible fusion technology, together with AI functions for people and vehicle classification , intrusion, fire and smoke detection, ensures intelligent and reliable surveillance. The equipment is completed by IR illuminator up to 50 m , white light up to 30 m, integrated dual microphone , MicroSD slot up to 256 GB and IP67 and IK10 protections, ideal for professional installations in outdoor and industrial environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-BF1241-LB7F6-DW-S8-V1

Marke: Dahua

EAN: 6937552429062

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-BF1241-LB7F6-DW-S8-V1 | POE THERMAL BULLET IP CAMERA WITH 6mm FIXED LENS - 7mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua TPC-BF1241-LB7F6-DW-S8-V1 is a hybrid thermal IP camera from the Eureka series designed for advanced perimeter protection, fire detection and critical area monitoring. It integrates a 256×192 VOx 12μm thermal sensor with 7mm thermal lens and a 4MP visible camera with 6mm lens , offering detailed images and high-precision thermal analysis. Thermal and visible fusion technology, combined with AI with people and vehicle classification , intrusion, smoke and heat detection, ensures intelligent and reliable surveillance. The equipment also includes IR up to 50m , white light up to 30m, integrated dual microphone , MicroSD slot up to 256GB and IP67 and IK10 protections, ideal for professional installations in outdoor and industrial environments.

Main specifications:

- VOx thermal sensor 256×192

- 4 MP optical camera (2688×1520)

- 7mm thermal optics and 6mm visible optics

- AI with people and vehicle classification

- Fire and smoke detection

- IR and white light up to 50m

- Built-in dual microphone

- MicroSD up to 256 GB

- PoE 802.3af

- IP67 and IK10 protection

Further details

✅ Optics :
 The visible camera integrates a 4 MP (2688×1520) sensor with a 6 mm F1.6 fixed lens , ideal for obtaining detailed images and precise monitoring of perimeter areas and sensitive sites.
✅ Thermal Optics :
 The thermal sensor uses a 7mm F1.0 fixed lens with high sensitivity NETD ≤25 mK , enabling accurate detection of thermal anomalies, hot spots and potential fire outbreaks.
✅ Resolution:
The 12 μm uncooled VOx detector ensures high thermal analysis performance, ensuring continuous monitoring and timely detection of temperature changes.
✅ Thermal sensor:
The 12 μm uncooled VOx detector offers a NETD thermal sensitivity of ≤25 mK , enabling you to identify minute temperature changes and potential hazards in a timely manner.
✅ Artificial Intelligence:
AI functions integrate intrusion detection, line crossing, people and vehicle classification , smoke and fire detection, and hot and cold spot tracking for advanced security.

✅ Built-in dual microphone:
The two built-in microphones enable real-time ambient audio capture, improving event verification and overall security.
✅ Alarm:
Thanks to the 2 alarm inputs and 2 alarm outputs and the light signals with white light and red/blue LED , the system allows an immediate response to detected events.
✅ Network Camera:
It supports professional protocols such as ONVIF, RTSP, HTTPS, IPv4/IPv6 and Dahua SDK , ensuring maximum compatibility with advanced VMS software and video surveillance systems.
✅ PoE (Power over Ethernet):
802.3af PoE allows you to carry power and data over a single Ethernet cable, reducing installation costs and simplifying cabling.

Technical data sheet

TPC-BF1241-LB7F6-DW-S8-V1
Technical features
Dahua Eureka Series Hybrid IP Thermal Camera
Uncooled vanadium oxide thermal detector with 256 (H) × 192 (V) resolution, 12 µm pixel pitch and 8-14 µm spectral range
Thermal sensitivity (NETD) ≤25 mK@f/1.0
Lens 3.5 mm fixed thermal with F1.0 aperture
Thermal angle of view of H 24.0° and V 18.0°
Visible channel with 1/1.8" CMOS sensor and 4MP resolution 2688 × 1520
Lens Visible fixed 6mm with F1.6 aperture
Visible angle of view H 59.9° and V 34.7°
Minimum illumination 0.05 lux in color, 0.005 lux in B/W and 0 lux with IR on
IR with a range of up to 50 m
White light up to 30 m range
Auto Day/Night (ICR), color and B/W mode
Video stream
H.265, H.264, H.264H and MJPEG compression
Thermal resolution in main stream: 1280 × 960, 1024 × 768, 640 × 480 and 256 × 192
Thermal resolution in substream: 640 × 480 and 256 × 192
Visible resolution in main stream: 2688 × 1520, 1920 × 1080, 1280 × 720 and 704 × 576
Visible resolution in substream: 1280 × 720, 704 × 576 and 352 × 288
Thermal Stream 1: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 2 thermal: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 1 visible: 1-25 ips (50 Hz) and 1-30 ips (60 Hz)
Stream 2 visible: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Functionalities
Visible and thermal image fusion
Digital Detail Enhancement (DDE)
16-level digital zoom
Automatic and manual AGC
2D NR and 3D NR noise reduction
Auto, Manual, Indoor, Outdoor, Tracking, Street lamp and Natural White Balance
120 dB real WDR
BLC and HLC available
RoI not removable
Image rotation 0°, 90°, 180°, 270° and 270°
Local alarm prompts with white light and red and blue lights
Intelligent functions
Perimeter tripwire and intrusion protection
Heat (fire) detection and alarm
Human and vehicle classification
Smoke detection
Smoking detection
Call detection
Hot and cold spot tracking
Up to 16 detectable fire points
Audio
Dual built-in microphones
1 audio input and 1 audio output
G.711a, G.711mu, PCM and AAC compression
Storage
MicroSD card slot up to 256 GB (card not included)
Alarms
2 alarm inputs and 2 alarm outputs
Communication interface
RS-485 via 1 pair
Network
RJ-45 10/100 Base-T interface
Protocols HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP and 802.1x
ONVIF, CGI and Dahua SDK support
Up to 12 users
Security via authorized user and password, associated MAC, HTTPS, IEEE 802.1x and network access control
Power supply
12-24 VDC (±20%) and PoE 802.3af
Basic power consumption less than 5.3 W (DC) and 6.5 W (PoE)
Maximum power consumption less than 12 W (DC) and 11.5 W (PoE)
Environmental
Operating temperature -40 °C to +65 °C (-40 °C to +65 °C)
Storage temperature -40 °C to +70 °C (-40 °C to +70 °C)
Relative humidity ≤95%.
IP67 protection
Vandal-resistant housing IK10
Anti-corrosion coating with basic protection
Physical characteristics
Dimensions: 233 × 97.6 × 99.8 mm
Packaging dimensions: 337 × 146 × 136 mm
Net weight: ≤1.1 kg
Gross weight: ≤1.4 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
