Dahua 4MP Thermal IP PoE Camera with 2.6mm/2.8mm Lens and AI Fire Detection IP67

Dahua 4MP Thermal IP PoE Camera with 2.6mm/2.8mm Lens and AI Fire Detection IP67

 
Optic calculation
-56%

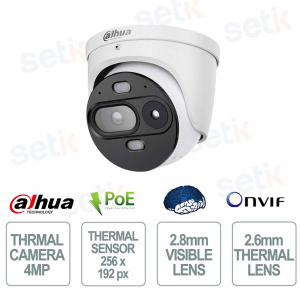

TPC-DF1241-LB2F2-DW-S8-V1 - is a thermal IP dome camera from the Eureka series designed for advanced video surveillance and early fire detection. It integrates a 256×192 px thermal sensor and a 4 MP (2688×1520) visible camera , with 2.6 mm thermal lens and 2.8 mm visible lens , ensuring a wide field of view and precise monitoring. The heat and flame detection , line crossing , intrusion , people and vehicle classification and smoke detection functions increase the level of security. Equipped with a dual integrated microphone , I/O alarms , recording on MicroSD up to 256 GB , IR illumination up to 26 m and PoE power supply, it represents a reliable solution for professional applications in outdoor environments thanks to IP67 protection. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-DF1241-LB2F2-DW-S8-V1

Marke: Dahua

EAN: 6937552428997

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-DF1241-LB2F2-DW-S8-V1 | POE THERMAL DOME IP CAMERA WITH 2.8mm FIXED LENS - 2.6mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua TPC-DF1241-LB2F2-DW-S8-V1 is a professional thermal IP dome camera from the Eureka series, ideal for advanced security and fire prevention applications. It combines a 256×192 px thermal sensor with a 4 MP visible camera , equipped with 2.6 mm thermal lens and 2.8 mm visible lens , for accurate monitoring in all conditions. Thanks to the heat and flame detection functions, people and vehicle classification , smoke detection , two-way audio with integrated dual microphone and IP67 protection, it offers high performance for intelligent video surveillance. It also supports PoE , MicroSD recording up to 256 GB and advanced AI features for perimeter protection.

Main specifications:

- Thermal resolution 256×192

- 4 MP optical camera (2688×1520)

- 2.6mm thermal optics

- Visible optics 2.8 mm

- Fire and heat detection

- AI for people and vehicles

- Built-in dual microphone

- MicroSD up to 256 GB

- PoE power supply

- IP67 protection

Further details

✅ Optics :
 The camera integrates a 2.8mm F1.65 visible lens with a wide 112.2° horizontal field of view , ideal for monitoring large areas with clear and detailed images in 4MP resolution, reducing blind spots and improving scene coverage.
✅ Thermal Optics :
 The 2.6mm F1.0 thermal optic offers a wide 66.5° field of view, allowing for precise detection of temperature changes, heat buildup and fire incipients even in total darkness.
✅ Resolution:
The combination of a 256×192 px thermal sensor and a 4 MP (2688×1520) optical sensor ensures advanced dual monitoring, combining thermal analysis and high-definition images for more effective security.
✅ Thermal sensor:
The uncooled vanadium (VOx) thermal detector with NETD sensitivity ≤25 mK ensures high accuracy in temperature measurement and detection of thermal anomalies, fires and overheating.
✅ Artificial Intelligence:
Advanced AI features include line crossing , intrusion detection , people and vehicle classification , smoke detection , flame detection , and hot and cold spot monitoring, reducing false alarms and improving perimeter security.

✅ Built-in dual microphone:
The built-in dual microphone allows for high-quality ambient audio recording, improving control of monitored areas and providing additional support for verification and security activities.
✅ Alarm:
Equipped with 2 alarm inputs and 2 alarm outputs , the camera can be integrated with sirens, sensors and external security systems, allowing immediate management of critical events and emergencies.
✅ Network Camera:
The 10/100 Mbps RJ45 Ethernet IP connectivity with support for ONVIF , HTTPS and IPv4/IPv6 protocols ensures perfect integration with NVRs, VMS and professional video surveillance infrastructures.
✅ PoE (Power over Ethernet):
802.3af PoE support allows the camera to be powered and connected via a single network cable, simplifying installation, reducing wiring costs, and improving system reliability.

Technical data sheet

TPC-DF1241-LB2F2-DW-S8-V1
Technical features
Hybrid IP thermal dome Dahua Eureka Series
Uncooled vanadium oxide focal plane thermal detector
1/1.8" visible CMOS sensor with progressive scan
256 x 192" thermal resolution
4 MP visible resolution with 2688 x 1520 maximum
12 µm thermal pitch
8 µm to 14 µm spectral range
Thermal sensitivity NETD ≤25 mK@f/1.0
Lens 2.6 mm thermal at F1.0
Lens 2.8 mm visible at F1.65
Thermal field of view of H: 66.5° / V: 50°
H visible field of view: 112.2° / V: 57.8°
Minimum thermal focusing distance of 0.3 m (0.3 ft)
Minimum visible focusing distance 0.3 m (0.3 ft)
Thermal DDE
16-level thermal digital zoom
Automatic ICR in visible channel
Minimum visible channel illumination of 0.05 lux in color, 0.005 lux in black and white and 0 lux with illumination on
IR illumination up to 26 m
Warm light up to 30 m
Automatic and manual illumination control
Video
H.265, H.264, H.264H and MJPEG compression
Stream 1 thermal: 1280 x 960 / 1024 x 768 / 640 x 480 / 256 x 192 up to 25 fps at 50 Hz and up to 30 fps at 60 Hz
Thermal Stream 2: 640 x 480 / 256 x 192 up to 25 fps at 50 Hz and up to 30 fps at 60 Hz
Stream 1 visible: 2688 x 1520 / 1920 x 1080 / 1280 x 720 / 704 x 576 up to 25 fps at 50 Hz and up to 30 fps at 60 Hz
Stream 2 visible: 1280 x 720 / 704 x 576 / 352 x 288 up to 25 fps at 50 Hz and up to 30 fps at 60 Hz
Region of interest not removable
Image rotation of 0°, 90°, 180° and 270°
Functionalities
Automatic and manual AGC in thermal and visible channel
2D NR and 3D NR noise reduction in thermal and visible channels
120 dB WDR
BLC and HLC
Automatic, manual, indoor, outdoor, tracking, street lamp and natural white balance
18 color palettes in the thermal channel
Visible and thermal fusion mode available and disabled by default
Temperature measurement range in low temperature mode from -20 °C to +150 °C
Maximum temperature accuracy of ±8 °C or ±8%
Working temperature for measurement from -20 °C to +50 °C
Heat and fire detection distance up to 25 m (82 ft)
Local audio with white, red and blue LEDs
Dual channel thermal and visible image
Up to 12 users
Browser support IE11 and later, Chrome 65 and later and Firefox 65 and later
ONVIF, CGI and Dahua SDK interoperability
Intelligent functions
General intelligence with line crossing and intrusion
Heat and fire detection with alarm
Hot and cold spot tracking
Human and vehicle classification
Smoke detection
Call detection
Tobacco detection
Audio
Built-in dual microphones
1 audio input
1 audio output
G.711a, G.711u, PCM, AAC and G.726 audio compression
Storage
MicroSD card slot up to 256 GB (card not included)
Alarms
2 alarm inputs
2 alarm outputs
Communication interface
RS-485 via 1 pair
Network
RJ45 10/100 Base-T network interface
Protocols HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP and 802.1x
Security via authorized user and password, linked MAC address, HTTPS, IEEE 802.1x and controlled network access
Power supply
12 VDC (±20%) to 24 VDC power supply
802.3af PoE
Basic power consumption less than 5.3 W at 12 VDC with illumination, speaker, red and blue light and power output off
Basic power consumption of 6.5 W for PoE without output function
Maximum power consumption less than 12 W at 12 VDC with illumination, speaker, red and blue light and power output on
Maximum power consumption of 11.5 W for PoE without output function
Power output of 12 VDC and <0.15 a="" when="" dc="" powered="" and="" the="" equipment="" supports="" this="" function="" td="">
No power output when powered by PoE
Environmental
Operating temperature -40 °C to +65 °C (-40 °C to +65 °C)
Storage temperature -40 °C to +70 °C (-40 °C to +70 °C)
Relative humidity ≤95%.
IP67 protection
Corrosion coating with 240 h neutral salt spray test
Basic corrosion protection level
Physical characteristics
Dimensions of 122 x 122 x 117.4 mm
Packaging dimensions: 155 x 155 x 135 mm
Net weight: ≤0.9 kg
Gross weight: ≤1 kg
Wall, ceiling or junction box mounting with optional accessories
