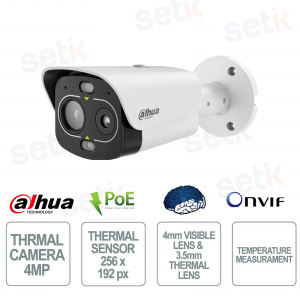

4MP Thermal Camera with Temperature Measurement, AI, 3.5mm/4mm Lens, PoE IP67 IK10 - Dahua

4MP Thermal Camera with Temperature Measurement, AI, 3.5mm/4mm Lens, PoE IP67 IK10 - Dahua

 
Optic calculation
-56%

TPC-BF1241-TB3F4-DW-S8-V1 - is a thermal IP bullet camera from the Eureka series designed for advanced video surveillance, fire prevention and temperature measurement. It integrates a 256×192 px VOx thermal sensor with a 4 MP (2688×1520) optical camera , equipped with a 3.5 mm thermal lens and 4 mm visible lens , for precise and reliable monitoring. Thanks to temperature measurement up to 650°C , the fusion of thermal and visible images , AI for intrusion, people, vehicles, smoke and fire detection and the integrated dual microphone , it guarantees high security performance. The solution is completed by recording on MicroSD up to 256 GB , PoE power supply, IP67 protection and IK10 vandal resistance. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-BF1241-TB3F4-DW-S8-V1

Marke: Dahua

EAN: 6937552429086

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-BF1241-TB3F4-DW-S8-V1 | POE THERMAL BULLET IP CAMERA WITH 4mm FIXED LENS - 3.5mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - IP67 & IK10


Dahua

The Dahua TPC-BF1241-TB3F4-DW-S8-V1 is a thermal IP bullet camera from the Eureka series designed for industrial monitoring, perimeter security and fire prevention. It combines a 256×192 px VOx thermal sensor with a 4 MP (2688×1520) optical camera , equipped with a 3.5 mm thermal lens and 4 mm visible lens , offering detailed images and precise thermal measurements. Thanks to temperature measurement up to 650°C , thermal and visible fusion , artificial intelligence for intrusion, people, vehicle, smoke and fire detection and the integrated dual microphone , it guarantees advanced control of critical areas. MicroSD up to 256 GB , PoE power supply, IP67 protection and IK10 vandal-proof certification complete the equipment.

Main specifications:

- Thermal sensor 256×192

- 4 MP optical camera

- 3.5mm thermal optics and 4mm visible optics

- Temperature measurement up to 650°C

- AI people and vehicles

- Fire and smoke detection

- Thermal and visible image fusion

- Built-in dual microphone

- MicroSD up to 256 GB

- PoE 802.3af

- IP67 and IK10

Further details

✅ Optics :
 The camera integrates a fixed 4mm F1.6 visible lens combined with a 4MP (2688×1520) sensor , offering clear and detailed images with a wide 88° field of view , ideal for monitoring sensitive areas and extended perimeters.
✅ Thermal Optics :
 The 3.5mm F1.0 thermal optics ensure accurate detection of temperature changes and thermal anomalies, with a 50.6° field of view , allowing continuous monitoring even in total absence of lighting.
✅ Resolution:
The combination of 256×192 px thermal resolution and 4 MP optical resolution allows the merging of thermal and visible images to obtain a complete view of the scene, improving the identification of people, vehicles and critical events.
✅ Thermal sensor:
The uncooled vanadium VOx sensor with NETD sensitivity ≤25 mK detects minute temperature differences, offering high performance for fire prevention, industrial control and perimeter security applications.
✅ Artificial Intelligence:
Advanced AI features enable intrusion detection, line crossing , people and vehicle classification , smoke detection , fire detection , hot and cold spot monitoring, and false alarm reduction for more reliable security.
✅ Temperature measurement:
The professional thermometry function allows measurements from -20°C to +650°C with accuracy up to ±2°C , supporting up to 21 simultaneous measurement points, lines and areas for advanced thermal control.

✅ Built-in dual microphone:
The integrated dual microphone enables high-quality ambient audio acquisition, improving event verification and providing additional support for video surveillance activities.
✅ Alarm:
Equipped with 2 alarm inputs and 2 alarm outputs , the camera can interface with sirens, sensors and external security systems, activating notifications and automatic actions in the event of abnormal events.
✅ Network Camera:
The 10/100 Mbps RJ45 interface with support for ONVIF, RTSP, HTTPS, IPv4/IPv6 protocols and Dahua SDK ensures perfect integration with NVR, VMS and professional video surveillance infrastructures.
✅ PoE (Power over Ethernet):
802.3af PoE support allows the camera to be powered and connected over a single Ethernet cable, simplifying installation, reducing wiring costs, and increasing the reliability of the entire system.

Technical data sheet

TPC-BF1241-LB3F4-DW-S8-V1
Technical features
Uncooled vanadium oxide thermal sensor with resolution 256 (H) × 192 (V), pixel pitch 12 µm and spectral range 8-14 µm
Thermal sensitivity (NETD) ≤25 mK@f/1.0
Lens 3.5 mm fixed thermal with F1.0 aperture
Thermal angle of view of H 50.6° and V 37.8°
Visible channel with 1/1.8" CMOS sensor and 4MP resolution 2688 × 1520
Lens Visible fixed 4mm with F1.6 aperture
Visible angle of view of H 88.0° and V 49.9°
Minimum thermal focusing distance of 0.5 m (0.5 ft.)
Minimum visible focusing distance of 1 m
Minimum illumination 0.05 lux in color, 0.005 lux in B/W and 0 lux with IR activated
IR with a range of up to 30 m
White light up to 30 m range
Auto Day/Night (ICR), color and B/W mode
Video stream
H.265, H.264, H.264H and MJPEG compression
Thermal resolution in main stream: 1280 × 960, 1024 × 768, 640 × 480 and 256 × 192
Thermal resolution in substream: 640 × 480 and 256 × 192
Visible resolution in main stream: 2688 × 1520, 1920 × 1080, 1280 × 720 and 704 × 576
Visible resolution in substream: 1280 × 720, 704 × 576 and 352 × 288
Thermal Stream 1: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 2 thermal: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 1 visible: 1-25 ips (50 Hz) and 1-30 ips (60 Hz)
Stream 2 visible: 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Functionalities
Visible and thermal image fusion
Digital Detail Enhancement (DDE)
16-level digital zoom
Automatic and manual AGC
2D NR and 3D NR noise reduction
Auto, Manual, Indoor, Outdoor, Tracking, Street lamp and Natural White Balance
120 dB real WDR
BLC and HLC available
RoI not removable
Image rotation 0°, 90°, 180°, 270° and 270°
Local alarm prompts with white light and red and blue lights
Temperature measurement in low-temperature mode from -20 °C to +150 °C
Temperature measurement in high-temperature mode from 100 °C to +650 °C
Maximum accuracy ±2 °C or ±2%
21 spots, 21 lines, 21 areas and up to 21 simultaneous rulers
Intelligent functions
Perimeter tripwire and intrusion protection
Heat (fire) detection and alarm
Human and vehicle classification
Smoke detection
Smoking detection
Call detection
Hot and cold spot tracking
Up to 16 detectable fire points
Audio
Dual built-in microphones
1 audio input and 1 audio output
G.711a, G.711u, PCM and AAC compression
Storage
MicroSD card slot up to 256 GB (card not included)
Alarms
2 alarm inputs and 2 alarm outputs
Communication interface
RS-485 via 1 pair
Network
RJ-45 10/100 Base-T interface
Protocols HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP and 802.1x
ONVIF, CGI and Dahua SDK support
Up to 12 users
Security via authorized user and password, associated MAC, HTTPS, IEEE 802.1x and network access control
Power supply
12-24 VDC (±20%) and PoE 802.3af
Basic power consumption less than 5.3 W (DC) and 6.5 W (PoE)
Maximum power consumption less than 12 W (DC) and 11.5 W (PoE)
Environmental
Operating temperature -40 °C to +65 °C (-40 °C to +65 °C)
Storage temperature -40 °C to +70 °C (-40 °C to +70 °C)
Relative humidity ≤95%.
IP67 protection
Vandal-resistant housing IK10
Physical characteristics
Dimensions: 233 × 97.6 × 99.8 mm
Packaging dimensions: 337 × 146 × 136 mm
Net weight: ≤1.1 kg
Gross weight: ≤1.4 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
