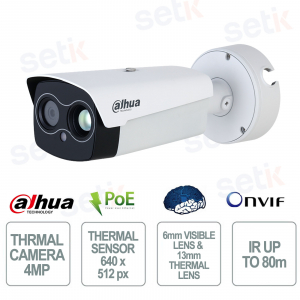

Dahua 4MP AI 13mm/6mm Thermal Camera with Fire Detection, PoE, IP67 and IK10

-56%

TPC-BF5641-B13F6-J-S5-V1 - is a professional thermal IP camera designed for advanced perimeter protection and early fire detection. It integrates a 640×512 px VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP (2688×1520) optical camera equipped with a 13 mm thermal lens and a 6 mm visible lens , offering detailed images and precise detection even in low visibility conditions. Thanks to the innovative Xinghan Large-Scale AI Model , it supports Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms. The equipment also includes two-way audio , integrated sound and light alarm , illumination up to 80 meters , PoE/ePoE support, IP67 protection, IK10 resistance and TPM 2.0 security module, ideal for critical infrastructures and industrial environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-BF5641-B13F6-J-S5-V1

Marke: Dahua

EAN: 6937552410787

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

INSTALLATEUR FINDEN

https://www.setik.biz/de/kameras/13089-dahua-tpc-bf5641-b13f6-j-s5-v1-dahua-4mp-ai-13mm6mm-thermal-camera-with-fire-detection-poe-ip67-and-ik10.html

7.195,80 €

16.354,10 € -56%

Steuern inbegriffen

EINLOGGEN UND DEN PREIS ENTDECKEN

Description Further Details Technical Sheet

TPC-BF5641-B13F6-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 6mm FIXED LENS - 13mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE DETECTION

The Dahua TPC-BF5641-B13F6-J-S5-V1 is a professional thermal IP camera designed for perimeter protection and early fire detection. It combines a highly sensitive 640×512 px VOx thermal sensor ( NETD ≤20 mK ) with a 4 MP (2688×1520) optical camera equipped with a 13 mm thermal lens and 6 mm visible lens , ensuring detailed images and precise monitoring even in critical environmental conditions. Thanks to the advanced AI Xinghan Large-Scale Model features, it supports Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms. The solution is completed by two-way audio , an integrated sound and light alarm , illumination up to 80 metres , PoE/ePoE support, IP67 protection, IK10 resistance and a TPM 2.0 security module for maximum operational reliability.

Main specifications:

- Thermal sensor 640×512

- 4 MP optical camera

- 13mm thermal optics and 6mm visible optics

- AI people and vehicles

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- PoE/ePoE

- IP67 and IK10

Further details

✅ Optics :
The camera integrates a 6mm F1.6 visible lens combined with a 4MP (2688×1520) CMOS sensor , offering high-definition images and a 55.3° field of view , ideal for precise monitoring of outdoor areas and professional perimeter protection.

✅ Thermal Optics :
The 13mm thermal optic with fixed focus technology provides a 32° × 25.7° field of view , allowing accurate detection of people, vehicles, heat sources and fires even in total darkness.

✅ Resolution:

The combination of a 640×512 px thermal sensor and a 4 MP optical camera allows for a detailed view of the scene with sharp images and perfect integration between the thermal and visible channels.

✅ Thermal sensor:

The uncooled VOx sensor with NETD sensitivity ≤20 mK is able to detect minimal temperature changes, ensuring high performance in fire prevention and continuous monitoring of sensitive areas.

✅ Artificial Intelligence:

The advanced Xinghan Large-Scale AI Model supports Heat Detection , Smoke Detection , Tripwire , Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms and improving operational efficiency.

✅ Functions:

The camera offers advanced features such as Fusion Mode , Picture in Picture (PIP) , Cold/Hot Spot Trace , 24x digital zoom , 18 thermal palettes , DDE detail enhancement and 2D/3D NR noise reduction for professional thermal analysis.

✅ Two-way audio:

Thanks to the Two-Way Audio function, with dedicated audio input and output , it is possible to communicate in real time with the monitored area, improving the management of security events.

✅ Sound alarm:

The integrated sound and light alarm system automatically activates acoustic signals and white light in the event of intrusion, smoke detection or thermal anomalies, increasing the system's deterrent capacity.

✅ Network Camera:

It supports professional protocols such as ONVIF , RTSP , HTTPS , IPv4/IPv6 , SNMP , FTP , SFTP and 802.1X , ensuring perfect integration with professional NVR and VMS platforms.

✅ Doors:

The equipment includes 10/100 Mbps RJ45 port , BNC CVBS video output , 2 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and RS-485 port , offering maximum flexibility of integration with external security systems.

✅ PoE:

802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing cabling costs, and increasing the reliability of your network infrastructure.

Technical data sheet

TPC-BF5641-B13F6-J-S5-V1
Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	640 (H) × 512 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤20 mK (@f/1.0)
Field of View	H: 32.0°: V: 25.7°
Thermal Focus Control	Fixed-focal
Close Focus Distance	4 m (13.12 ft)
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	24 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; Mirror
Color Palettes	18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP
Horizontal Definition	Center ≥ 1200 TVL Edge ≥ 900 TVL
Min. Illumination	Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB
White Balance	Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog	Electronic defog
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Fixed
Image Flip	180°; Mirror
Field of View	H: 55.3°; V: 30.0°
Close Focus Distance	2.5 m (8.20 ft)
Openings	F1.6
Illuminator On/Off Control	Auto; manual
Illumination Distance	80 m (262.47 ft)
Audio and Video
Video Compression	H.265; H.264M; H.264H; H.264B
Video Compression	Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate	Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM; AAC
Image Encoding Format	JPEG
Function
Two-way Audio	Yes
Sound and Light Alarm	Yes
Network Protocol	HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI)	Yes
Storage	FTP; Micro SD card (optional)
Interoperability	ONVIF; CGI; DaHua SDK
Browser	IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host	Up to 12 (total bandwidth: 64 MB)
Security	Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
User Management	Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection	Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode	Yes.
PIP	Yes
Micro SD Card (Max.)	512 GB
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
Perimeter Protection	Yes. Supports tripwire and intrusion
Target Distinction	Human/Vehicle Classification
Smoke Detection	Yes
Port
Analog Output	1 × CVBS output; BNC port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Alarm Linkage	Recordings on SD card; digital output; e-mail; snapshot
Alarm Event	No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	12-24 VDC (±10%), PoE (802.3af)
Power Consumption	Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE	Yes
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection	IP67
Product Dimensions	300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions	423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight	≤2.35 kg (5.18 lb)
Gross Weight	≤2.7 kg (5.95 lb)
Lens	Included
Reliability	Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV
Vandal-proof Rating	Enclosure: IK10
Anti-corrosion Level	Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications	THERE IS
