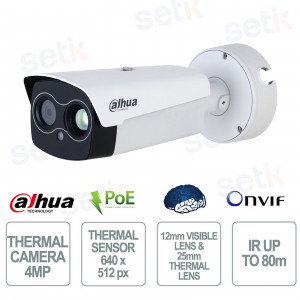

TPC-BF5641-B25F12-J-S5-V1 - is a hybrid thermal IP bullet camera designed for advanced perimeter protection and early fire detection in outdoor environments. It integrates a 640×512 px VOx thermal sensor with a 25 mm fixed thermal lens and a 4 MP visible camera with a 12 mm lens , offering detailed images and reliable monitoring even in low light conditions. Thanks to Xinghan Artificial Intelligence , it supports human/vehicle classification , intrusion detection, line crossing, smoke and heat detection, with integrated audible and light alarm . PoE connectivity, two-way audio, IP67/IK10 protection and the TPM 2.0 module for cybersecurity make it ideal for professional high-security applications. Dahua
INSTALLATEUR FINDEN
TPC-BF5641-B25F12-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 12mm FIXED LENS - 25mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE DETECTION
The Dahua TPC-BF5641-B25F12-J-S5-V1 is a hybrid IP thermal camera designed for professional perimeter protection and early fire detection. It combines a 640×512 VOx thermal sensor with a 4 MP optical camera, offering advanced analytics thanks to Xinghan Artificial Intelligence for people and vehicle recognition, intrusion detection, line crossing and smoke and heat source detection. Equipped with audible and light alarm , two-way audio , illumination up to 80 meters, PoE power supply and IP67 and IK10 protections, it guarantees high performance and maximum reliability even in the most challenging environments.
Main specifications:
- Thermal sensor 640×512
- 4 MP optical camera
- 25mm thermal optics and 12mm visible optics
- AI people and vehicles
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- PoE/ePoE
- IP67 and IK10
Further details
✅ Optics :
The camera integrates a 12mm visible lens with F1.7 aperture, designed to offer detailed and sharp images over medium and long distances, ensuring precise monitoring of sensitive areas and extended perimeters.
The camera integrates a 12mm visible lens with F1.7 aperture, designed to offer detailed and sharp images over medium and long distances, ensuring precise monitoring of sensitive areas and extended perimeters.
✅ Thermal Optics :
The 25mm fixed thermal optic provides high heat and fire detection capability, with optimized coverage for perimeter security and industrial monitoring applications.
The 25mm fixed thermal optic provides high heat and fire detection capability, with optimized coverage for perimeter security and industrial monitoring applications.
✅ Resolution:
The combination of a 640×512 px thermal sensor and a 4 MP optical camera allows for a detailed view of the scene with sharp images and perfect integration between the thermal and visible channels.
✅ Thermal sensor:
The 640 × 512 pixel uncooled VOx sensor with NETD sensitivity ≤20 mK enables the detection of minute temperature changes, improving the effectiveness of thermal anomalies and fire initiation detection.
✅ Artificial Intelligence:
Powered by the Xinghan Large-Scale AI model, the camera supports human/vehicle classification , advanced target filtering and false alarm reduction, ensuring more reliable and accurate video surveillance.
✅ Functions:
Includes fire detection , smoke detection , tripwire , intrusion , hot and cold spot tracking, Fusion mode and Picture in Picture (PIP) for advanced management of thermal and visible images.
✅ Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored area, improving the control and management of security events.
✅ Sound alarm:
The system integrates an intelligent acoustic and visual alarm that activates automatically in the event of critical events, increasing deterrent effectiveness and speed of intervention.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, IPv4/IPv6, SNMP and ONVIF protocols, it offers complete integration with professional video surveillance platforms and centralized management systems.
✅ Doors:
It has a 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input and output , RS-485 port and BNC analog video output, ensuring maximum connection flexibility.
✅ PoE:
802.3af PoE support allows the camera to be powered and connected over a single Ethernet cable, simplifying installation and reducing wiring time and costs.Technical data sheet
| TPC-BF5641-B25F12-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 17.6°: V: 14.1° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 15 m (49.21 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Field of View | H: 37.3°; V: 21.4° |
| Close Focus Distance | 7.4 m (24.28 ft) |
| Openings | F1.7 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes. |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
