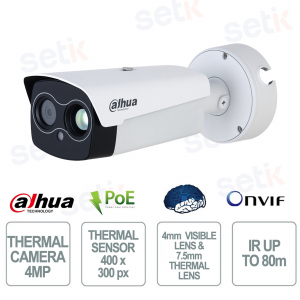

TPC-BF5441-B7F4-J-S5-V1 - is a hybrid IP thermal camera designed for perimeter protection and early fire detection in outdoor environments. Thanks to the 400×300 VOx thermal sensor with 7.5 mm thermal lens and the 4 MP visible camera with 4 mm lens , it offers reliable monitoring even in total darkness. Xinghan Artificial Intelligence supports fire, smoke, intrusion detection and human/vehicle classification , drastically reducing false alarms. The equipment also includes two-way audio , sound and light alarm , illumination up to 80 meters, PoE/ePoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cyber security. Dahua
INSTALLATEUR FINDEN
TPC-BF5441-B7F4-J-S5-V1 | POE THERMAL BULLET IP CAMERA 4mm FISA LENS - 7.5mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION
The Dahua TPC-BF5441-B7F4-J-S5-V1 is a hybrid thermal IP camera designed for perimeter protection and early fire detection in outdoor environments. Thanks to the 400×300 VOx thermal sensor with 7.5 mm thermal lens and the 4 MP visible camera with 4 mm lens , it guarantees reliable images and continuous monitoring even in low light conditions. Xinghan Artificial Intelligence supports fire, smoke, intrusion detection and human/vehicle classification , significantly reducing false alarms. The features include two-way audio , sound and light alarm , illumination up to 80 m, PoE/ePoE , IP67/IK10 protection and TPM 2.0 module for advanced cyber security.
Main specifications:
- 400 × 300 VOx thermal sensor
- Thermal optics: 7.5 mm
- Visible camera: 4 MP CMOS
- Visible optics: 4mm F1.6
- AI Xinghan: Man/Vehicle
- Smoke and fire detection
- Two-way audio
- Sound and light alarm
- Illumination: Up to 80 m
- Power: PoE 802.3af / ePoE
- IP67 and IK10
- Cybersecurity: TPM 2.0 integrated
Further details
✅ Optics :
The camera features a 4mm F1.6 visible lens , designed to provide a wide field of view and detailed images, ideal for monitoring entrances, perimeters, parking lots and medium-sized outdoor areas.
The camera features a 4mm F1.6 visible lens , designed to provide a wide field of view and detailed images, ideal for monitoring entrances, perimeters, parking lots and medium-sized outdoor areas.
✅ Thermal Optics :
The fixed 7.5 mm thermal optic ensures rapid detection of temperature changes and heat sources, proving particularly effective for perimeter protection and early fire detection.
The fixed 7.5 mm thermal optic ensures rapid detection of temperature changes and heat sources, proving particularly effective for perimeter protection and early fire detection.
✅ Resolution:
The combination of a 400 × 300 pixel thermal sensor and a 4 MP (2688 × 1520 pixel) optical camera allows you to obtain detailed images and accurate thermographic information for professional surveillance.
✅ Thermal sensor:
Equipped with a 12 μm uncooled VOx sensor and NETD sensitivity ≤20 mK , the camera is able to detect even minimal thermal variations, improving the effectiveness of monitoring anomalies and fire initiation.
✅ Artificial Intelligence:
The Xinghan Large-Scale AI Model system integrates intelligent human/vehicle classification , advanced target filtering and false alarm reduction, ensuring higher accuracy in security event management.
✅ Functions:
It supports fire detection , smoke detection , tripwire , intrusion , Cold/Hot Spot Trace , Fusion mode and Picture in Picture (PIP) , providing a comprehensive view of thermal and optical information in real time.
✅ Two-way audio:
The Two-Way Audio function enables direct communication between the operator and the monitored area, facilitating immediate interventions, control activities and remote deterrence.
✅ Sound alarm:
It integrates an acoustic and visual alarm system that can be automatically activated in the event of intrusions, fires, or other configured events, increasing the security of the protected area.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, RTP, IPv4/IPv6, SNMP, QoS, SFTP, 802.1X and ONVIF protocols, it ensures perfect integration with NVR, VMS software and professional IP video surveillance platforms.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input , audio output , RS-485 port and BNC analog video output, offering wide connection and integration possibilities.
✅ PoE:
802.3af and ePoE PoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing cabling costs and time.Technical data sheet
| TPC-BF5441-B7F4-J-S5-V1 | |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 400 (H) × 300 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤20 mK (@f/1.0) |
| Field of View | H: 51.8°; V: 38.8° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition |
Center ≥ 1200 TVL |
| Min. Illumination | Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB |
| White Balance | Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Manual/Auto |
| Image Flip | 180°; Mirror |
| Field of View | H: 87.0°; V: 47.3° |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Openings | F1.6 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B |
| Video Compression | Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default) |
| Video Frame Rate | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM; AAC |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Region of Interest (RoI) | Yes |
| Storage | FTP; Micro SD card (optional) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier |
| User/Host | Up to 12 (total bandwidth: 64 MB) |
| Security | Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Fusion Mode | Yes |
| PIP | Yes |
| Micro SD Card (Max.) | 512 GB |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes (by pixel) |
| Port | |
| Analog Output | 1 × CVBS output; BNC port |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Recordings on SD card; digital output; e-mail; snapshot |
| Alarm Event | No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12-24 VDC (±10%), PoE (802.3af) |
| Power Consumption | Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 |
| Product Dimensions | 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H) |
| Packaging Dimensions | 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Lens | Included |
| Reliability | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Vandal-proof Rating | Enclosure: IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Certification | |
| Certifications | THERE IS |
