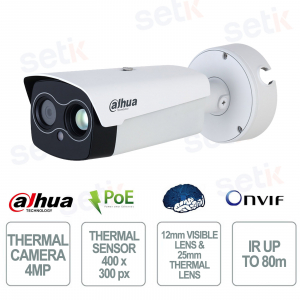

TPC-BF5441-TB25F12-J-S5-V1 4MP AI Thermal Camera 25mm and 12mm Lens IP67 IK10 - Dahua

TPC-BF5441-TB25F12-J-S5-V1 4MP AI Thermal Camera 25mm and 12mm Lens IP67 IK10 - Dahua

 
Optic calculation
-56%

TPC-BF5441-TB25F12-J-S5-V1 - is a professional bispectral thermal camera designed for long-distance perimeter protection and early fire detection. Equipped with a 400×300 VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP CMOS optical sensor , it guarantees reliable and detailed images in any environmental conditions. The combination of 25 mm thermal lens and 12 mm visible lens provides excellent performance in detecting people, vehicles and thermal anomalies over large areas. The advanced Xinghan AI features support human/vehicle classification, smoke detection, tripwire and intrusion detection, while two-way audio , sound and light alarm , PoE/ePoE support, IP67 protection and IK10 resistance ensure maximum reliability for professional security applications. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-BF5441-TB25F12-J-S5-V1

Marke: Dahua

EAN: 6937552410602

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-BF5441-TB25F12-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 12mm FIXED LENS - 25mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION


Dahua

The Dahua TPC-BF5441-TB25F12-J-S5-V1 is a professional bispectral thermal camera designed for advanced perimeter protection and early fire detection. Thanks to the 400×300 VOx thermal sensor with NETD sensitivity ≤20 mK and the 4 MP CMOS optical sensor , it offers reliable and detailed images in any environmental conditions. The combination of 25 mm thermal lens and 12 mm visible lens ensures high detection and identification capabilities over long distances. The advanced Xinghan Artificial Intelligence functions allow human/vehicle classification, smoke detection, intrusion and line crossing, while two-way audio , sound and light alarm , PoE/ePoE support, IP67 protection and IK10 resistance ensure maximum reliability in professional security applications.

Main specifications:

- 400 × 300 VOx thermal sensor

- Thermal optics: 25 mm

- Visible camera: 4 MP CMOS

- Visible optics: 12 mm F1.7

- AI Xinghan: Man/Vehicle

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- Illumination: Up to 80 m

- PoE, IP67 and IK10

Further details

✅ Optics :
 The 12mm visible lens provides an optimized field of view for medium to long-range monitoring, enabling greater accuracy in identifying people, vehicles and critical scene details.
✅ Thermal Optics :
 The 25mm thermal optic ensures high performance in detecting people, vehicles and thermal anomalies over long distances, improving the effectiveness of security and fire prevention activities.
✅ Resolution:
Thanks to the 4 MP optical sensor with 2688×1520 resolution , the camera produces clear and detailed images, useful for identifying and verifying security events.
✅ Thermal sensor:
The uncooled 400×300 VOx sensor with NETD sensitivity ≤20 mK detects even minute temperature changes, ensuring reliable performance in any environmental condition.
✅ Artificial Intelligence:
The advanced Xinghan Large-Scale AI model improves the accuracy of video analytics, reducing false alarms and supporting intelligent classification of people and vehicles .
✅ Functions:
It integrates fire detection , smoke detection , hot and cold spot tracking , tripwire , intrusion detection , Fusion mode and Picture in Picture (PIP) for advanced security management.

✅ Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored area, allowing for immediate intervention, voice alerts and remote deterrence activities.
✅ Sound alarm:
The integrated audible and visual alarm triggers immediate alerts in the event of critical events, increasing deterrence and response speed.
✅ Network Camera:
Compatible with ONVIF, HTTPS, RTSP, IPv4/IPv6 and SFTP protocols, it easily integrates with VMS software and professional video surveillance infrastructures.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input and output , CVBS video output and RS-485 port for maximum integration flexibility.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, wiring, and maintenance.

Technical data sheet

TPC-BF5441-TB25F12-J-S5-V1
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤20 mK (@f/1.0)
Field of View H: 10.9°; V: 8.2°
Thermal Focus Control Fixed-focal
Close Focus Distance 15 m (49.21 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 24 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°; Mirror
Field of View H: 37.3°; V: 21.4°
Close Focus Distance 7.4 m (24.28 ft)
Openings F1.7
Illuminator On/Off Control Auto; manual
Illumination Distance 80 m (262.47 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default);
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default);
Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711mu; PCM; AAC
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage FTP; Micro SD card (optional)
Interoperability ONVIF; CGI; DaHua SDK
Browser IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host Up to 12 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC
address; HTTPS; IEEE 802.1x; controlled network access
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode Yes
PIP Yes
Micro SD Card (Max.) 512 GB
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Smoke Detection Yes (by pixel)
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Alarm Linkage Recordings on SD card; digital output; e-mail; snapshot
Alarm Event No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12-24 VDC (±10%), PoE (802.3af)
Power Consumption Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE Yes
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP67
Product Dimensions 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight ≤2.35 kg (5.18 lb)
Gross Weight ≤2.7 kg (5.95 lb)
Lens Included
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Vandal-proof Rating Enclosure: IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
