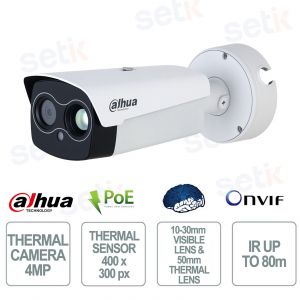

TPC-BF5441-TB50Z3-J-S5-V1 4MP AI Thermal Camera 50mm Lens 10-30mm Zoom IP67 IK10 - Dahua

-56%

TPC-BF5441-TB50Z3-J-S5-V1 - is a professional bispectral thermal camera designed for ultra-long-range perimeter protection and early fire detection. Equipped with a 400×300 VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP CMOS optical sensor , it guarantees clear images and reliable analysis in any environmental conditions. The combination of a 50 mm thermal lens and a 10-30 mm motorized visible lens with 3x optical zoom offers exceptional detection, recognition and identification capabilities over long distances. The advanced Xinghan Artificial Intelligence functions support human/vehicle classification, smoke detection, intrusion and line crossing with false alarm reduction. The solution is completed by two-way audio , sound and light alarm , illumination up to 80 m , PoE/ePoE support, IP67 protection and IK10 resistance, ideal for professional high-security applications. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-BF5441-TB50Z3-J-S5-V1

Marke: Dahua

EAN: 6937552410626

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

INSTALLATEUR FINDEN

https://www.setik.biz/de/kameras/13112-dahua-tpc-bf5441-tb50z3-j-s5-v1-tpc-bf5441-tb50z3-j-s5-v1-4mp-ai-thermal-camera-50mm-lens-10-30mm-zoom-ip67-ik10-dahua.html

7.023,49 €

15.962,48 € -56%

Steuern inbegriffen

EINLOGGEN UND DEN PREIS ENTDECKEN

Description Further Details Technical Sheet

TPC-BF5441-TB50Z3-J-S5-V1 | POE THERMAL BULLET IP CAMERA 10-30mm VARIFOCAL LENS - 50mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION

The Dahua TPC-BF5441-TB50Z3-J-S5-V1 is a professional bispectral thermal camera designed for ultra-long-range perimeter protection and early fire detection. Thanks to the 400×300 VOx thermal sensor with NETD sensitivity ≤20 mK and the 4 MP CMOS optical sensor , it guarantees precise and reliable images in any environmental conditions. The combination of 50 mm thermal lens and 10-30 mm motorized visible lens with 3x optical zoom offers excellent performance for the detection, recognition and identification of people and vehicles over long distances. The advanced Xinghan Artificial Intelligence features allow human/vehicle classification, smoke detection, intrusion and line crossing with false alarm reduction. The equipment also includes two-way audio , audible and light alarm , illumination up to 80 m , PoE/ePoE support, IP67 protection and IK10 resistance for professional high-security applications.

Main specifications:

- 400 × 300 VOx thermal sensor

- Thermal optics: 50 mm

- Visible camera: 4 MP CMOS

- Visible optics: 10-30 mm F1.7

- AI Xinghan: Man/Vehicle

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- Illumination: Up to 80 m

- PoE, IP67 and IK10

Further details

✅ Optics :
The 10-30mm motorized visible lens with 3x optical zoom offers maximum operational flexibility, allowing you to adapt the framing to different monitoring needs and obtain detailed images even at long distances.

✅ Thermal Optics :
The 50mm thermal optic is designed for ultra-long range applications, providing superior detection capabilities of people, vehicles and thermal anomalies even over large perimeter areas.

✅ Resolution:

Thanks to the 4 MP optical sensor with 2688×1520 resolution , the camera produces clear and detailed images, useful for identifying and verifying security events.

✅ Thermal sensor:

The uncooled 400×300 VOx sensor with NETD sensitivity ≤20 mK detects even minute temperature changes, ensuring reliable performance in any environmental condition.

✅ Artificial Intelligence:

The advanced Xinghan Large-Scale AI model improves the accuracy of video analytics, reducing false alarms and supporting intelligent classification of people and vehicles .

✅ Functions:

It integrates fire detection , smoke detection , hot and cold spot tracking , tripwire , intrusion detection , Fusion mode and Picture in Picture (PIP) for advanced security management.

✅ Two-way audio:

The Two-Way Audio function enables real-time communication between the operator and the monitored area, allowing for immediate intervention, voice alerts and remote deterrence activities.

✅ Sound alarm:

The integrated audible and visual alarm triggers immediate alerts in the event of critical events, increasing deterrence and response speed.

✅ Network Camera:

Compatible with ONVIF, HTTPS, RTSP, IPv4/IPv6 and SFTP protocols, it easily integrates with VMS software and professional video surveillance infrastructures.

✅ Doors:

It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input and output , CVBS video output and RS-485 port for maximum integration flexibility.

✅ PoE:

802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, wiring, and maintenance.

Technical data sheet

TPC-BF5441-TB50Z3-J-S5-V1
Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	400 (H) × 300 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤20 mK (@f/1.0)
Field of View	H: 5.5°; V: 4.1°
Thermal Focus Control	Fixed-focal
Close Focus Distance	55 m (180.45 ft)
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	24 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; Mirror
Color Palettes	18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP
Horizontal Definition	Center ≥ 1200 TVL Edge ≥ 900 TVL
Min. Illumination	Color: 0.01 lux Black & white: 0.001 lux 0 lux (white light on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB
White Balance	Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog	Electronic defog
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	DWDR
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Manual/Auto
Image Flip	180°; Mirror
Field of View	H: 42°–15°;V: 22.8°–8.4°
Close Focus Distance	9 m (29.53 ft)
Openings	F1.7
Illuminator On/Off Control	Auto; manual
Illumination Distance	80 m (262.47 ft)
Audio and Video
Video Compression	H.265; H.264M; H.264H; H.264B
Video Compression	Thermal: Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default); Sub stream: 640 × 512; 320×256; 640 × 512 (default) Visible: Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default); Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate	Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM; AAC
Image Encoding Format	JPEG
Function
Two-way Audio	Yes
Sound and Light Alarm	Yes
Network Protocol	HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI)	Yes
Storage	FTP; Micro SD card (optional)
Interoperability	ONVIF; CGI; DaHua SDK
Browser	IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host	Up to 12 (total bandwidth: 64 MB)
Security	Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access
User Management	Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection	Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode	Yes
PIP	Yes
Micro SD Card (Max.)	512 GB
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
Perimeter Protection	Yes. Supports tripwire and intrusion
Target Distinction	Human/Vehicle Classification
Smoke Detection	Yes (by pixel)
Port
Analog Output	1 × CVBS output; BNC port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Alarm Linkage	Recordings on SD card; digital output; e-mail; snapshot
Alarm Event	No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	12-24 VDC (±10%), PoE (802.3af)
Power Consumption	Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE	Yes
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection	IP67
Product Dimensions	300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions	423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight	≤2.35 kg (5.18 lb)
Gross Weight	≤2.7 kg (5.95 lb)
Lens	Included
Reliability	Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV
Vandal-proof Rating	Enclosure: IK10
Anti-corrosion Level	Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications	THERE IS
