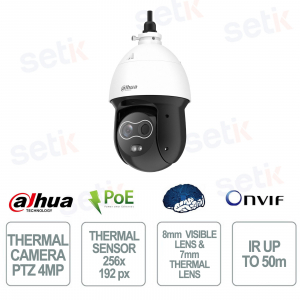

TPC-SD2241-TB7F8-DW-S2 - is a bispectral thermal Speed Dome camera designed for advanced perimeter protection and professional thermal monitoring. Equipped with a 256×192 VOx thermal sensor with NETD sensitivity ≤40 mK and a 4 MP CMOS optical sensor , it guarantees reliable and detailed images in any environmental conditions. The combination of 7 mm thermal lens and 8 mm visible lens offers superior performance in the detection, recognition and monitoring of people, vehicles and thermal anomalies over medium and long distances. The advanced Artificial Intelligence functions support human/vehicle classification, heat, smoke, intrusion and line crossing detection, while 360° PTZ , thermal and visible image fusion , two-way audio , sound and light alarm , PoE+ support and IP66 protection make this solution ideal for professional security applications. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SD2241-TB7F8-DW-S2

Marke: Dahua

EAN: 6923172535788

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-SD2241-TB7F8-DW-S2 | POE PTZ THERMAL IP CAMERA WITH 8mm FIXED LENS - 7mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - HEAT AND SMOKE DETECTION


Dahua

The Dahua TPC-SD2241-TB7F8-DW-S2 is a bispectral thermal speed dome camera designed for advanced perimeter protection and intelligent threat detection. Thanks to the 256×192 VOx thermal sensor with NETD sensitivity ≤40 mK and the 4 MP CMOS optical sensor , it ensures reliable and detailed images in any lighting conditions. The combination of 7 mm thermal lens and 8 mm visible lens ensures excellent detection, recognition and identification performance over medium and long distances. Advanced Artificial Intelligence functions include human/vehicle classification, heat, smoke, intrusion and line crossing detection, while 360° PTZ , two-way audio , sound and light alarm , thermal and visible image fusion technology, PoE+ support and IP66 protection complete a professional solution for perimeter security.

Main specifications:

- 256 × 192 VOx thermal sensor

- 4 MP CMOS optical sensor

- 7mm thermal optics

- Visible optics 8 mm

- Continuous 360° PTZ

- AI: Human/Vehicle

- Heat and smoke detection

- Two-way audio

- Sound and light alarm

- PoE+ and IP66

Further details

✅ Optics :
 The 8mm visible lens offers an excellent balance between coverage and detail, with a 33.4° field of view , ideal for monitoring perimeter areas, entrances and sensitive areas at medium distances.
✅ Thermal Optics :
 The 7mm thermal optic significantly increases the detection and recognition capabilities of heat sources, proving particularly effective for perimeter protection and fire prevention.
✅ Resolution:
The 4 MP optical sensor with a resolution of up to 2336×1752 pixels ensures sharp and detailed images, allowing for accurate visual verification of detected events.
✅ Thermal sensor:
The 256×192 uncooled VOx sensor with NETD sensitivity ≤40 mK detects minute temperature differences, ensuring continuous monitoring even in total darkness, fog or smoke.
✅ PTZ Camera:
The motorized PTZ system supports continuous 360° Pan rotation and Tilt tilt from -15° to +90° , with up to 300 presets , allowing complete coverage of the monitored area and quick movements to points of interest.
✅ Artificial Intelligence:
Advanced AI Analytics features enable intelligent classification of people and vehicles , improving system accuracy and significantly reducing false alarms.
✅ Functions:
It integrates Heat Detection , Cold/Hot Spot Trace , Tripwire , Intrusion Detection , Smoking Detection , Call Detection , Fusion Mode and PIP , providing complete control of security and thermal anomalies.

✅ Two-way audio:
The Two-Way Audio function enables real-time voice communication between the operator and the monitored area, facilitating remote management of events and emergencies.
✅ Sound alarm:
The integrated light and sound alarm allows you to immediately report intrusions, crossing protected areas or other risky conditions, increasing the deterrent effect.
✅ Network Camera:
Compatible with professional protocols such as ONVIF, RTSP, HTTPS, IPv4/IPv6, SNMP, QoS and NTP , it guarantees perfect integration with VMS software and advanced video surveillance systems.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 1 alarm output , audio input and output , BNC CVBS video output and RS-485 port , offering wide connection possibilities with external devices.
✅ PoE:
PoE+ (802.3at) support allows the camera to be powered and transmitted data over a single Ethernet cable, simplifying installation and reducing wiring costs and time.

Technical data sheet

TPC-SD2241-TB7F8-DW-S2
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 256 (H) × 192 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤40 mK (@f/1.0)
Focal Length 7 mm
Field of View H: 24°; V: 18°
Thermal Focus Control Fixed-focal
Close Focus Distance 1 m (3.28 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 16 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.7" CMOS
Max. Resolution 2336 (H) × 1752 (V)
Pixel 4 MP
Horizontal Definition

≥1600 TVL
Min. Illumination Color: 0.05 lux
Black & white: 0.005 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Focal Length 8mm
Field of View H: 33.4°; V: 25°
Close Focus Distance 2.5 m (8.20 ft)
Openings F2.0
Illuminator On/Off Control Auto; manual
Illumination Distance 50 m (164.04 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression
