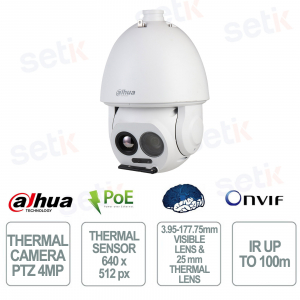

TPC-SD5641-TB25Z45 4MP AI PTZ Thermal Camera 45x Zoom IP66 - Dahua

TPC-SD5641-TB25Z45 4MP AI PTZ Thermal Camera 45x Zoom IP66 - Dahua

 
Optic calculation
-56%

TPC-SD5641-TB25Z45 - is a professional PTZ thermal camera designed for advanced perimeter protection and critical infrastructure monitoring. It integrates a 640×512 VOx thermal sensor with 25mm thermal lens and a 4MP visible camera with 45x optical zoom and 3.95-177.75mm lens, offering detailed images and long-distance detection capabilities. Artificial Intelligence functions include intrusion detection, tripwire, human/vehicle classification, heat source detection and automatic target tracking. Thanks to the fusion of thermal and visible images , two-way audio , IR illumination up to 100m , Hi-PoE support and IP66 protection, it guarantees reliable and continuous performance even in the most challenging environments. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SD5641-TB25Z45

Marke: Dahua

EAN: 6923172592934

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TPC-SD5641-TB25Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 25mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - HEAT DETECTION AND TRACKING


Dahua

The Dahua TPC-SD5641-TB25Z45 is a professional PTZ thermal camera designed for advanced perimeter protection and monitoring of sensitive areas. It combines a 640×512 VOx thermal sensor with a 25 mm thermal lens and a 4 MP visible camera with 45x optical zoom and a 3.95-177.75 mm lens, ensuring detailed images and precise long-distance detection. Advanced AI functions include intrusion detection, tripwire, human/vehicle classification, heat source detection and automatic target tracking. Thermal and visible image fusion , two-way audio , IR illumination up to 100 m , Hi-PoE support and IP66 certification ensure high performance and continuous reliability even in the most challenging environmental conditions.

Main specifications:

- 640×512 VOx thermal sensor

- 4 MP CMOS optical sensor

- 25mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- AI with human/vehicle classification

- Heat, intrusion and tripwire detection

- Thermal and visible image fusion

- Two-way audio

- IR illumination 100m

- IP66 protection and Hi-PoE power supply

Further details

✅ Optics :
 The camera integrates a 3.95-177.75 mm visible lens with a powerful 45x optical zoom , ideal for detailed monitoring of large areas and identification of subjects and vehicles even at long distances.
✅ Thermal Optics :
 The 25mm thermal optic offers high performance in detecting heat sources and thermal anomalies, allowing effective surveillance even in total darkness, fog, smoke or adverse weather conditions.
✅ Resolution:
The visible camera offers a resolution of up to 4 MP (2688×1520) , while the thermal channel reaches 640×512 pixels , ensuring sharp images and accurate thermal information.
✅ Thermal sensor:
The uncooled VOx (Vanadium Oxide) sensor with NETD sensitivity ≤35 mK ensures high accuracy in detecting temperature differences and thermal anomalies.
✅ PTZ Camera:
The motorized PTZ system supports 360° continuous rotation, -10° to +90° tilt, up to 200 presets , automatic tours and intelligent tracking for dynamic and professional coverage of large areas.
✅ Artificial Intelligence:
Advanced AI functions enable human/vehicle classification , vessel detection, heat source recognition and intelligent monitoring of critical events.
✅ Functions:
Includes thermal and visible image fusion , intrusion detection, tripwire , automatic target tracking, hot and cold spot detection, and electronic image stabilization for high performance in any operational scenario.

✅ Two-way audio:
Two-Way Audio support enables real-time communications through dedicated audio inputs and outputs, enhancing interaction and security event management.
✅ Network Camera:
It supports H.265/H.264 compression, advanced network protocols, ONVIF compatibility, MicroSD storage up to 512GB and secure remote access for professional video surveillance management.
✅ Doors:
It has RJ-45 port , 7 alarm inputs , 2 alarm outputs , audio input and output , CVBS video output and RS-485 port , ensuring high flexibility of integration with external devices.
✅ PoE:
Hi-PoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing infrastructure costs, and increasing system reliability.

Technical data sheet

TPC-SD5641-TB25Z45
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤35 mK (@f/1.0)
Focal Length 25 mm
Field of View H: 18.6°; V: 14.8°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL
Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°
Exposure Compensation Yes
Visible Focus Control Manual
Focal Length 3.95 mm–177.75 mm
Field of View H: 67.5°–1.9°
V: 39.4°–1.1°
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream:2688×1520 (optional); 2560 × 1440; 1080p (1920 × 1080); 1280×720; 704×576; 2560 × 1440 (default)
Sub stream: 1920×1080; 1280×720; 704×576
Video Frame Rate Thermal:
50 Hz: (main stream) 1 fps–50 fps adjustable, 50 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–60 fps adjustable, 60 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu
Image Encoding Format JPEG
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –10° to +90°
Manual Speed Control Pan: 0.1°/s –200°/s
Tilt: 0.1°/s –120°/s
Preset Speed Pan: 240°/s
Tilt: 200°/s
Presets

200
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 2
Power-off Memory Yes
Privacy Masking 4 areas in the same view
Idle Motion Presets; car patterns; car tours; Pan; progressive scan
Function
Two-way Audio Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage Micro SD card
Micro SD Card (Max.) 512 GB
Interoperability ONVIF; CGI; Dahua SDK
Browser IE: IE 8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier
User/Host Up to 20 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 10 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
PIP Yes (Intelligence automatically turns off when PIP is on)
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
IVS (Perimeter Protection) Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Target Tracking Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 7
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 36 VDC ± 50%, Hi-PoE
Power Consumption Basic: ≤21W (36VDC); 16W (PoE)
Max: ≤40W (36VDC); 41W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP66
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Structure
Product Dimensions Φ240mm × 382mm (Φ9.45" × 15.04")
Packaging Dimensions 319 mm × 319 mm × 521 mm (12.56" × 12.56" × 20.51") (L × W × H)
Net Weight ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
