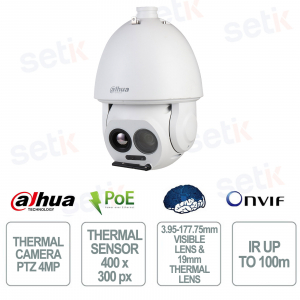

TPC-SD5441-B19Z45 PTZ Thermal Camera 4MP AI Zoom 45x IP66 - Dahua

TPC-SD5441-B19Z45 PTZ Thermal Camera 4MP AI Zoom 45x IP66 - Dahua
-56%

TPC-SD5441-B19Z45 - is a professional PTZ thermal camera designed for intelligent perimeter protection and advanced monitoring of sensitive areas. It combines a 400×300 VOx thermal sensor with a 19 mm thermal lens and a 4 MP visible camera equipped with 45x optical zoom and a 3.95-177.75 mm lens, ensuring detailed images and precise detection even at long distances. Advanced Artificial Intelligence functions include smoke detection, heat detection, tripwire, intrusion, human/vehicle classification, boat detection and automatic target tracking. Thanks to two-way audio , IR illumination up to 100 m , Hi-PoE support and IP66 certification, it offers reliable performance for professional security and surveillance applications in any environmental conditions. Dahua

Technical Data Sheet

Artikel-Nr.: TPC-SD5441-B19Z45

Marke: Dahua

EAN: 6923172594273

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TPC-SD5441-B19Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 19mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - SMOKE AND HEAT DETECTION


Dahua

The Dahua TPC-SD5441-B19Z45 is a professional PTZ thermal camera designed for intelligent perimeter protection and advanced monitoring of sensitive areas. It integrates a 400×300 VOx thermal sensor with a 19 mm thermal lens and a 4 MP visible camera equipped with 45x optical zoom and a 3.95-177.75 mm lens, ensuring detailed images and reliable performance even in difficult environmental conditions. Advanced Artificial Intelligence functions include smoke detection, heat detection, tripwire, intrusion, human/vehicle classification, boat detection and automatic target tracking. Thanks to two-way audio , IR illumination up to 100 m , Hi-PoE support and IP66 protection, it represents an ideal solution for professional video surveillance and security applications.

Main specifications:

- 400×300 VOx thermal sensor

- 4 MP CMOS optical sensor

- 19mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- AI with human/vehicle classification

- Smoke and heat detection

- Automatic target tracking

- Two-way audio

- IR illumination 100m

- IP66 protection and Hi-PoE power supply

Further details

Optics :
The camera integrates a 3.95-177.75 mm visible lens with a powerful 45x optical zoom , ideal for detailed monitoring of large areas and identification of subjects and vehicles even at long distances.
Thermal Optics :
The 19mm thermal optic offers an excellent balance between wide coverage and detection distance, enabling advanced thermal monitoring and anomaly detection even in total darkness.
Resolution:
The combination of the 400×300 pixel thermal sensor and the 4 MP (2688×1520) visible camera ensures detailed images and reliable thermal information for professional security applications.
Thermal sensor:
The uncooled VOx (Vanadium Oxide) sensor with NETD sensitivity <35 mk="" strong=""> detects minute temperature changes, improving the ability to detect intrusions, thermal anomalies and fire incipients.
PTZ Camera:
PTZ Speed Dome technology supports 360° continuous rotation, -10° to +90° tilt, up to 300 presets , automatic tours and programmable patterns for complete coverage of the monitored area.
Artificial Intelligence:
Advanced AI features include human/vehicle classification , vessel detection, smoke detection, heat detection, and intelligent event analysis to reduce false alarms.
Functions:
The camera supports Heat Detection , Smoke Detection , Cold/Hot Spot Trace , Intrusion Detection, Tripwire , Automatic Target Tracking, Electronic Image Stabilization ( EIS ) and advanced Region of Interest ( ROI ) management.

Two-way audio:
Two-Way Audio support enables real-time communications through dedicated audio inputs and outputs, enhancing interaction and security event management.
Network Camera:
Compatible with ONVIF , CGI and Dahua SDK protocols, it supports H.265/H.264 compression, secure remote access, MicroSD recording up to 512 GB and integration with professional IP video surveillance platforms.
Doors:
It features 10/100 Base-T RJ-45 port , 7 alarm inputs , 2 alarm outputs , audio input , audio output , BNC CVBS video output and RS-485 port , offering maximum integration flexibility.
PoE:
Hi-PoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing network infrastructure time and costs.

Technical data sheet

TPC-SD5441-B19Z45
General
Appearance Thermal Network Hybrid Speed Dome Camera
Type Security
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) <35 mk="" f="" 1="" 0="" 25="" hz="" 300="" k="" td="">
Focal Length 19 mm
Field of View H: 14.5° ; V: 10.9°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control DC Auto
Exposure Compensation Yes
Visible Focus Control Auto/Semi-auto/Manual
Focal Length 3.95 mm–177.75 mm
Zoom Speed <7 s
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Optical Zoom 45×
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
